DMT6017LFDF
65V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
Features and Benefits
BVDSS
RDS(ON) Max
65V
18mΩ @ VGS = 10V
23mΩ @ VGS = 4.5V
ID Max
TA = +25°C
8.1A
7.1A
100% Unclamped Inductive Switching (UIS) Test in Production—
Ensures More Reliable and Robust End Application
0.6mm Profile—Ideal for Low Profile Applications
PCB Footprint of 4mm2
Low On-Resistance
ESD Protected Gate
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. "Green" Device (Note 3)
Mechanical Data
Description and Applications
This new generation MOSFET is designed to minimize the on-state
resistance (RDS(ON)) yet maintain superior switching performance,
making it ideal for high-efficiency power management applications.
DC-DC Converter
Adaptor Switch
Wireless Charging

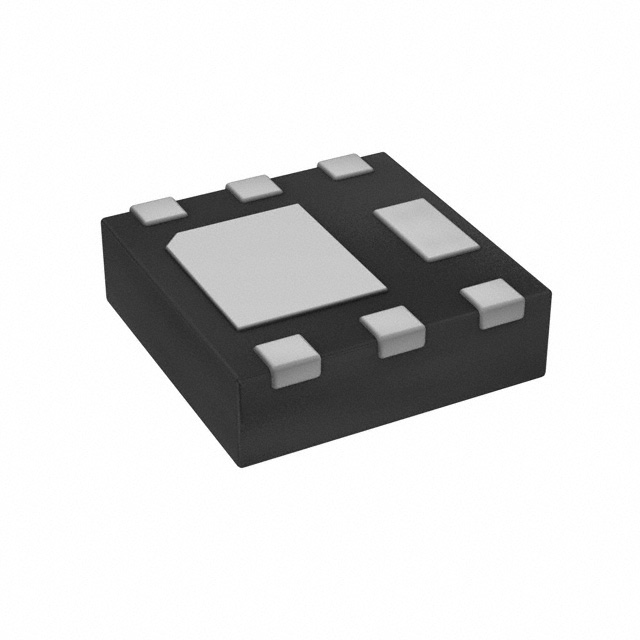

Case: U-DFN2020-6
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish—NiPdAu over Copper Leadframe.
Solderable per MIL-STD-202, Method 208 e4
Weight: 0.007 grams (Approximate)
D
U-DFN2020-6 (Type F)
G
Pin1
ESD PROTECTED
Gate Protection
Diode
Top View
Pin Out
Bottom View
Bottom View
S
Internal Schematic
Ordering Information (Note 4)
Part Number
DMT6017LFDF-7
DMT6017LFDF-13
Notes:
Package
U-DFN2020-6 (Type F)
U-DFN2020-6 (Type F)
Quantity per Reel
3,000
10,000
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
