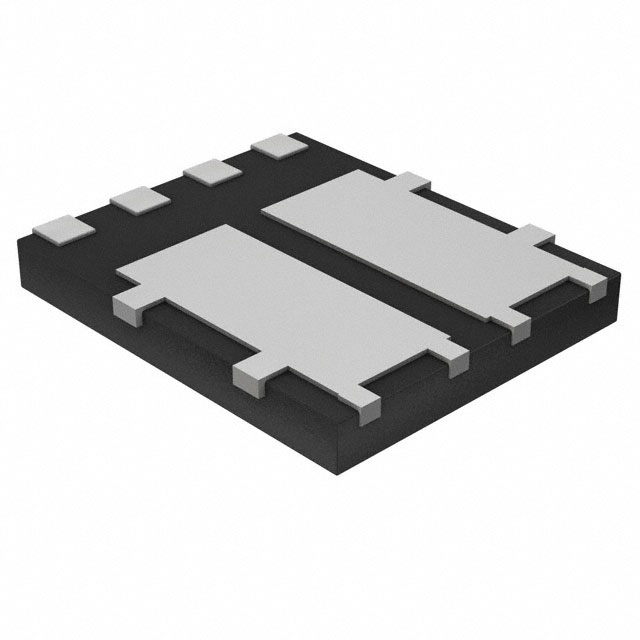

DMTH4007SPDQ 40V 175°C DUAL N-CHANNEL ENHANCEMENT MODE MOSFET PowerDI5060-8 Product Summary Features and Benefits  BVDSS RDS(ON) Max 40V 8.6mΩ @ VGS = 10V ID Max TC = +25°C 48A         Description and Applications This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC-Q101, supported by a PPAP and is ideal for use in:    Rated to +175°C – Ideal for High Ambient Temperature Environments 100% Unclamped Inductive Switching (UIS) Test in Production – Ensures More Reliable and Robust End Application High Conversion Efficiency Low RDS(ON) – Minimizes On-State Losses Low Input Capacitance Fast Switching Speed Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) The DMTH4007SPDQ is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities. https://www.diodes.com/quality/product-definitions/ Mechanical Data Backlighting Power Management Functions DC-DC Converters      Case: PowerDI®5060-8 Case Material: Molded Plastic, "Green" Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish – Matte Tin Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208 Weight: 0.097 grams (Approximate) Site 1: PowerDI5060-8 (Type C) S1 D1 G1 D1 S2 D2 G2 D2 Pin1 Top View G2 G1 S2 S1 Pin out Top View Bottom View D2 D1 Equivalent Circuit Site 2: PowerDI5060-8/SWP (Type UXD) S1 D1 G1 D1 S2 D2 G2 D2 Pin1 Top View Bottom View Pin out Top View D2 D1 G2 G1 S2 S1 Equivalent Circuit PowerDI is a registered trademark of Diodes Incorporated. DMTH4007SPDQ Document number: DS38393 Rev. 2 - 2 1 of 9 www.diodes.com July 2021 © Diodes Incorporated DMTH4007SPDQ Ordering Information (Note 4) Part Number DMTH4007SPDQ-13 DMTH4007SPDQ-13 Notes: Case PowerDI5060-8 (Type C) PowerDI5060-8/SWP (Type UXD) Packaging 2,500/Tape & Reel 2,500/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
