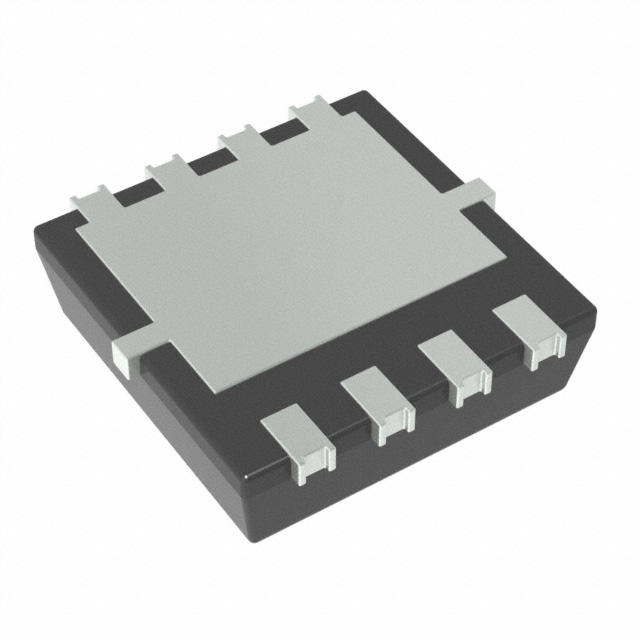

DMTH69M8LFVW-13

DMTH69M8LFVW 60V +175°C N-CHANNEL ENHANCEMENT MODE MOSFET POWERDI3333-8 (SWP) (TYPE UX) Product Summary BVDSS RDS(ON) max 60V 9.5mΩ @ VGS = 10V 13.3mΩ @ VGS = 4.5V Features ID max TC = +25°C 45.4A 38.4A • • • • • • • • • Rated to +175°C—Ideal for High Ambient Temperature Environments 100% Unclamped Inductive Switching (UIS) Test in Production— Ensures More Reliable and Robust End Application Low On-Resistance Small Form Factor Thermally Efficient Package Enables Higher Density End Products Wettable Flank for Improved Optical Inspection Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability An Automotive-Compliant Part is Available Under Separate Datasheet (DMTH69M8LFVWQ) Description and Applications Mechanical Data This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power management applications. • Case: PowerDI 3333-8 (SWP) (Type UX) • Case Material: Molded Plastic, "Green" Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminal Connections Indicator: See Diagram Terminals: FinishMatte Tin Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208 Weight: 0.072 grams (Approximate) • • • • • • Backlighting Power Management Functions DC-DC Converters • ® PowerDI3333-8 (SWP) (Type UX) Top View Equivalent Circuit Bottom View Ordering Information (Note 4) Part Number DMTH69M8LFVW-7 DMTH69M8LFVW-13 Notes: Case PowerDI3333-8 (SWP) (Type UX) PowerDI3333-8 (SWP) (Type UX) Packaging 2000/Tape & Reel 3000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
