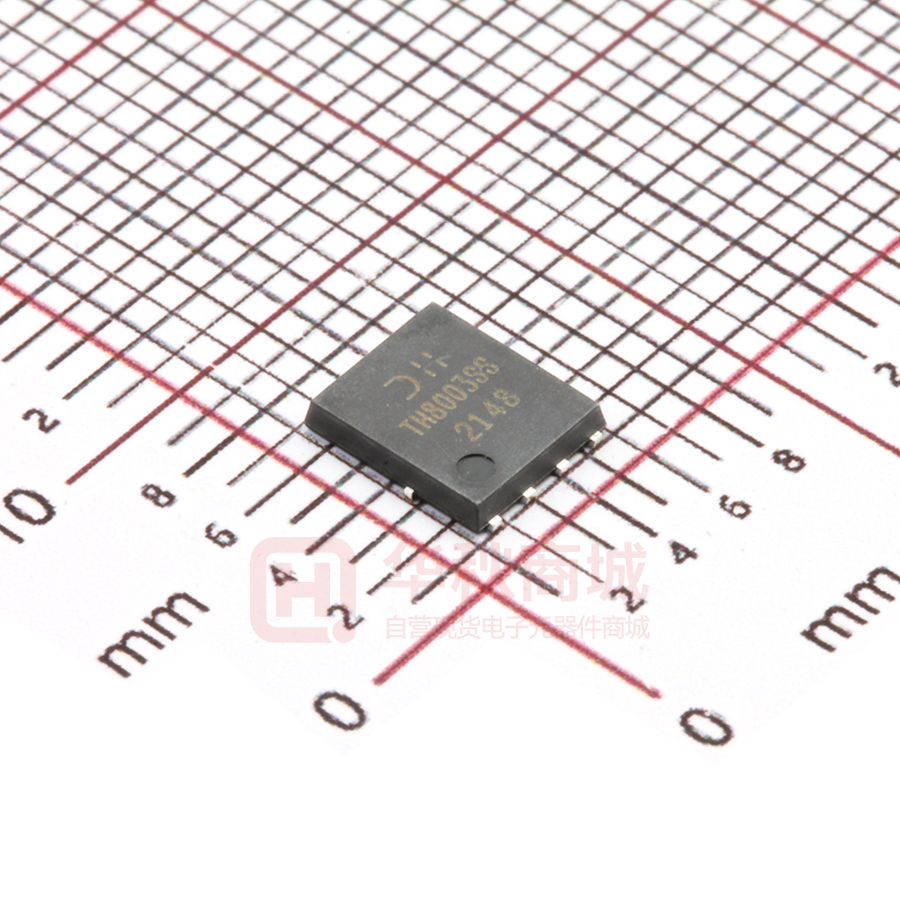

DMTH8003SPS-13

DMTH8003SPS Green 80V +175°C N-CHANNEL ENHANCEMENT MODE MOSFET PowerDI5060-8 (Type K) Product Summary ADVANCED INFORMATION BVDSS 80V Features RDS(ON) Max ID TC = +25°C (Note 9) 3.9mΩ @ VGS = 10V 100A 6mΩ @ VGS = 6V 100A Rated to +175°C – Ideal for High Ambient Temperature Environments 100% Unclamped Inductive Switching Test in Production – Ensures More Reliable and Robust End Application Thermally Efficient Package – Cooler Running Applications High Conversion Efficiency Low RDS(ON) – Minimizes On-State Losses Lead-Free Finish; RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3)       Description and Applications Mechanical Data This MOSFET is designed to minimize the on-state resistance (RDS(ON)), yet maintain superior switching performance, making it ideal for high efficiency power management applications.     ®  Case: PowerDI 5060-8 (Type K)  Case Material: Molded Plastic, ―Green‖ Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminal Finish – Matte Tin Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208 e3 Weight: 0.097 grams (Approximate)   Switching Synchronous Rectification DC-DC Converters  PowerDI5060-8 (Type K) Pin1 Top View S D S D S D G D Bottom View Internal Schematic Top View Pin Configuration Ordering Information (Note 4) Part Number DMTH8003SPS-13 Notes: Case PowerDI5060-8 (Type K) Packaging 2,500/Tape & Reel 1. EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. All applicable RoHS exemptions applied. 2. See http://www.diodes.com/quality/lead_free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green" products are defined as those which contain
