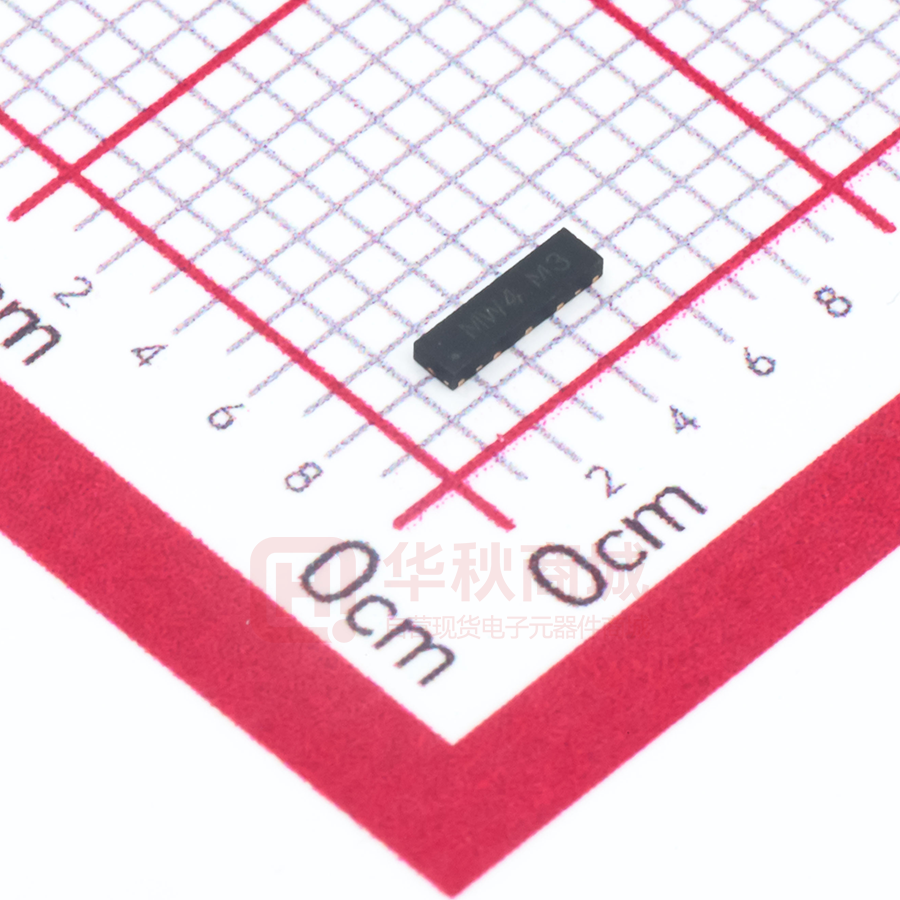

DT1240A-08LP3810-7

DT1240A-08LP3810 8 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY ADVANCED INFORMATION Product Summary Features VBR (Min) IPP (Max) CI/O (Typ) 5V 5.5A 0.6pF          Description The DT1240A-08LP3810 is a high-performance device suitable for protecting four high-speed I/Os. These devices are assembled in UDFN3810-9 (Type B) package and have high ESD surge capability and low capacitance.  Clamping Voltage: 8.2V at 10A 100ns, TLP; 7.5V at 5.5A (8μs/20μs) IEC 61000-4-2 (ESD): Air – ±16kV, Contact – ±14kV IEC 61000-4-5 (Lighting): 5.5A (8/20µs) 8 Channels of ESD Protection Low Channel Input Capacitance of 0.6pF Typical TLP Dynamic Resistance: 0.25Ω Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/ An Automotive-Compliant Part is Available Under Separate Datasheet (DT1240A-08LP3810Q) Mechanical Data Applications Typically used at high-speed ports such as USB2.0, USB3.0, USB3.1, IEEE1394 (Firewire®, iLink), Serial ATA, DVI™, HDMI1.4™, HDMI2.0™ and PCI™.       Case: U-DFN3810-9 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminal Connections: See Schematic Terminals: Finish – NiPdAu, Solderable per MIL-STD-202, Method 208 e4 Weight: 0.005 grams (Approximate) U-DFN3810-9 (Type B) Pin Description (Top View) Device Schematic Ordering Information (Note 4) Part Number DT1240A-08LP3810-7 Notes: Compliance Standard Marking Code MW4 Reel Size (inches) 7 Tape Width (mm) 8 Quantity 5,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
