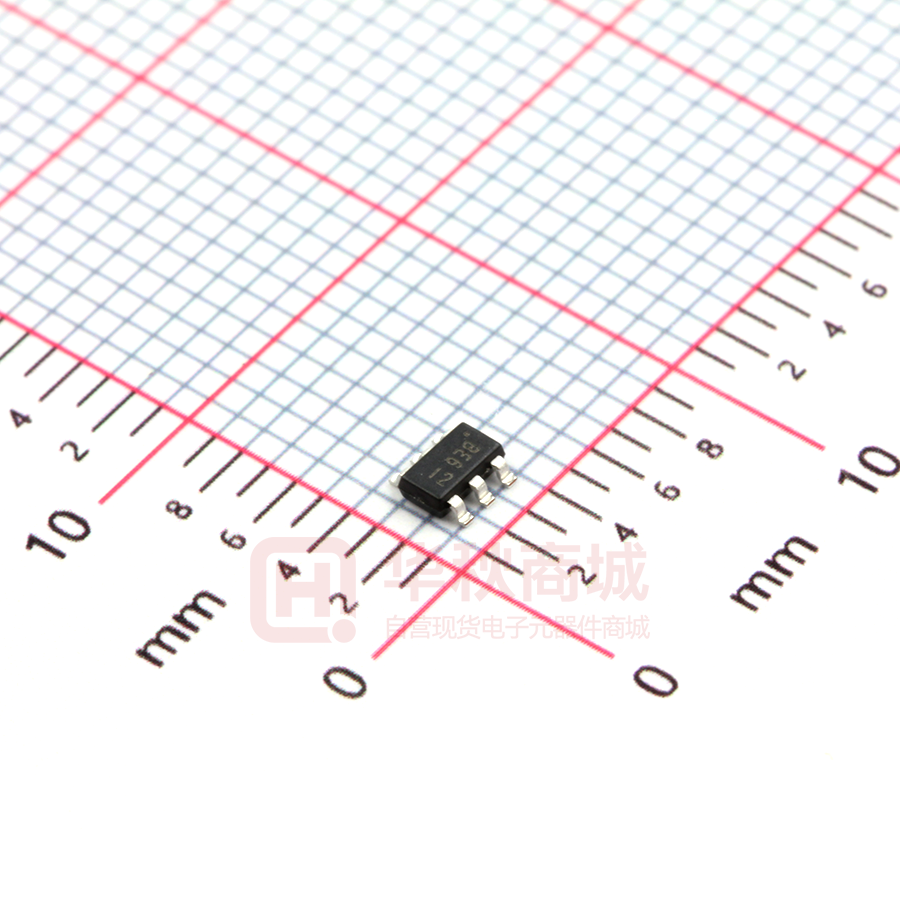

DT2042-04TS-7

DT2042-04TS 4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY Features VBR (min) 6V IPP (max) 10A  CI/O (typ) 1.2pF Description This new generation TVS is designed to protect sensitive electronics from the damage due to ESD. The combination of low capacitance and high ESD surge capability makes it ideal for use in high-speed ports such as USB 2.0, IEEE1394, HDMI, Laptop and Personal Computers, Flat Panel Displays, Video Graphics Displays, SIM Ports.        Low Clamping Voltage Typical 9V at 10A 100ns, TLP Typical 9V at 10A 8μs/20μs IEC 61000-4-2 (ESD): Air – ±30kV, Contact – ±30kV IEC 61000-4-4 (EFT): 60A(5/50ns, I/O to Vss)     4 Channels of ESD protection TLP Dynamic Resistance: 0.25Ω Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Mechanical Data Applications   USB 2.0 IEEE1394 SIM Ports Portable Electronics Computers and Peripheral     Case: TSOT26 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Matte Tin Finish Annealed Over Copper Leadframe (Lead Free Plating). Solderable per MIL-STD-202, Method 208 e3 Weight: 0.013 grams (Approximate) I/O 4 TSOT26 NC I/O 3 6 5 4 1 2 3 I/O 1 VSS I/O 2 Top View Device Schematic Ordering Information (Note 4) Product DT2042-04TS-7 Notes: Compliance Standard Marking BE6 Reel Size (inches) 7 Tape Width (mm) 8 Quantity per Reel 3,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
