FP0800046

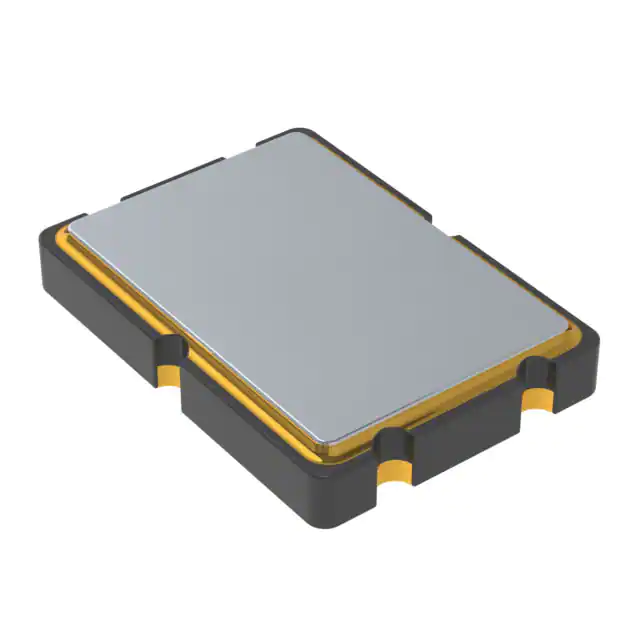

ADVANCED INFORMATION FP Series Quartz Crystal Legacy NKS7 Series 7.0 x 5.0mm FP Quartz Crystal Ceramic SMD Frequency Range: •6.0000 MHz to 56.0000 MHz (Fundamental) •30.0000 MHz to 125.0000 MHz (3rd Overtone) Characteristics at 25°C ±2°C: •Frequency Calibration Tolerance: ±10ppm, ±20ppm, or ±30ppm 7.0 x 5.0mm Ceramic SMD •Load Capacitance: 8 to 32pF or Series Resonance •Effective Series Resistance (ESR): Fundamental: 20 to 120Ω max depending on frequency 3rd Overtone: 50 to 80Ω max depending on frequency Product Features •Drive Level: 10μW typ. (500μW max) • Rugged AT-cut crystal construction •Shunt Capacitance: 7pF max • Extremely compact SMD package • Available on tape & reel; 16mm tape, 1000 units per reel Temperature Range: •Operating: –20 to +70°C or -40 to +85°C • FP: Lead-free and RoHS / Green compliant •Storage: –55 to +125°C Product Description Temperature Stability: •±10ppm, ±20ppm, ±30ppm, or ±50ppm (–20 to +70°C) The 4-pad FP Series seam seal devices incorporate a sub-miniature AT-cut strip crystal resonator housed in a 7.0 x 5.0mm ceramic package. These compact crystals are ideal for surface mounting in densely-populated PCB applications. •±30ppm, or ±50ppm (–40 to +85°C) Aging at 25°C, First Year: • ±3ppm Max Reflow Temperature: Applications •260°C Max, 10 seconds Max Ideally suited for disc drives, PCMCIA, PCs and hand-held products. Mechanical: •Shock: ±5ppm max after 3 drops from 75cm onto a hard wooden board •Solderability: JESD22-B102-D Method 2 (Preconditioning E) •Vibration: ±5ppm max sine vibration 10~55Hz, sweep period 1-2 minutes, amplitude 1.5mm, 3 mutually perpendicular planes each 1 hour •Solvent Resistance: MIL-STD-202, Method 215 •Resistance to Soldering Heat: J-STD-020C Table 5-2 Pb-free devices (3 cycles max) SaRonix-eCera™ is a Pericom® Semiconductor company • US: +1-408-435-0800 TW: +886-3-4518888 • www.saronix-ecera.com All specifications are subject to change without notice. FP REV2008_OCT09_01.5 1 Quartz Crystal Ceramic SMD FP FP Series Quartz Crystal Legacy NKS7 Series | 7.0 x 5.0mm Environmental: •Gross Test Leak: MIL-STD-883, Method 1014, Condition C Mechanical Drawings: •Fine Test Leak: MIL-STD-883, Method 1014, Condition A2 •Thermal Shock: MIL-STD-883, Method 1011, Condition A •Moisture Resistance: MIL-STD-883, Method 1004 1 2 4 3 Part Ordering Information: FP XXX YYYY A: Product Family B: XXX = Frequency Code C: YYYY = Specification Code UNIT: mm Following the above format, Saronix-eCera part numbers will be assigned upon confirmation of exact customer requirements. Recommended Land Pattern: Legacy Ordering Information - For Reference Only: + NKS 7 XXX 1 - 16.3840 - 10 (T) SaRonix Series Designator NKS7 = 4 pad seam seal (T) = Tape & Reel full reel increments only Package Type 7 (7 x 5 x 1.3 mm ) Calibration / Stability / Temp. Range HAA = ±10 ppm / ±10 ppm / -20°C to +70°C (NKS only) JAB = ±20 ppm / ±20 ppm / -20°C to +70°C (NKS only) NAD = ±30 ppm / ±30 ppm / -20°C to +70°C(OBSOLETE) NAK = ±30 ppm / ±50 ppm / -20°C to +70°C NED = ±30 ppm / ±30 ppm / -40°C to +85°C NEK = ±30 ppm / ±50 ppm / -40°C to +85°C Load Capacitance (Blank = series resonant) UNIT: mm Frequency Code Frequencies (in MHz) = 0x.xxxx, xxx.xxxx (a zero is used in front of frequencies under 10 MHz 1 = Fundamental Blank = O/T Part Number Example: Spec: Freq 8.1234MHz, ±30ppm calib, ±30ppm stab, -20 to +70°C, 16pF, T&R = NKS7NAD1-08.1234-16(T) SaRonix-eCera™ is a Pericom® Semiconductor company • US: +1-408-435-0800 TW: +886-3-4518888 • www.saronix-ecera.com All specifications are subject to change without notice. FP REV2008_OCT09_01.5 2
