FY1000034Q

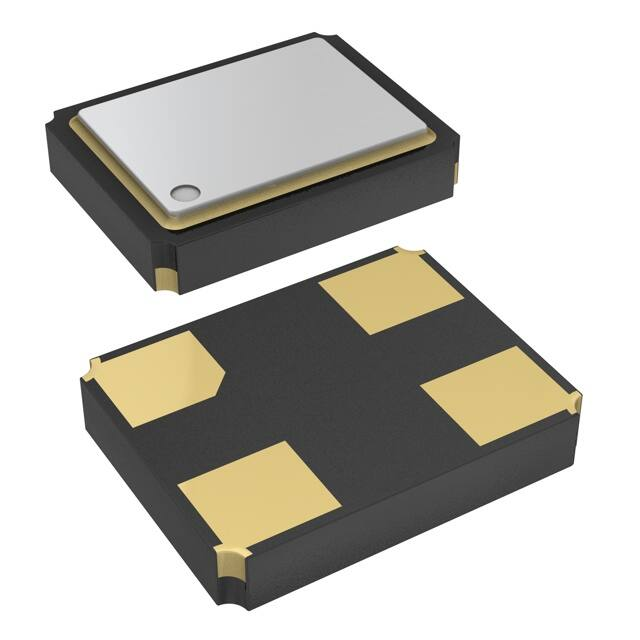

FYQ Series Quartz Crystal AEC-Q200 Qualified 5.0 x 3.2mm FYQ Quartz Crystal Ceramic SMD KN Series Real Time Clock Oscillator 7.0x5.0mm (XO) 5.0 x 3.2mm Ceramic SMD Package: (Dimensions are in mm) Product Features Recommended Land Pattern: • Rugged AT-cut crystal construction • Miniature 5.0 x 3.2mm ceramic package • Available on tape & reel; 12mm tape, 1000 units per reel • Pb-free and RoHS/Green compliant PIN1 Product Description The 4-pad FY Series seam seal devices incorporate a sub-miniature AT-cut crystal resonator housed in a standard 5.0 x 3.2mm ceramic package. These compact crystal are ideal for surface mounting in densely populated PCB applications. CREATED USING CADSTD LITE FREEWARE FROM WWW.CADSTD.COM. NON-COMMERCIAL USE ONLY. Applications • • • • • • • • • PCMCIA Cards Portable / hand-held PCs Notebook PC Wireless LAN Portable Multimedia Devices GPS HDD Bluetooth USB Dongle CREATED USING CADSTD LITE FREEWARE FROM WWW.CADSTD.COM. NON-COMMERCIAL USE ONLY. Part Ordering Information: FY XXX YYYY Q D Q = Automotive�Grade YYYY = Specification�Code XXX = Frequency�Code Product�Family Following the above format, SaRonix-eCera part numbers will be assigned upon confirmation of exact customer requirements. SaRonix-eCera™ is a Pericom® Semiconductor company 16-0018 • US: +1-408-435-0800 TW: +886-3-4518888   •   www.saronix-ecera.com All specifications are subject to change without notice. FYQ REV A 02/04/2016 1 Quartz Crystal Ceramic SMD FYQ FY Series Quartz Crystal AEC-Q200 Qualified 5.0 x 3.2mm Frequency Range: • 8.0000 MHz to 59.9999 MHz (Fundamental) • 60.0000 MHz to 125.0000 MHz (3rd Overtone) Characteristics at 25°C ±3°C: • Frequency Calibration Tolerance: ±10ppm to ±50ppm • Load Capacitance: 8 to 32pF or Series Resonance • Effective Series Resistance (ESR): Fundamental: 8.0000MHz to 11.9999MHz: 100Ω max 12.0000MHz to 15.9999MHz: 60Ω max 16.0000MHz to 31.9999MHz: 50Ω max 32.0000MHz to 59.9999MHz: 40Ω max 3 Overtone: 60.0000MHz to 79.9999MHz: 100Ω max 80.0000MHz to 99.9999MHz: 80Ω max 100.0000MHz to 125.0000MHz: 60Ω max • Drive Level: 10μW typ. 100μW max • Shunt Capacitance: 5pF Max. Temperature Range: • Operating: –20 to +70°C; –40 to +85°C (AECQ Grade 3) • Storage: –55 to +125°C Temperature Stability: • ±10ppm to ±50ppm (–20 to +70°C ) • ±15ppm to ±50ppm (–40 to +85°C) Aging at 25°C, First Year: • ±3ppm Max Reflow Temperature: • 260°C Max, 10 seconds max For the latest product information visit: http://www.pericom.com/products/timing/crystals/FYQ For soldering reflow profile and reliability test ratings go to: http://www.pericom.com/pdf/sre/reflow.pdf For tape and reel information go to: http://www.pericom.com/pdf/sre/tr_5032_xo.pdf SaRonix-eCera™ is a Pericom® Semiconductor company 16-0018 • US: +1-408-435-0800 TW: +886-3-4518888   •   www.saronix-ecera.com All specifications are subject to change without notice. FYQ REV A 02/04/2016 2
