GC1600048

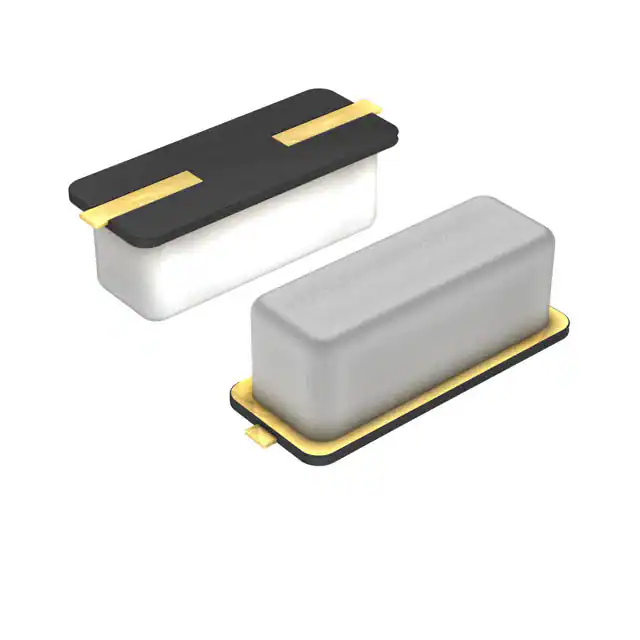

PSE Technology Corporation SPECIFICATION FOR APPROVAL CUSTOMER 16.000000 MHz NOMINAL FREQUENCY PRODUCT TYPE TYPE GC 49S SMD QUARTZ CRYSTAL SPEC. NO. ( P/N ) GC1600048 CUSTOMER P/N March 12, 2013 ISSUE DATE C VERSION APPROVED PREPARED QA AVL Status APPROVED BY CUSTOMER： Please return one copy with approval to PSE-TW PSE Technology Corporation No.2, Tzu-Chiang 5th Rd, Chung Li Industrial Park, Chung Li City, Taoyuan County, Taiwan (R.O.C.) TEL: 886-3-451-8888 FAX: 886-3-461-3865 http://www.saronix-ecera.com.tw E0-R-4-014 Rev. E *RoHS Compliant *HF-Halogen Free *REACH Compliant Page i TYPE GC 49S SMD QUARTZ CRYSTAL GC1600048 VER. C 12-Mar-13 VERSION HISTORY Version No. Version Date A Jun.4,2009 B Aug.25,2010 New Logo C Mar.12,2013 Updated Suggested IR Reflow Profile & Format E0-R-4-014 Rev. E Customer Receipt Date Supplier Receipt Date Description Notes Initial Release Page ii TYPE GC 49S SMD QUARTZ CRYSTAL GC1600048 VER. C 12-Mar-13 ELECTRICAL SPECIFICATIONS Item Symbol Specifications Units Nominal Frequency Fn 16.000000 MHz Mode of Oscillation MO AT Cut-Fundamental Calibration Load Capacitance CL 16 pF Calibration Tolerance FL ±30 ppm Operating Temperature Range TR -20 to +70 °C Frequency Stability (Frequency Deviation over the Operating Temperature Range) F/T ±30 ppm Operating Drive Level 100 µW Maximum Drive Level 500 µW ESR 40 Ω Max C0 7 pF Max ±5 ppm Storage Temperature -55 to +125 °C Insulation Resistance 500 MΩ Equivalent Series Resistance Shunt Capacitance Aging at 25°C E0-R-4-014 Rev. E Notes at 25°C±3°C Reference to the Frequency at 25°C Max, 1st year Min Page 1 TYPE GC 49S SMD QUARTZ CRYSTAL GC1600048 VER. C 12-Mar-13 RELIABILITY SPECIFICATIONS MECHANICAL AND ENVIRONMENTAL RATINGS: a) FINE LEAK TEST: JESD22-A109 (Condition 1A) b) GROSS LEAK TEST: JESD22-A109 (Condition C) c) MOISTURE RESISTANCE: JESD22-A113 d) SHOCK: JESD22-B104 (Condition B) e) SOLDERABILITY : (RoHS version): J-STD-002 f) VIBRATION: JESD22-B103 g) SOLVENT RESISTANCE: JESD22-B107 h) RESISTANCE TO SOLDERING HEAT (RoHS version): J-STD-020D Table 5.2 Pb free devices (3 cycles max) SUGGESTED IR REFLOW PROFILE *As per IPC-JEDEC J-STD-020D For soldering reflow profile and reliability test ratings go to: http://www.pericom.com/pdf/sre/reflow.pdf E0-R-4-014 Rev. E Page 2 TYPE GC 49S SMD QUARTZ CRYSTAL GC1600048 VER. C 12-Mar-13 MARKING Logo SRe 160 FAywwv Frequency Code Date & Factory Code F A y ww v OSC Mode CL Code Year Code (last digit of year) Week Code Factory Code MECHANICAL DRAWINGS ( Scale: None. Dimensions are in mm.) E0-R-4-014 Rev. E Page 3 TYPE GC 49S SMD QUARTZ CRYSTAL GC1600048 VER. C 12-Mar-13 PACKING Start Begin 1000pcs-Product Tape Blue Qualified Label End Storeroom Label Storeroom Label Deliver Packing Carton (L39*W27.2*H35.2) Green Qualified Label E0-R-4-014 Rev. E Page 4
