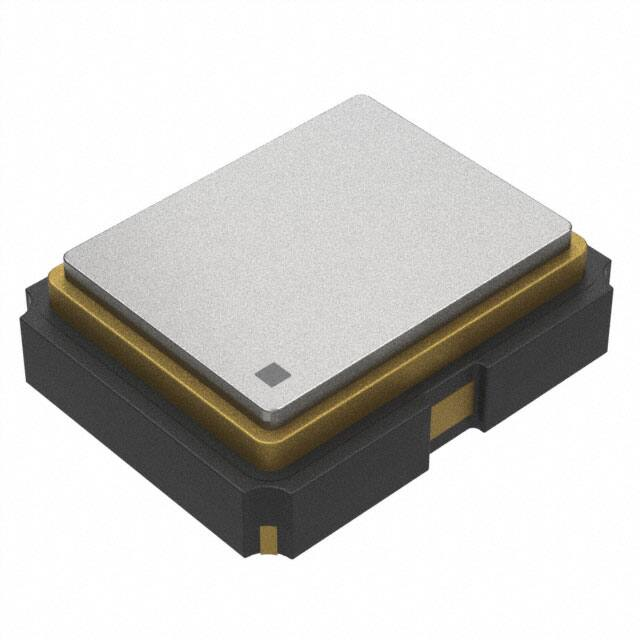

HX2127009Q

SPECIFICATION FOR APPROVAL CUSTOMER 27.000000 MHz NOMINAL FREQUENCY PRODUCT TYPE TYPE HX 2.5x2.0 SEAM SEALED CRYSTAL CLOCK OSCILLATOR HX2127009Q SPEC. NO. ( P/N ) CUSTOMER P/N November 28, 2017 ISSUE DATE A VERSION APPROVED PREPARED QA Diodes Incorporated No.2, Ziqiang 5th Rd., Zhongli Industrial Park, Zhongli Dist., Taoyuan City 32063, Taiwan (R.O.C.) TEL: 886-3-451-8888 FAX: 886-3-461-3865 https://www.diodes.com *Pb-free *RoHS Compliant *HF-Halogen Free *REACH Compliant *AEC-Q200 Compliant E0-R-4-014 Rev. F Page i TYPE HX 2.5x2.0 SEAM SEALED CRYSTAL CLOCK OSCILLATOR HX2127009Q VER. A 28-Nov-17 VERSION HISTORY Version No. Version Date A Nov.28,2017 E0-R-4-014 Rev. F Description Notes Initial Release Page ii TYPE HX 2.5x2.0 SEAM SEALED CRYSTAL CLOCK OSCILLATOR HX2127009Q VER. A 28-Nov-17 ELECTRICAL SPECIFICATIONS SRe Part Number : Item HX2127009Q Symbol Specifications Units Nominal Frequency Fo 27.000000 MHz Frequency Stability (-40°C to +105°C) FT ± 30 ppm Operating Temperature Range TR -40 to +125 °C Supply Voltage VDD +2.8 ± 5% V Logic Type LT LVCMOS Supply Current, Output Enabled IDD/OE 20 mA Max Supply Current, Output Disabled IDD/OD 100 µA Max Duty Cycle (Symmetry) DC/SY 45 / 55 % Measured 50% of Waveform TR/TF 8 ns Max. measured 20 / 80% of Waveform Output Voltage "0" Level VOL 10% VDD V Max Output Voltage "1" Level VOH 90% VDD V Min Output Load CL 15 pF Max Jitter, Phase RMS 1 ps Max. 12KHz ~ 5MHz Frequency Band Jitter, Accumulated RMS(1-σ) 4 ps Max. 20,000 Consecutive Periods Jitter, Peak to Peak Pk-Pk 40 ps Max. 100,000 Random Periods 10 ms Max. -55 to +125 °C Rise / Fall Time Start Up Time Storage Temperature Range Notes **See note ※ This product doesn't include harmful substance that stipulated by SONY SS-00259 Level 1 and S-AT2-001 Level 1 standard. RoHS Compliant (Pb - Free). **Stability includes all combinations of Operating Temperature, Load changes, rated Input (Supply) Voltage changes, Initial Calibration Tolerance (25°C), Aging (1 year at 25°C Average Effective Ambient Temperature), Shock and Vibration. Output Enable / Disable Function Parameter Input Voltage (Pin1), Output Enable Min. Output Disable Delay E0-R-4-014 Rev. F Max. 0.3VDD Input Voltage (Pin1), Output Disable (low power standby) Internal Pullup Resistance Typ. 0.7VDD 30 Notes Units V Or Open V Output is Hi-Z KΩ 50 ns Page 1 TYPE HX 2.5x2.0 SEAM SEALED CRYSTAL CLOCK OSCILLATOR HX2127009Q VER. A 28-Nov-17 TEST CIRCUIT OUTPUT WAVEFORM E0-R-4-014 Rev. F Page 2 TYPE HX 2.5x2.0 SEAM SEALED CRYSTAL CLOCK OSCILLATOR HX2127009Q VER. A 28-Nov-17 AEC-Q200 RELIABILITY TEST SPECIFICATIONS: 1. Initial 1.1 Physical Dimensions: JESD22, Method JB1-100 1.2 External Visual: MIL-STD-883, Method 2009 1.3 Freq. Vs. Temperature: Per Specification/Datasheet 2. Mechanical 2.1 Mechanical Shock: MIL-STD-202 Method 213 2.2 Vibration: MIL-STD-202 Method 204 2.3 Solderability: J-STD-002 2.4 Board Flex: AEC Q200-005 2.5 Terminal Strength (SMD): AEC Q200-006 3.Environmental 3.1 Temp Cycle: JESD22, Method JA-104 3.2 Resistance to Solder Heat: MIL-STD-202 Method 210 3.3 High Temperature Operating Life: MIL-STD-202, Method 108 3.4 High Temp Exposure: MIL-STD-202, Method 108 3.5 High Temp & High Humidity: MIL-STD-202, Method 103 3.6 Thermal Shock: MIL-STD-202, Method 107 SUGGESTED IR REFLOW PROFILE *As per IPC-JEDEC J-STD-020D E0-R-4-014 Rev. F Page 3 TYPE HX 2.5x2.0 SEAM SEALED CRYSTAL CLOCK OSCILLATOR HX2127009Q VER. A 28-Nov-17 MARKING Logo Dot denotes Pin #1 Hb Model Series Frequency & Factory Code e 270 v Hbyww y Year Code (last digit of year) Date Code ww v Week Code Factory Code MECHANICAL DRAWINGS ( Scale:None. Dimensions are in mm.) Recommended Land Pattern* E0-R-4-014 Rev. F Pin Function 1 OE 2 Ground 3 Clock Output 4 VDD Page 4 TYPE HX 2.5x2.0 SEAM SEALED CRYSTAL CLOCK OSCILLATOR HX2127009Q VER. A 28-Nov-17 TAPE & REEL Index 1. 230mm minimum leafer which consist of carrier and/or tape followed by a minimum of 160mm of empty carrier tape sealed with cover tape. 2. 160mm minimum trailer of empty carrier tape sealed with cover tape. E0-R-4-014 Rev. F Page 5 TYPE HX 2.5x2.0 SEAM SEALED CRYSTAL CLOCK OSCILLATOR HX2127009Q VER. A 28-Nov-17 PACKING Begin Start Close End 3000pcs-Product Tape Inner Packing Carton Blue Qualified Label Storeroom Label Storeroom Label Storeroom Label Deliver Packing Carton (L29*W24*H30) Green Qualified Label E0-R-4-014 Rev. F Page 6
