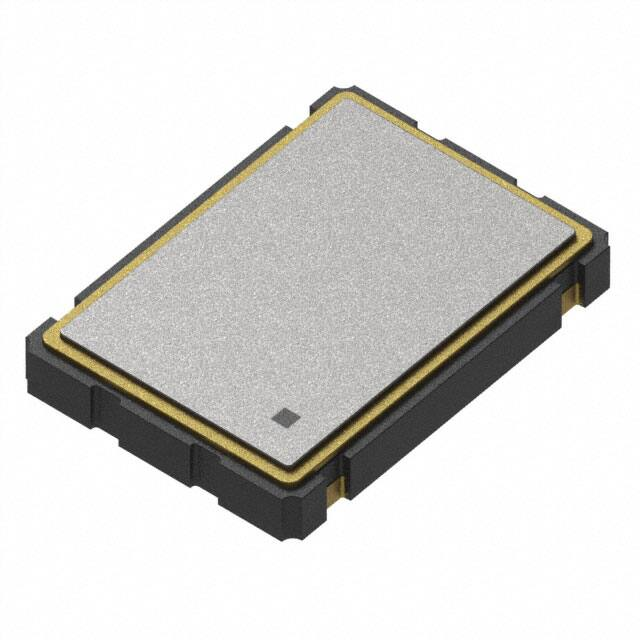

HX7125006Q

SPECIFICATION FOR APPROVAL CUSTOMER 25.000000 MHz NOMINAL FREQUENCY PRODUCT TYPE TYPE HX 7.0x5.0 SEAM SEALED CRYSTAL CLOCK OSCILLATOR SPEC. NO. ( P/N ) HX7125006Q CUSTOMER P/N 0 June 7, 2018 ISSUE DATE B VERSION APPROVED PREPARED QA Diodes Incorporated No.2, Ziqiang 5th Rd., Zhongli Industrial Park, Zhongli Dist., Taoyuan City 32063, Taiwan (R.O.C.) TEL: 886-3-451-8888 FAX: 886-3-461-3865 https://www.diodes.com *Pb-free *RoHS Compliant *HF-Halogen Free *REACH Compliant *AEC-Q200 Compliant E0-R-4-014 Rev. F Page i TYPE HX 7.0x5.0 SEAM SEALED CRYSTAL CLOCK OSCILLATOR HX7125006Q VER. B 7-Jun-18 VERSION HISTORY Version No. Version Date A Sep.13,2016 Initial Release B Jun.7,2018 Updated logo E0-R-4-014 Rev. F Description Notes Page ii TYPE HX 7.0x5.0 SEAM SEALED CRYSTAL CLOCK OSCILLATOR HX7125006Q VER. B 7-Jun-18 ELECTRICAL SPECIFICATIONS SRe Part Number : Item HX7125006Q Symbol Specifications Units Nominal Frequency Fo 25.000000 MHz Frequency Stability FT ± 100 ppm Operating Temperature Range TR -40 to +125 °C Supply Voltage VDD +1.8 ± 5% V Logic Type LT LVCMOS Supply Current, Output Enabled IDD/OE 20 mA Max. Supply Current, Output Disabled IDD/OD 100 µA Max. Duty Cycle (Symmetry) DC/SY 45 / 55 % Measured 50% of Waveform TR/TF 8 ns Max. measured 20/80% of Waveform Output Voltage "0" Level VOL 10% VDD V Max. Output Voltage "1" Level VOH 90% VDD V Min. Output Load CL 15 pF Max Jitter, Phase RMS 1 ps Max, 12KHz ~ 5MHz Frequency Band Jitter, Accumulated RMS(1-σ) 4 ps Max, 20,000 Consecutive Periods Jitter, Peak to Peak Pk-Pk 40 ps Max, 100,000 Random Periods 10 ms Max -55 to +125 °C Rise / Fall Time Start Up Time Storage Temperature Range Notes **See note ※ This product doesn't include harmful substance that stipulated by SONY SS-00259 Level 1 and S-AT2-001 Level 1 standard. RoHS Compliant (Pb - Free). **Stability includes all combinations of Operating Temperature, Load changes, rated Input (Supply) Voltage changes, Initial Calibration Tolerance (25°C), Aging (1 year at 25°C Average Effective Ambient Temperature), Shock and Vibration. Output Enable / Disable Function Parameter Input Voltage (Pin1), Output Enable Min. Typ. Max. 0.8VDD Notes Units V Or Open 0.2VDD V Output is Hi-Z Output Disable Delay 0.1 µs Output Enable Delay 2 ms Input Voltage (Pin1), Output Disable (low power standby) E0-R-4-014 Rev. F Page 1 TYPE HX 7.0x5.0 SEAM SEALED CRYSTAL CLOCK OSCILLATOR HX7125006Q VER. B 7-Jun-18 TEST CIRCUIT OUTPUT WAVEFORM E0-R-4-014 Rev. F Page 2 TYPE HX 7.0x5.0 SEAM SEALED CRYSTAL CLOCK OSCILLATOR HX7125006Q VER. B 7-Jun-18 AEC-Q200 RELIABILITY TEST SPECIFICATIONS: 1. Initial 1.1 Physical Dimensions: JESD22, Method JB1-100 1.2 External Visual: MIL-STD-883, Method 2009 1.3 Freq. Vs. Temperature: Per Specification/Datasheet 2. Mechanical 2.1 Mechanical Shock: MIL-STD-202 Method 213 2.2 Vibration: MIL-STD-202 Method 204 2.3 Solderability: J-STD-002 2.4 Board Flex: AEC Q200-005 2.5 Terminal Strength (SMD): AEC Q200-006 3.Environmental 3.1 Temp Cycle: JESD22, Method JA-104 3.2 Resistance to Solder Heat: MIL-STD-202 Method 210 3.3 High Temperature Operating Life: MIL-STD-202, Method 108 3.4 High Temp Exposure: MIL-STD-202, Method 108 3.5 High Temp & High Humidity: MIL-STD-202, Method 103 3.6 Thermal Shock: MIL-STD-202, Method 107 SUGGESTED IR REFLOW PROFILE *As per IPC-JEDEC J-STD-020D E0-R-4-014 Rev. F Page 3 TYPE HX 7.0x5.0 SEAM SEALED CRYSTAL CLOCK OSCILLATOR HX7125006Q VER. B 7-Jun-18 MARKING SRe 25.000 Logo Dot denotes Pin #1 Frequency Code Hb ywwv Date & Factory Code Hb y ww v Model Series Year Code (last digit of year) Week Code Factory Code MECHANICAL DRAWINGS ( Scale:None. Dimensions are in mm.) Recommended Land Pattern* E0-R-4-014 Rev. F Pin Function 1 OE 2 Ground 3 Clock Output 4 VDD Page 4 TYPE HX 7.0x5.0 SEAM SEALED CRYSTAL CLOCK OSCILLATOR HX7125006Q VER. B 7-Jun-18 TAPE&REEL 1. 230mm minimum leafer which consist of carrier and/or tape followed by a minimum of 160mm of empty carrier tape sealed with cover tape. 2. 160mm minimum trailer of empty carrier tape sealed with cover tape. E0-R-4-014 Rev. F Page 5 TYPE HX 7.0x5.0 SEAM SEALED CRYSTAL CLOCK OSCILLATOR HX7125006Q VER. B 7-Jun-18 PACKING Begin Start End 1000pcs-Product Tape Inner Packing Carton Blue Qualified Label Storeroom Label Storeroom Label Storeroom Label Deliver Packing Carton (L29*W24*H30) Green Qualified Label E0-R-4-014 Rev. F Page 6
