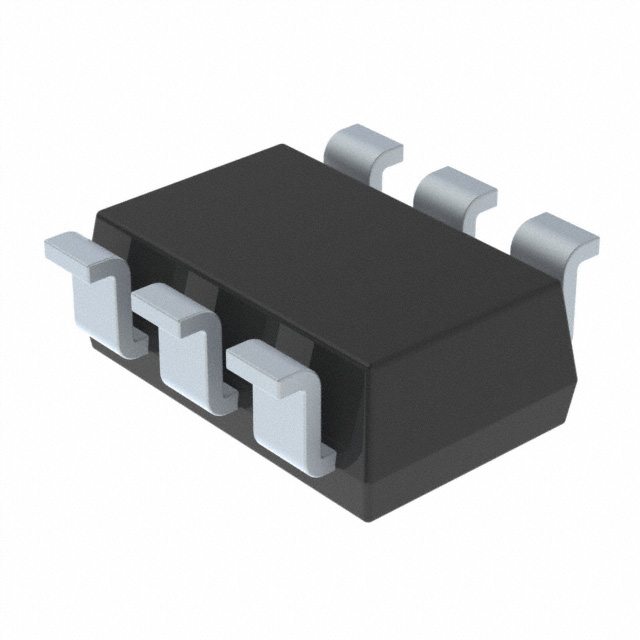

IMX8
DUAL NPN SMALL SIGNAL SURFACE MOUNT TRANSISTOR
NEW PRODUCT
SPICE MODEL: IMX8
Features
·
·
·
·
Epitaxial Planar Die Construction
Complementary PNP Type Available
(IMT4)
Small Surface Mount Package
Also Available in Lead Free Version
SOT-26
A
B2
·
·
·
·
·
·
·
C2
Case: SOT-26, Molded Plastic
Case material - UL Flammability Rating
Classification 94V-0
Moisture sensitivity: Level 1 per J-STD-020A
Terminals: Solderable per MIL-STD-202,
Method 208
Also Available in Lead Free Plating (Matte Tin
Finish). Please see Ordering Information,
Note 4, on Page 2
Terminal Connections: See Diagram
Marking (See Page 2): KX8
Ordering & Date Code Information: See Page 2
Weight: 0.016 grams (approx.)
Maximum Ratings
Dim
Min
Max
Typ
A
0.35
0.50
0.38
B
1.50
1.70
1.60
C
2.70
3.00
2.80
D
¾
¾
0.95
E1
B C
Mechanical Data
·
·
B1
E2
C1
H
K
M
J
D
B2
B1
F
L
E1
F
¾
¾
0.55
H
2.90
3.10
3.00
J
0.013 0.10
0.05
K
1.00
1.30
1.10
L
0.35
0.55
0.40
M
0.10
0.20
0.15
a
0°
8°
¾
All Dimensions in mm
C2
E2
C1
@ TA = 25°C unless otherwise specified
Symbol
IMX8
Unit
Collector-Base Voltage
Characteristic
VCBO
120
V
Collector-Emitter Voltage
VCEO
120
V
Emitter-Base Voltage
VEBO
5.0
V
Collector Current - Continuous
IC
50
mA
Power Dissipation (Note 1)
Pd
300
mW
RqJA
417
°C/W
Tj, TSTG
-55 to +150
°C
Thermal Resistance, Junction to Ambient (Note 1)
Operating and Storage and Temperature Range
Electrical Characteristics
Characteristic
@ TA = 25°C unless otherwise specified
Symbol
Min
Typ
Max
Unit
Test Condition
Collector-Base Breakdown Voltage
V(BR)CBO
120
¾
¾
V
IC = 50mA
Collector-Emitter Breakdown Voltage
V(BR)CEO
120
¾
¾
V
IC = 1.0mA
Emitter-Base Breakdown Voltage
OFF CHARACTERISTICS (Note 2)
V(BR)EBO
5.0
¾
¾
V
IE = 50mA
Collector Cutoff Current
ICBO
¾
¾
0.5
mA
VCB = 100V
Emitter Cutoff Current
IEBO
¾
¾
0.5
mA
VEB = 4.0V
ON CHARACTERISTICS (Note 2)
DC Current Gain
Collector-Emitter Saturation Voltage
hFE
180
¾
820
¾
IC = 2.0mA, VCE = 6.0V
VCE(SAT)
¾
¾
0.5
V
IC = 10mA, IB = 1.0mA
fT
¾
140
¾
MHz
SMALL SIGNAL CHARACTERISTICS
Current Gain-Bandwidth Product
VCE = 12V, IE = -2.0mA,
f = 100MHz
Notes: 1. Device mounted on FR-5 PCB 1.0 x 0.75 x 0.062 inch pad layout as shown on Diodes Inc. suggested pad layout AP02001, which
can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. 200mW per element must not be exceeded.
2. Short duration test pulse used to minimize self-heating effect.
DS30304 Rev. 3 - 2
1 of 3
www.diodes.com
IMX8
ã Diodes Incorporated
Device
Packaging
Shipping
IMX8-7
SOT-26
3000/Tape & Reel
Notes: 3. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
4. For Lead Free version (with Lead Free terminal finish) part number, please add "-F" suffix to part number above.
Example: IMX8-7-F.
Marking Information
KX8 = Product Type Marking Code
YM = Date Code Marking
Y = Year ex: N = 2002
M = Month ex: 9 = September
YM
KX8
Date Code Key
Year
2002
2003
2004
2005
2006
2007
2008
2009
Code
N
P
R
S
T
U
V
W
Month
Jan
Feb
March
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1
2
3
4
5
6
7
8
9
O
N
D
600
Ta = 75°C
350
500
300
hFE, DC CURRENT GAIN
PD, POWER DISSIPATION (mW)
NEW PRODUCT
Ordering Information (Note 3)
250
200
150
100
400
Ta = 25°C
300
Ta = -25°C
200
100
50
0
0
25
50
75
100
125
150
175
200
1.0
TA, AMBIENT TEMPERATURE (°C)
Fig. 1, Max Power Dissipation vs
Ambient Temperature
DS30304 Rev. 3 - 2
0
10.0
100
IC, COLLECTOR CURRENT (mA)
Fig. 2 Typical DC Current Gain vs. Collector Current
2 of 3
www.diodes.com
IMX8
100
IC, COLLECTOR CURRENT (mA)
NEW PRODUCT
Ta = 25°C
10.0
Ta = 75°C
Ta = -25°C
1.0
0.1
0
0.2
0.1
0.3
0.4
0.5
0.7
0.6
0.8
0.9
1000
1.0
VCE = 5 Volts
fT, GAIN BANDWIDTH PRODUCT (MHz)
VCE(SAT), COLLECTOR TO EMITTER SATURATION
VOLTAGE (V)
VBE(ON), BASE-EMITTER VOLTAGE (V)
Fig. 3 Typical Collector Current vs.
Base-Emitter Voltage
Ta = 150°C
0.100
Ta = 25°C
Ta = -50°C
100
0.010
10
1
1
10
100
1000
1
10
100
IC, COLLECTOR CURRENT (mA)
Fig. 5 Typical Gain Bandwidth Product
vs. Collector Current
IC, COLLECTOR CURRENT (mA)
Fig. 4 Typical Collector-Emitter Voltage
vs. Collector Current
IC, COLLECTOR CURRENT (mA)
6
5
4
3
2
1
0
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
VCE, COLLECTOR-EMITTER VOLTAGE (V)
Fig. 6 Typical Collector Current vs.
Collector-Emitter Voltage
DS30304 Rev. 3 - 2
3 of 3
www.diodes.com
