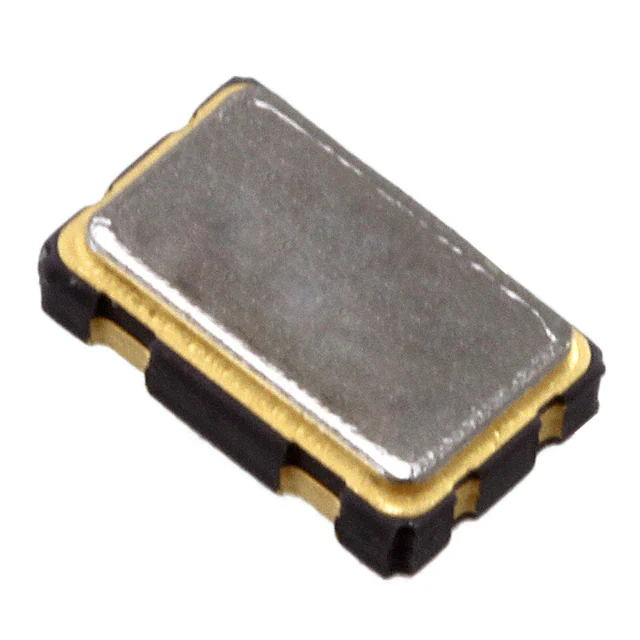

KD3270046Z

PSE Technology Corporation SPECIFICATION FOR APPROVAL CUSTOMER 32.768000 KHz NOMINAL FREQUENCY PRODUCT TYPE TYPE KD 5.0x3.2 SEAM SEALED CRYSTAL CLOCK OSCILLATOR SPEC. NO. ( P/N ) KD3270046Z CUSTOMER P/N 0 November 19, 2014 ISSUE DATE A VERSION APPROVED PREPARED QA AVL Status APPROVED BY CUSTOMER： Please return one copy with approval to PSE-TW PSE Technology Corporation No.2, Tzu-Chiang 5th Rd, Chung Li Industrial Park, Chung Li City, Taoyuan County, Taiwan (R.O.C.) TEL: 886-3-451-8888 FAX: 886-3-461-3865 http://www.saronix-ecera.com.tw *Pb-free *RoHS Compliant *HF-Halogen Free *REACH Compliant *AEC-Q200 Compliant E0-R-4-014 Rev. E Page i TYPE KD 5.0x3.2 SEAM SEALED CRYSTAL CLOCK OSCILLATOR KD3270046Z VER. A 19-Nov-14 VERSION HISTORY Version No. Version Date A Nov.19,2014 E0-R-4-014 Rev. E Customer Receipt Date Supplier Receipt Date Description Notes Initial Release Page ii TYPE KD 5.0x3.2 SEAM SEALED CRYSTAL CLOCK OSCILLATOR KD3270046Z VER. A 19-Nov-14 ELECTRICAL SPECIFICATIONS SRe Part Number : KD3270046Z Item Symbol Specifications Units Nominal Frequency Fo 32.768000 KHz Frequency Stability FT ± 50 ppm Operating Temperature Range TR -40 to +85 °C Supply Voltage VDD +3.3V ± 10% V Logic Type LT LVCMOS Supply Current, Output Enabled IDD/OE 0.5 mA Max. Supply Current, Output Disabled IDD/OD 10 µA Max. Duty Cycle (Symmetry) DC/SY 45 / 55 % Measured 50% of Waveform TR/TF 15 ns Max. Measured at 10 / 90% of Waveform Output Voltage "0" Level VOL 10% VDD V Max. Output Voltage "1" Level VOH 90% VDD V Min. Output Load CL 15 pF Max. 10 ms Max. -55 to +125 °C Rise / Fall Time Start Up Time Storage Temperature Range Notes **See note ※ This product doesn't include harmful substance that stipulated by SONY SS-00259 Level 1 and S-AT2-001 Level 1 standard. RoHS Compliant (Pb - Free). **Stability includes all combinations of Operating Temperature, Load changes, rated Input (Supply) Voltage changes, Initial Calibration Tolerance (25°C), Aging (1 year at 25°C Average Effective Ambient Temperature), Shock and Vibration. Output Enable / Disable Function Parameter Input Voltage (Pin1), Output Enable Min. Typ. 0.7VDD 0.3VDD Input Voltage (Pin1), Output Disable (low power standby) Internal Pullup Resistance Max. 470 V Or Open V Output is Hi-Z KΩ Output Disable Delay 100 ns Output Enable Delay 10 ms E0-R-4-014 Rev. E Notes Units Page 1 TYPE KD 5.0x3.2 SEAM SEALED CRYSTAL CLOCK OSCILLATOR KD3270046Z VER. A 19-Nov-14 TEST CIRCUIT OUTPUT WAVEFORM E0-R-4-014 Rev. E Page 2 TYPE KD 5.0x3.2 SEAM SEALED CRYSTAL CLOCK OSCILLATOR KD3270046Z VER. A 19-Nov-14 AEC-Q200 RELIABILITY TEST SPECIFICATIONS: 1. Initial 1.1 Physical Dimensions: JESD22, Method JB1-100 1.2 External Visual: MIL-STD-883, Method 2009 1.3 Freq. Vs. Temperature: Per Specification/Datasheet 2. Mechanical 2.1 Mechanical Shock: MIL-STD-202 Method 213 2.2 Vibration: MIL-STD-202 Method 204 2.3 Solderability: J-STD-020 2.4 Board Flex: AEC Q200-005 2.5 Terminal Strength (SMD): AEC Q200-006 3.Environmental 3.1 Temp Cycle: JESD22, Method JA-104 3.2 Resistance to Solder Heat: MIL-STD-202 Method 210 3.3 High Temperature Operating Life: MIL-STD-202, Method 108 3.4 High Temp: MIL-STD-202, Method 108 3.5 High Temp & High humidity: MIL-STD-202, Method 103 3.6 Thermal Shock: MIL-STD-202, Method 107 SUGGESTED IR REFLOW PROFILE *As per IPC-JEDEC J-STD-020D For soldering reflow profile and reliability test ratings go to: http://www.pericom.com/pdf/sre/reflow.pdf E0-R-4-014 Rev. E Page 3 TYPE KD 5.0x3.2 SEAM SEALED CRYSTAL CLOCK OSCILLATOR KD3270046Z VER. A 19-Nov-14 MARKING Logo Dot denotes Pin #1 Frequency Code SRe 327K Qb ywwv Date & Factory Code Q b y ww v Automotive Model Series Year Code (last digit of year) Week Code Factory Code MECHANICAL DRAWINGS ( Scale:None. Dimensions are in mm.) Recommended Land Pattern* E0-R-4-014 Rev. E Pin Function 1 OE 2 Ground 3 Clock Output 4 VDD Page 4 TYPE KD 5.0x3.2 SEAM SEALED CRYSTAL CLOCK OSCILLATOR KD3270046Z VER. A 19-Nov-14 TAPE&REEL 1. 230mm minimum leafer which consist of carrier and/or tape followed by a minimum of 160mm of empty carrier tape sealed with cover tape. 2. 160mm minimum trailer of empty carrier tape sealed with cover tape. E0-R-4-014 Rev. E Page 5 TYPE KD 5.0x3.2 SEAM SEALED CRYSTAL CLOCK OSCILLATOR KD3270046Z VER. A 19-Nov-14 PACKING Close Begin Start End 1000pcs-Product Tape Inner Packing Carton Blue Qualified Label Storeroom Label Storeroom Label Storeroom Label Deliver Packing Carton (L29*W24*H30) Green Qualified Label E0-R-4-014 Rev. E Page 6
