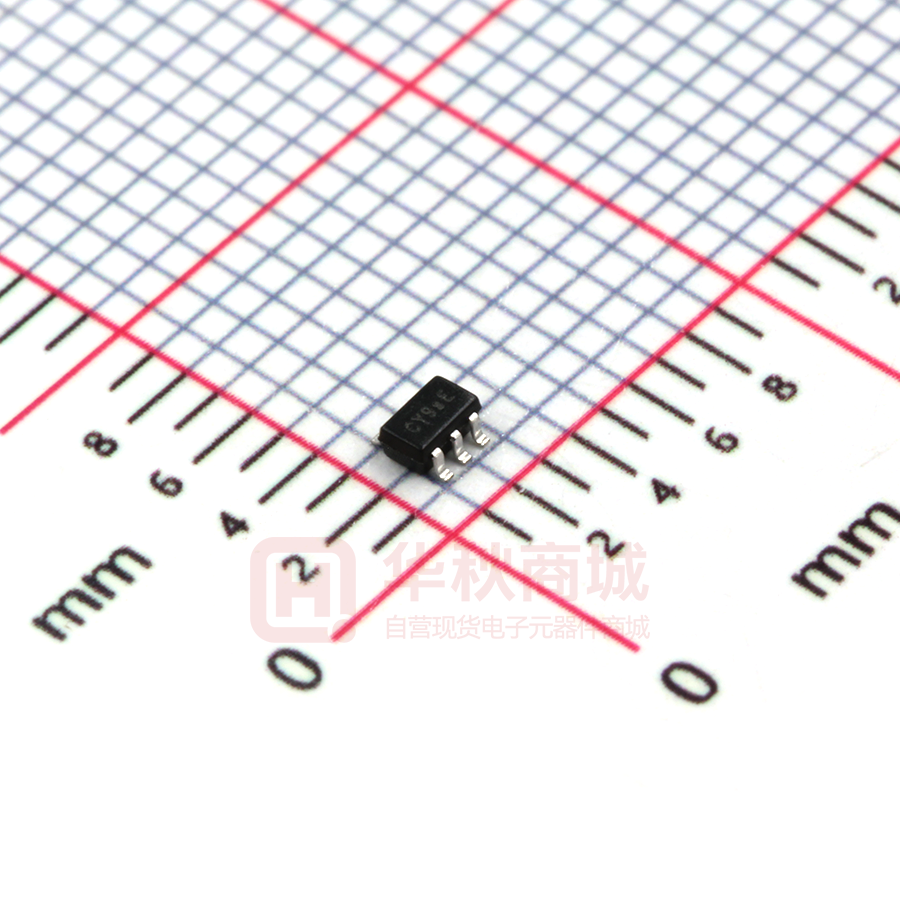

LMV331SE-7

LMV331/ LMV393 GENERAL PURPOSE LOW VOLTAGE COMPARATOR Description Pin Assignments ( Top View ) These devices offer specifications that meet or exceed the familiar LM331/LM393 devices operating with a lower supply voltage and consuming a far lower supply current. IN+ 1 VEE 2 IN- 3 The LMV331 is available in 5-Pin SOT353/SOT25 packages that reduce space on PC boards and portable electronic devices. LMV393 is available in industry standard SOP-8 and MSOP-8 packages. OUT (Top View) 1OUT 1 1IN- 2 1IN+ 3 4 8 7 - V CC 2OUT 1 VEE - 6 5 2 + Notes: 4 - +   Guaranteed 2.7V and 5.5V performance Operating temperature range (-40°C to +125°C) Low supply current 40 µA/comparator Typ Input Common Mode Voltage Range includes ground Open Collector Output for Maximums Flexibility SOT353, SOT25, MSOP-8, SO-8: Available in “Green” Molding Compound (No Br, Sb) Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) VCC SOT25/SOT353 Features       5 + ADVANCED INFORMATION The LMV331/LMV393 series are low-voltage, (2.7V to 5.5V) single and dual comparators, which are designed to effectively reduce cost and space at low-voltage levels. 2IN2IN+ SO-8/MSOP-8 Applications      Mobile Communications Battery Powered Devices Notebooks and PDA’s General Purpose Low-Voltage Applications General Purpose Portable Devices 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
