ADVANCED INFORMATION

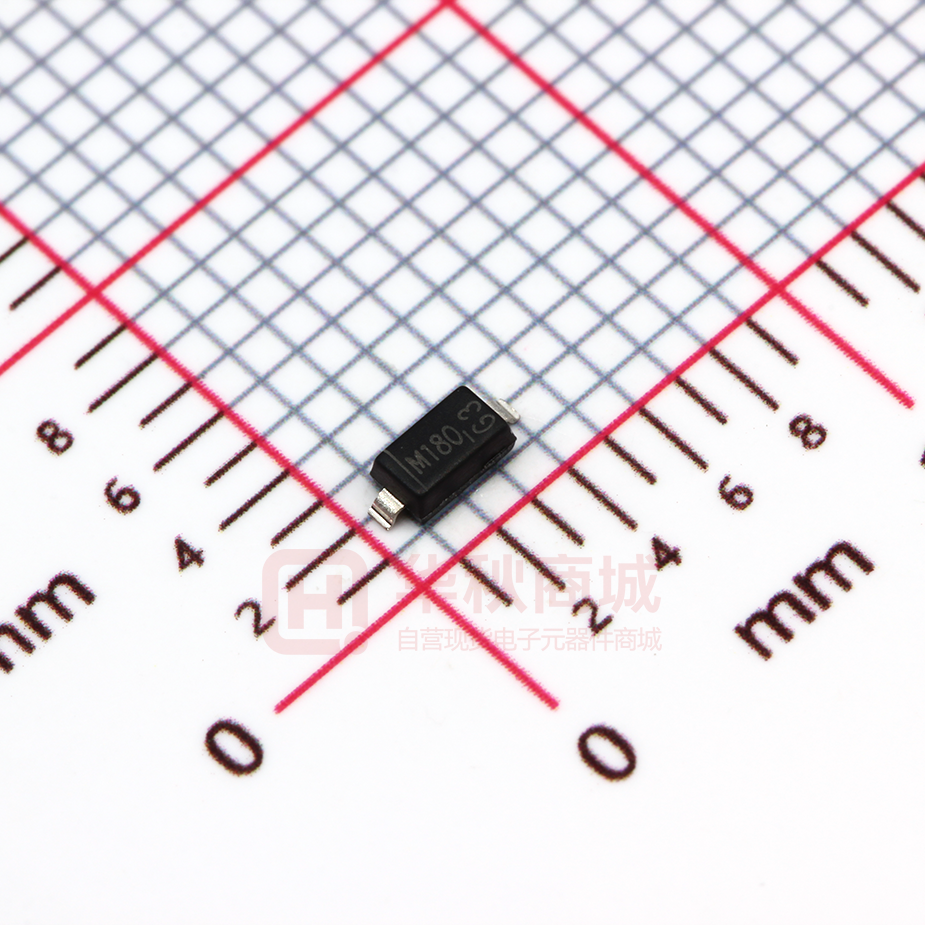

MBR180S1
1A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
ADVANCED INFORMATION
NEW PRODUCT
Product Summary
VRRM (V)
IO (A)
80
1
Features and Benefits
VF(MAX) (V)
@ +25°C
0.80
IR(MAX) (µA)
@ +25°C
5
Low Forward Voltage (VF) Minimizes Conduction Losses and
Improving Efficiency
Very Low Leakage at High Temperature
Guard Ring Die Construction for Transient Protection
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
For automotive applications requiring specific change control
(i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable,
and manufactured in IATF 16949 certified facilities), please
contact us or your local Diodes representative.
https://www.diodes.com/quality/product-definitions/
Description and Applications
This DIODES™ MBR180S1 is a single rectifier packaged in
SOD123. Ideally suited for low voltage, high frequency rectification
or as free-wheeling and polarity protection diodes in surface mount
applications where compact size and weight are critical to the
system. Typical applications are AC-DC and DC-DC converters,
reverse battery protections, and “O-ring” of multiple supply voltages
and any other applications where performance and size are critical.
Mechanical Data
Package: SOD123
Package Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.01 grams (Approximate)
SOD123
Ordering Information (Note 4)
Notes:
Part Number
Package
MBR180S1-7
SOD123
Packing
Qty.
3000
Carrier
Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
