MMBD3004A/C/S
HIGH VOLTAGE SURFACE MOUNT DUAL SWITCHING DIODE
Features
Mechanical Data
Fast Switching Speed: Maximum of 50ns
High Reverse Breakdown Voltage Rating: 350V
Low Reverse Current: Maximum of 100nA when VR = 240V at
Room Temperature
Surface Mount Package Ideally Suited for Automated Insertion
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Case: SOT23
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
Polarity: See Diagram
Weight: 0.008 grams (Approximate)
SOT23
Top View

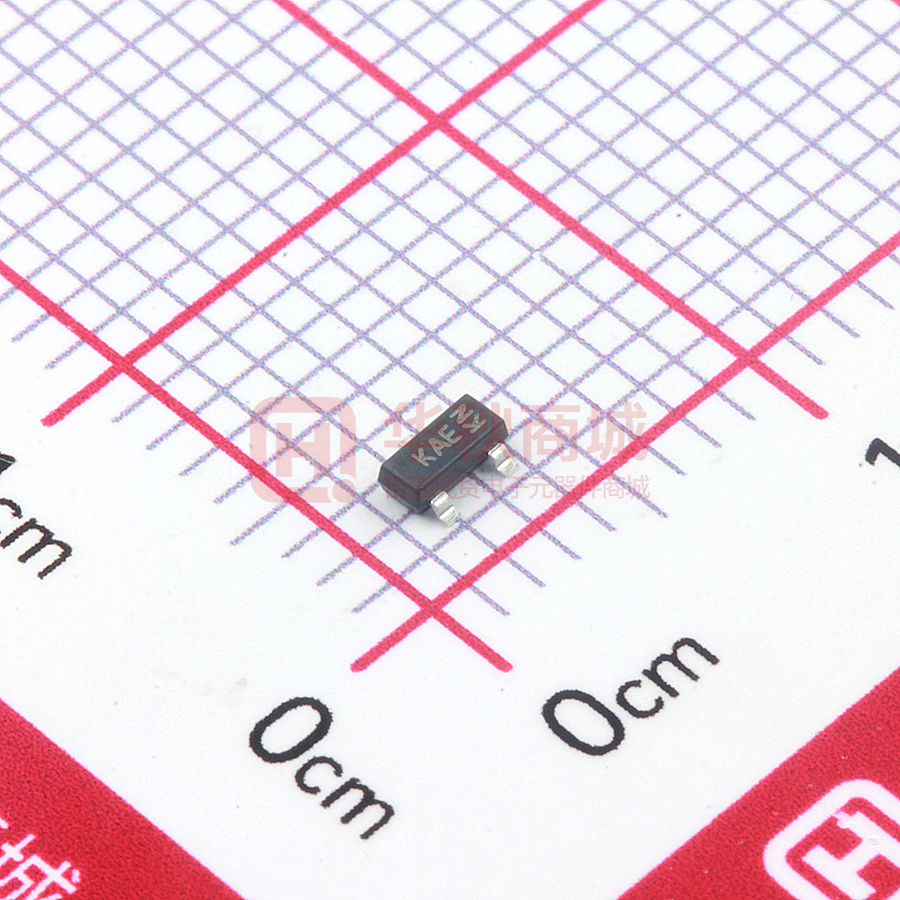

MMBD3004S Marking: KAE
MMBD3004A Marking: KAD
MMBD3004C Marking: KAC
Ordering Information (Note 5)
Part Number
MMBD3004S-7-F
MMBD3004SQ-7-F
MMBD3004SQ-13-F
MMBD3004S-13-F
MMBD3004A-7-F
MMBD3004C-7-F
MMBD3004CQ-7-F
Notes:
Qualification
AEC-Q101
Automotive
Automotive
AEC-Q101
AEC-Q101
AEC-Q101
Automotive
Case
SOT23
SOT23
SOT23
SOT23
SOT23
SOT23
SOT23
Packaging
3,000/Tape & Reel
3,000/Tape & Reel
10,000/Tape & Reel
10,000/Tape & Reel
3,000/Tape & Reel
3,000/Tape & Reel
3,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
