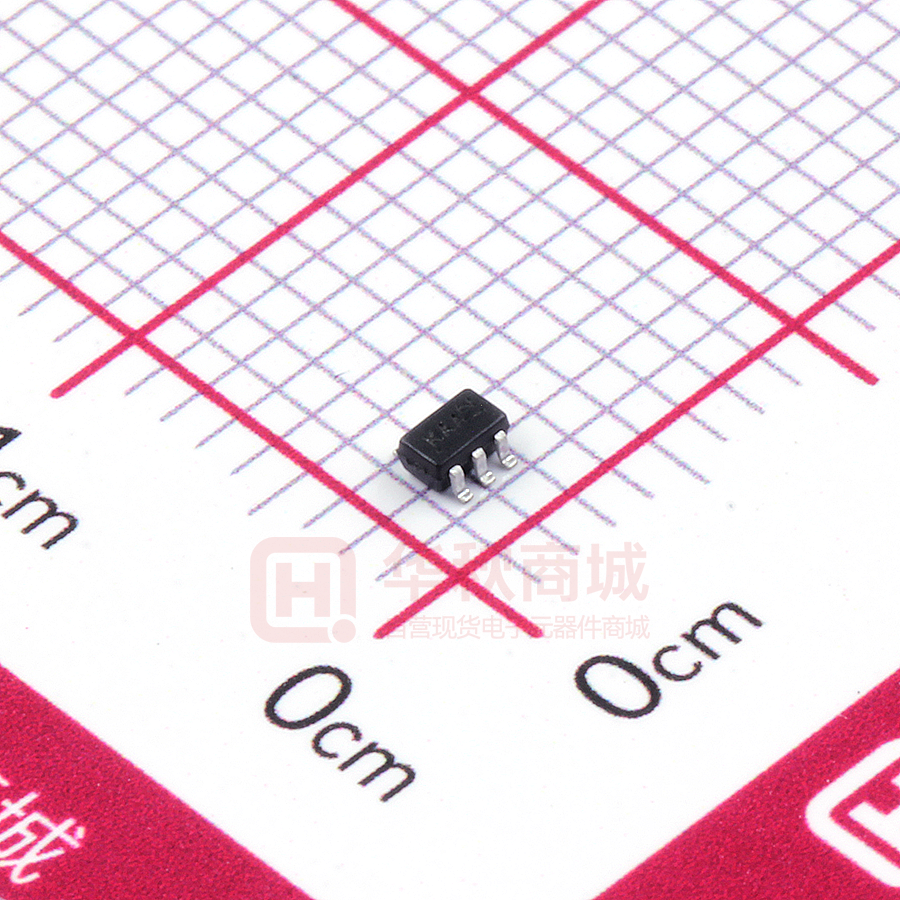

MMBD4448HTW-7-F

MMBD4448HCQW /AQW /ADW /CDW /SDW /TW SURFACE MOUNT FAST SWITCHING DIODE ARRAY Features • • • • • • • • • • Mechanical Data • • Fast Switching Speed Low Forward Voltage: Maximum of 0.72V at 5mA Low Reverse Current: Maximum of 100nA at 70V Fast Reverse Recovery: Maximum of 4ns Low Capacitance: Maximum of 3.5pF Small Surface Mount Package For General Purpose Switching Applications Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3)  Qualified to AEC-Q101 Standards for High Reliability Case: SOT353 or SOT363 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Matte Tin Finish annealed over Alloy 42 leadframe (Lead Free Plating). Solderable per MIL-STD-202, Method 208 e3 Orientation: See Diagrams Below Weight: 0.006 grams (approximate) • • • • SOT353/SOT363 A1 C A4 SOT-353 TOP VIEW SOT-363 TOP VIEW A2 C1 A C2 A1 C2 C2 C1 A2 A2 AC A3 C4 NC C3 C1 C1 A2 A1 A1 C2 A1 MMBD4448HCQW MMBD4448HAQW MMBD4448HADW 1 MMBD4448HCDW C2 A2 C1 AC 2 MMBD4448HSDW C1 C2 C3 A1 A2 A3 MMBD4448HTW Ordering Information (Note 4) Part Number MMBD4448HADW-7-F MMBD4448HADWQ-7-F MMBD4448HAQW-7-F MMBD4448HCDW-7-F MMBD4448HCQW-7-F MMBD4448HSDW-7-F MMBD4448HTW-7-F Notes: Qualification Commercial Automotive Commercial Commercial Commercial Commercial Commercial Case SOT363 SOT363 SOT363 SOT363 SOT353 SOT363 SOT363 Packaging 3000/Tape & Reel 3000/Tape & Reel 3000/Tape & Reel 3000/Tape & Reel 3000/Tape & Reel 3000/Tape & Reel 3000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
