BAS16 / MMBD4148 / MMBD914
SURFACE MOUNT SWITCHING DIODE
Features
•
•
•
•
•
•
Mechanical Data
Fast Switching Speed
Surface Mount Package Ideally Suited for Automated Insertion
For General Purpose Switching Applications
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Notes 3 & 4)
Qualified to AEC-Q101 Standards for High Reliability
•
•
•
•
•
•
Case: SOT23
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe
(Lead Free Plating).
Solderable per MIL-STD-202, Method 208
Polarity: See Diagram
Weight: 0.008 grams (Approximate)

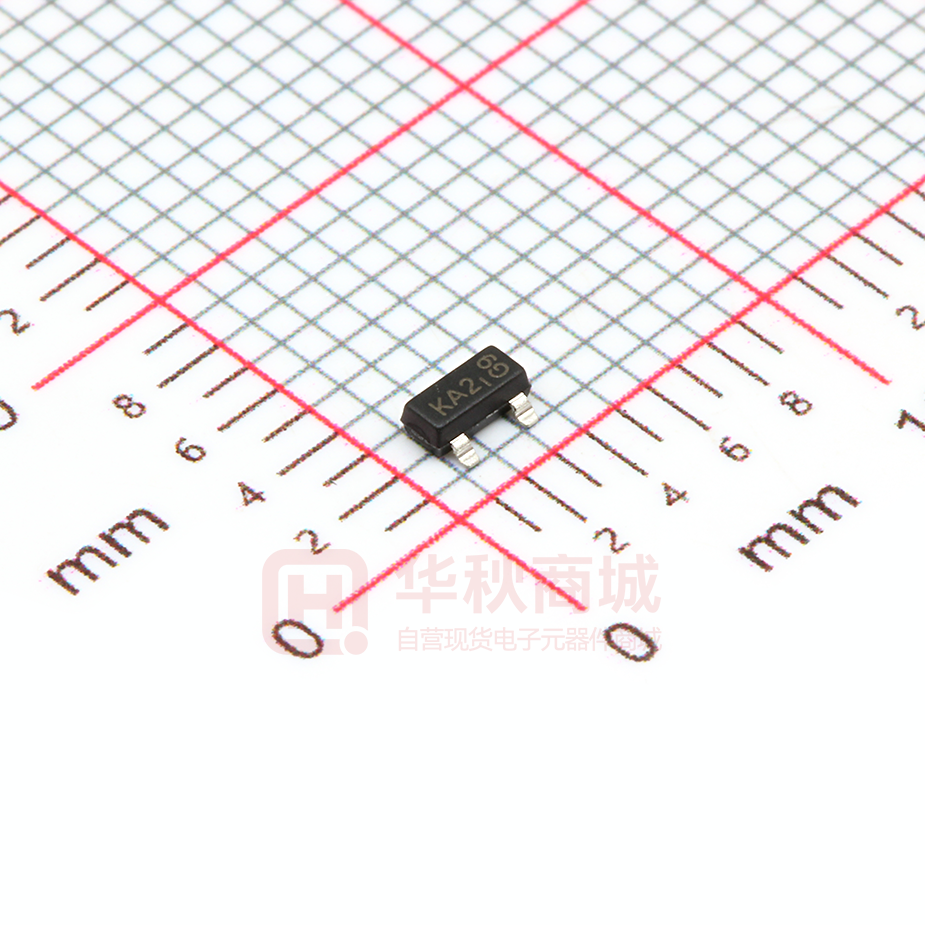

SOT23
Top View
Top View
Internal Schematic
Ordering Information (Note 5)
Part Number
BAS16-7-F
BAS16-13-F
BAS16Q-7-F
BAS16Q-13-F
MMBD4148-7-F
MMBD4148-13-F
MMBD914-7-F
MMBD914-13-F
Notes:
Compliance
Standard
Standard
Automotive
Automotive
Standard
Standard
Standard
Standard
Case
SOT23
SOT23
SOT23
SOT23
SOT23
SOT23
SOT23
SOT23
Packaging
3,000/Tape & Reel
10,000/Tape & Reel
3,000/Tape & Reel
10,000/Tape & Reel
3,000/Tape & Reel
10,000/Tape & Reel
3,000/Tape & Reel
10,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
