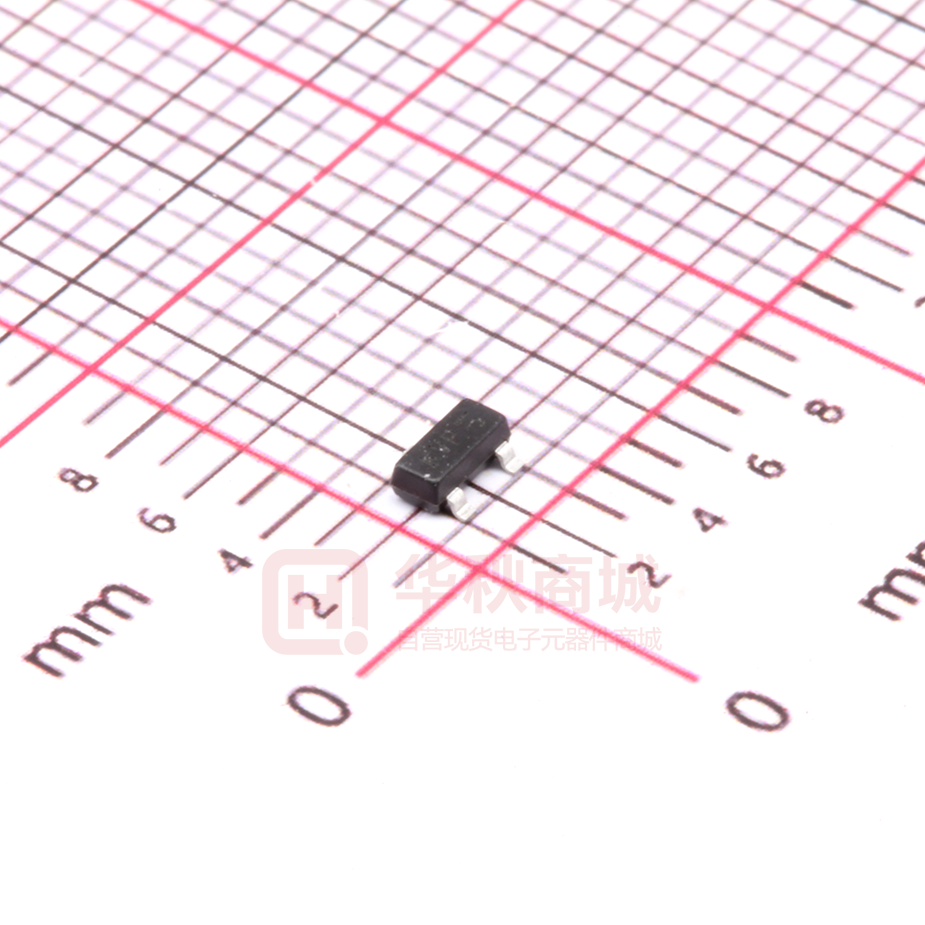

MMBZ15VDL, MMBZ27VCL
40W PEAK POWER DUAL SURFACE MOUNT TVS
Features
Mechanical Data
•
•
•
•
•
•
•
•
•
•
Dual TVS in Common Cathode Configuration for ESD Protection
40 Watt Peak Power Dissipation @1.0ms (Unidirectional)
225mW Power Dissipation
Ideally Suited for Automated Insertion
Low Leakage
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
PPAP Capable (Note 4)
•
•
•
•
Case: SOT23
Case Material: Molded Plastic.
UL Flammability Rating Classification 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Solderable per MIL-STD-202, Method 208 e3
Lead-Free Plating (Matte Tin Finish Annealed over Alloy 42
Leadframe)
Polarity: See Diagram
Weight: 0.008 grams (Approximate)
SOT23
Device Schematic
Top View
Ordering Information (Note 5 & 6)
Part Number
MMBZ15VDL-7-F
MMBZ27VCL-7-F
MMBZ15VDLQ-7-F
MMBZ27VCLQ-7-F
Notes:
Compliance
Standard
Standard
Automotive
Automotive
Case
SOT23
SOT23
SOT23
SOT23
Packaging
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
