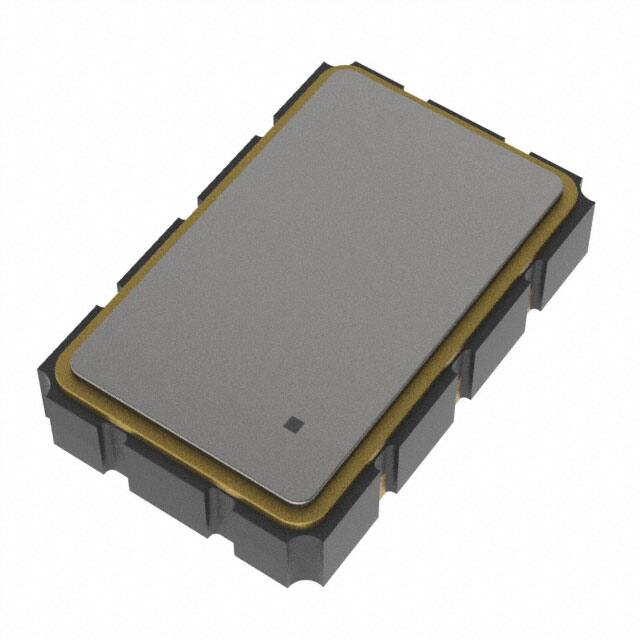

NX5427001Z

SPECIFICATION FOR APPROVAL CUSTOMER 27.000000 MHz NOMINAL FREQUENCY PRODUCT TYPE TYPE NX 5.0x3.2 SEAM SEALED CRYSTAL CLOCK OSCILLATOR NX5427001Z SPEC. NO. ( P/N ) 0 CUSTOMER P/N October 17, 2017 ISSUE DATE B VERSION APPROVED PREPARED QA Diodes Incorporated No.2, Ziqiang 5th Rd., Zhongli Industrial Park, Zhongli Dist., Taoyuan City 32063, Taiwan (R.O.C.) TEL: 886-3-451-8888 FAX: 886-3-461-3865 https://www.diodes.com E0-R-4-014 Rev. F *Pb-free *RoHS Compliant *HF-Halogen Free *REACH Compliant Page i TYPE NX 5.0x3.2 SEAM SEALED CRYSTAL CLOCK OSCILLATOR NX5427001Z VER. B 17-Oct-17 VERSION HISTORY Version No. Version Date A Apr.21,2017 Initial Release B Oct.17,2017 Updated logo E0-R-4-014 Rev. F Description Notes Page ii TYPE NX 5.0x3.2 SEAM SEALED CRYSTAL CLOCK OSCILLATOR NX5427001Z VER. B 17-Oct-17 ELECTRICAL SPECIFICATIONS SRe Part Number : Item NX5427001Z Symbol Specifications Units Nominal Frequency Fo 27.000000 MHz Frequency Stability FT ± 25 ppm Operating Temperature Range TR -40 to +85 °C Supply Voltage VCC +3.3 ± 5.0% V Logic Type LT HCSL Supply Current, Output Enabled ICC/OE 70 mA Max. Supply Current, Output Disabled ICC/OD 40 mA Max. Duty Cycle (Symmetry) DC/SY 45 / 55 % Measured 50% of Waveform TR/TF 700 ps Max. measured from Vol=0.175V to Voh=0.525V Output Voltage "0" Level VOL -0.150 / 0 V Min. / Typ. Output Voltage "1" Level VOH 0.66 / 0.70 / 0.90 V Min. / Typ. / Max. Rise / Fall Time Output Load Notes **See note Output requires termination Rs=33Ω, Rp=50Ω,CL=2pF RMS 1 ps Max. 12KHz ~ 5MHz Frequency Band Jitter, Accumulated RMS(1-σ) 6 ps Max. 20,000 Consecutive Periods Jitter, Peak to Peak Pk-Pk 40 ps Max. 100,000 Random Periods -55 to +125 °C Jitter, Phase Storage Temperature Range ※ This product doesn't include harmful substance that stipulated by SONY SS-00259 Level 1 and S-AT2-001 Level 1 standard. RoHS Compliant (Pb - Free). **Stability includes all combinations of Operating Temperature, Load changes, rated Input (Supply) Voltage changes, Initial Calibration Tolerance (25°C), Aging (1 year at 25°C Average Effective Ambient Temperature), Shock and Vibration. Output Enable / Disable Function Parameter Input Voltage (Pin1), Output Enable Min. Typ. Max. 0.7VCC V Or Open Output is Hi-Z 0.3VCC V Output Disable Delay 100 ns Output Enable Delay 100 ns Start Up Time 10 ms Input Voltage (Pin1), Output Disable (low power standby) E0-R-4-014 Rev. F Notes Units Page 1 TYPE NX 5.0x3.2 SEAM SEALED CRYSTAL CLOCK OSCILLATOR NX5427001Z VER. B 17-Oct-17 TEST CIRCUIT OUTPUT WAVEFORM E0-R-4-014 Rev. F Page 2 TYPE NX 5.0x3.2 SEAM SEALED CRYSTAL CLOCK OSCILLATOR NX5427001Z VER. B 17-Oct-17 RELIABILITY SPECIFICATIONS ENVIRONMENTAL: a) THERMAL SHOCK: MIL-STD-883, Method 1011, Condition A b) MOISTURE RESISTANCE: MIL-STD-883, Method 1004 c) VIBRATION: MIL-STD-883, Method 2007, Condition A d) RESISTANCE TO SOLDERING HEAT: J-STD-020D Table 5-2 Pb-free devices (except 2 cycles max) e) HAZARDOUS SUBSTANCE: Pb - free and RoHS/ Green Compliant. MECHANICAL: a) SHOCK: MIL-STD-883, Method 2002, Condition B b) SOLDERABILITY: JESD22-B102-D Method 2 (Preconditioning E) c) TERMINAL STRENGTH: MIL-STD-883, Method 2004, Test Condition D d) GROSS LEAK: MIL-STD-883, Method 1014, Condition C e) FINE LEAK: MIL-STD-883, Method 1014, Condition A2, R1=2x10-8 atm cc/s f) SOLVENT RESISTANCE: MIL-STD-202, Method 215 SUGGESTED IR REFLOW PROFILE *As per IPC-JEDEC J-STD-020D E0-R-4-014 Rev. F Page 3 TYPE NX 5.0x3.2 SEAM SEALED CRYSTAL CLOCK OSCILLATOR NX5427001Z VER. B 17-Oct-17 MARKING Logo Frequency Code SRe 270 Ne ywwv Dot denotes Pin #1 Date & Factory Code Ne y ww v Model Series Year Code (last digit of year) Week Code Factory Code MECHANICAL DRAWINGS ( Scale: None. Dimensions are in mm.) Recommended Land Pattern* Pin Function 1 OE NC Ground Q 2 3 4 5 6 E0-R-4-014 Rev. F Q VCC Page 4 TYPE NX 5.0x3.2 SEAM SEALED CRYSTAL CLOCK OSCILLATOR NX5427001Z VER. B 17-Oct-17 TAPE & REEL 1. 230mm minimum leafer which consist of carrier and/or tape followed by a minimum of 160mm of empty carrier tape sealed with cover tape. 2. 160mm minimum trailer of empty carrier tape sealed with cover tape. E0-R-4-014 Rev. F Page 5 TYPE NX 5.0x3.2 SEAM SEALED CRYSTAL CLOCK OSCILLATOR NX5427001Z VER. B 17-Oct-17 PACKING Begin Start Close End 500pcs-Product Tape Inner Packing Carton Blue Qualified Label Storeroom Label Storeroom Label Storeroom Label Deliver Packing Carton (L29*W24*H30) Green Qualified Label E0-R-4-014 Rev. F Page 6
