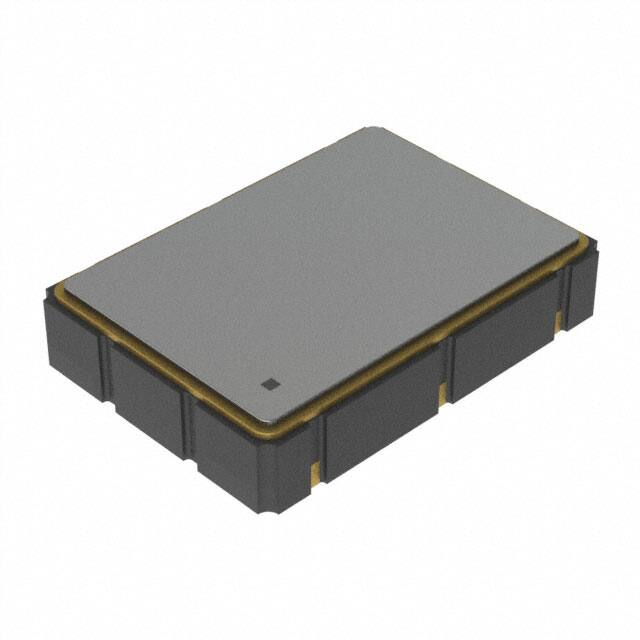

NX72V2501Z

SPECIFICATION FOR APPROVAL CUSTOMER 312.500000 MHz NOMINAL FREQUENCY PRODUCT TYPE TYPE NX 7.0x5.0 SEAM SEALED CRYSTAL CLOCK OSCILLATOR SPEC. NO. ( P/N ) NX72V2501Z CUSTOMER P/N 0 March 12, 2018 ISSUE DATE B VERSION APPROVED PREPARED Diodes Incorporated No.2, Ziqiang 5th Rd., Zhongli Industrial Park, Zhongli Dist., Taoyuan City 32063, Taiwan (R.O.C.) TEL: 886-3-451-8888 FAX: 886-3-461-3865 https://www.diodes.com E0-R-4-014 Rev. F QA *Pb-free *RoHS Compliant *HF-Halogen Free *REACH Compliant Page i TYPE NX 7.0x5.0 SEAM SEALED CRYSTAL CLOCK OSCILLATOR NX72V2501Z VER. B 12-Mar-18 VERSION HISTORY Version No. Version Date A Mar.8,2016 Initial Release B Mar.12,2018 Updated logo E0-R-4-014 Rev. F Description Notes Page ii TYPE NX 7.0x5.0 SEAM SEALED CRYSTAL CLOCK OSCILLATOR VER. B NX72V2501Z 12-Mar-18 ELECTRICAL SPECIFICATIONS SRe Part Number : NX72V2501Z Item Symbol Specifications Units Nominal Frequency Fo 312.500000 MHz Frequency Stability FT ± 50 ppm Operating Temperature Range TR -40 to +85 °C Supply Voltage VCC +2.5 ± 5.0% V Logic Type LT LVPECL Supply Current, Output Enabled ICC/OE 80 mA Max. Supply Current, Output Disabled ICC/OD 40 mA Max. Duty Cycle (Symmetry) DC/SY 45 / 55 % Measured 50% of Waveform TR/TF 500 ps Max. measured 20/80% of Waveform Rise / Fall Time Notes **See note Output Voltage "0" Level VOL VCC -1.55V V Max. Output Voltage "1" Level VOH VCC -1.2V V Min. Output Load 50Ω to VCC -2V Jitter, Phase RMS 0.5 ps Max. 12KHz ~ 20MHz Frequency Band Jitter, Accumulated RMS(1-σ) 6 ps Max. 20,000 Consecutive Periods Jitter, Peak to Peak Pk-Pk 40 ps Max. 100,000 Random Periods -55 to +125 °C Storage Temperature Range ※ This product doesn't include harmful substance that stipulated by SONY SS-00259 Level 1 and S-AT2-001 Level 1 standard. RoHS Compliant (Pb - Free). **Stability includes all combinations of Operating Temperature, Load changes, rated Input (Supply) Voltage changes, Initial Calibration Tolerance (25°C), Aging (1 year at 25°C Average Effective Ambient Temperature), Shock and Vibration. Output Enable / Disable Function Parameter Input Voltage (Pin1), Output Enable Min. Typ. Max. 0.7VCC Notes Units V Or Open 0.3VCC V Output is Hi-Z Output Disable Delay 100 ns Output Enable Delay 100 ns Start Up Time 10 ms Input Voltage (Pin1), Output Disable (low power standby) E0-R-4-014 Rev. F Page 1 TYPE NX 7.0x5.0 SEAM SEALED CRYSTAL CLOCK OSCILLATOR NX72V2501Z VER. B 12-Mar-18 TEST CIRCUIT OUTPUT WAVEFORM E0-R-4-014 Rev. F Page 2 TYPE NX 7.0x5.0 SEAM SEALED CRYSTAL CLOCK OSCILLATOR NX72V2501Z VER. B 12-Mar-18 RELIABILITY SPECIFICATIONS ENVIRONMENTAL: a) THERMAL SHOCK: MIL-STD-883, Method 1011, Condition A b) MOISTURE RESISTANCE: MIL-STD-883, Method 1004 c) VIBRATION: MIL-STD-883, Method 2007, Condition A d) RESISTANCE TO SOLDERING HEAT: J-STD-020D Table 5-2 Pb-free devices (except 2 cycles max) e) HAZARDOUS SUBSTANCE: Pb - free and RoHS/Green Compliant. MECHANICAL: a) SHOCK: MIL-STD-883, Method 2002, Condition B b) SOLDERABILITY: JESD22-B102-D Method 2 (Preconditioning E) c) TERMINAL STRENGTH: MIL-STD-883, Method 2004, Test Condition D d) GROSS LEAK: MIL-STD-883, Method 1014, Condition C e) FINE LEAK: MIL-STD-883, Method 1014, Condition A2, R1=2x10-8 atm cc/s f) SOLVENT RESISTANCE: MIL-STD-202, Method 215 SUGGESTED IR REFLOW PROFILE *As per IPC-JEDEC J-STD-020D E0-R-4-014 Rev. F Page 3 TYPE NX 7.0x5.0 SEAM SEALED CRYSTAL CLOCK OSCILLATOR VER. B NX72V2501Z 12-Mar-18 MARKING Logo SRe 312.500 Ncywwv Dot denotes Pin#1 Frequency Code Date & Factory Code Nc y ww v Model Series Year Code (last digit of year) Week Code Factory Code MECHANICAL DRAWINGS ( Scale:None. Dimensions are in mm.) Recommended Land Pattern* Pin Function 1 OE 2 NC 3 Ground 4 Q 5 Q VCC 6 (Bottom View) E0-R-4-014 Rev. F Page 4 TYPE NX 7.0x5.0 SEAM SEALED CRYSTAL CLOCK OSCILLATOR NX72V2501Z VER. B 12-Mar-18 TAPE&REEL 1. 230mm minimum leafer which consist of carrier and/or tape followed by a minimum of 160mm of empty carrier tape sealed with cover tape. 2. 160mm minimum trailer of empty carrier tape sealed with cover tape. E0-R-4-014 Rev. F Page 5 TYPE NX 7.0x5.0 SEAM SEALED CRYSTAL CLOCK OSCILLATOR VER. B NX72V2501Z 12-Mar-18 PACKING Begin Start Close End 500pcs-Product Tape Inner Packing Carton Blue Qualified Label Storeroom Label Storeroom Label Storeroom Deliver Packing Carton (L29*W24*H30) Green Qualified Label E0-R-4-014 Rev. F Page 6
