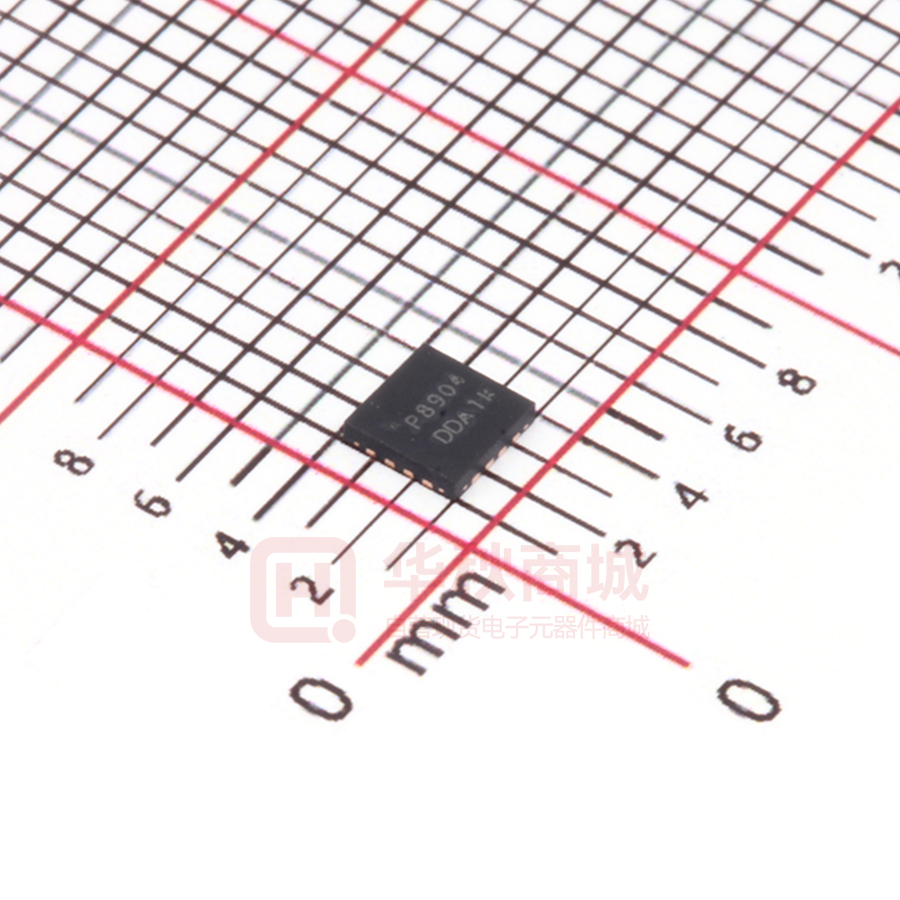

PAM8904
18VPP OUTPUT PIEZO SOUNDER DRIVER
Description
Pin Assignments
The PAM8904 is a piezo sounder driver with integrated charge pump
boost converter. The PAM8904 is capable of driving a ceramic/piezo
sounder with 24VPP from a 5.5V power supply. The charge pump can
(Top View)
NC
NC
CP1 CN2 VO1
NC
CN1 GND VO2
PAM8904 includes built-in automatic shutdown and wake up that
guarantees longer battery life. PAM8904 features thermal shutdown,
over current protection, over voltage protection and under voltage
lock-out.
NC
U-QFN3030-16 (Type B)
(Top View)
VIN
CP2
CN1
GND
VOUT
Pin 1
The PAM8904 is available in a 16-pin U-QFN3030-16 (Type B)
package, or 12-pin U-QFN3030-12 (Type A) package.
EN2
Integrated Boost Converter Generates up to 12V Supply
Input Signal 20Hz to 300kHz
No Voltage Cross Output at Shutdown Mode
Low Current Consumption
Automatic Standby and Wake-up Control
Available in Space Saving Packages 16 Pin U-QFN3030-16
(Type B) or 12 Pin U-QFN3030-12 (Type A) Package
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
An Automotive-Compliant Part is Available Under Separate
Datasheet (PAM8904Q)
CN2
Supply Voltage Range from 2.3V to 5.5V
18VPP Output from a 3V Supply
CP1
EN 1
VO1
DIN
Features
Notes:
CP2 VOUT
EN 1 EN2 DIN
The boost converter operates at a fixed frequency of 1.0MHz and
provides a 12V output with a minimum number of external
components. The PAM8904 can drive up to 15nF loading. Diodes
Incorporated’s unique drive technology provides a small inrush
current, low EMI and high efficiency.
VIN
Pin 1
operate in either a 1x, 2x or 3x mode.
VO2
U-QFN3030-12 (Type A)
Applications
Health Care Systems
Alarm Clocks
Security Devices
Home Appliances
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen and Antimony free "Green” products are defined as those which contain
