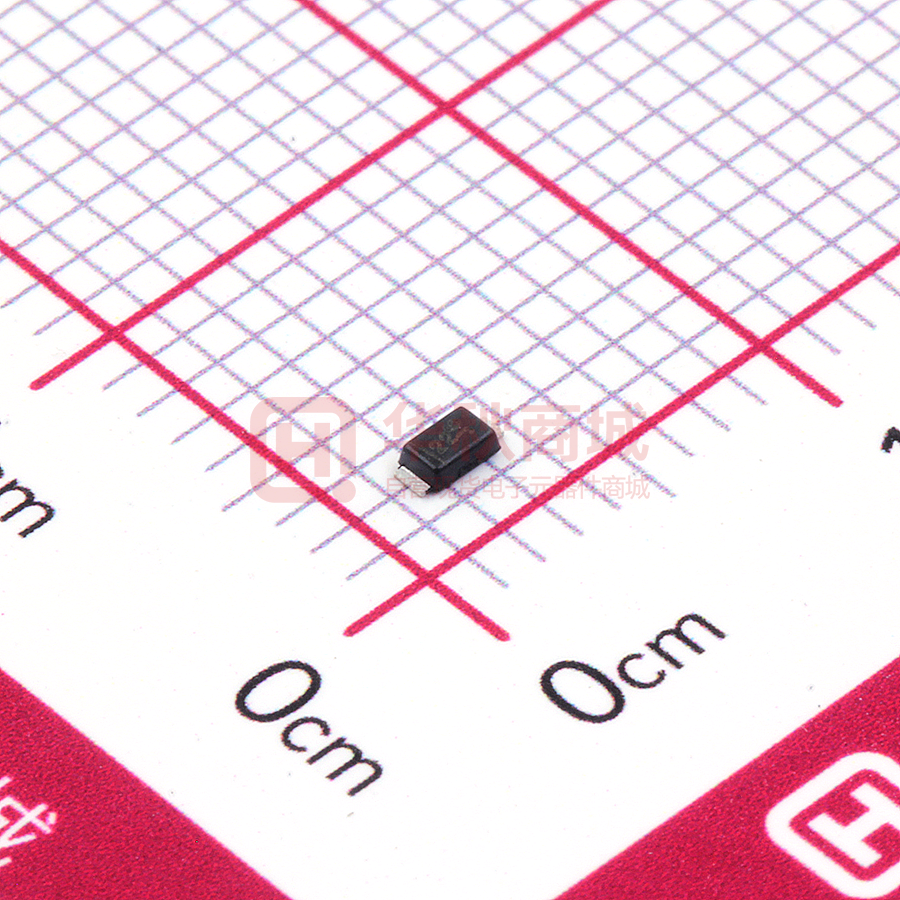

PD3S230H
Green
2.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
®
PowerDI 323
Mechanical Data
Ultra-Small Surface Mount Package
Case: PowerDI®323
Guard Ring Die Construction for Transient Protection
High Surge Capability
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Moisture Sensitivity: Level 1 per J-STD-020
Halogen and Antimony Free. “Green” Device (Note 3)
Polarity: Cathode Band
Qualified to AEC-Q101 Standards for High Reliability
Terminals: Finish - Matte Tin Annealed Over Copper
Leadframe. Solderable per MIL-STD-202, Method 208
Weight: 0.006 grams (Approximate)
Top View
Bottom View
Ordering Information (Note 4)
Part Number
PD3S230H-7
Notes:
Case
PowerDI®323
Packaging
3000/Tape & Reel
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
