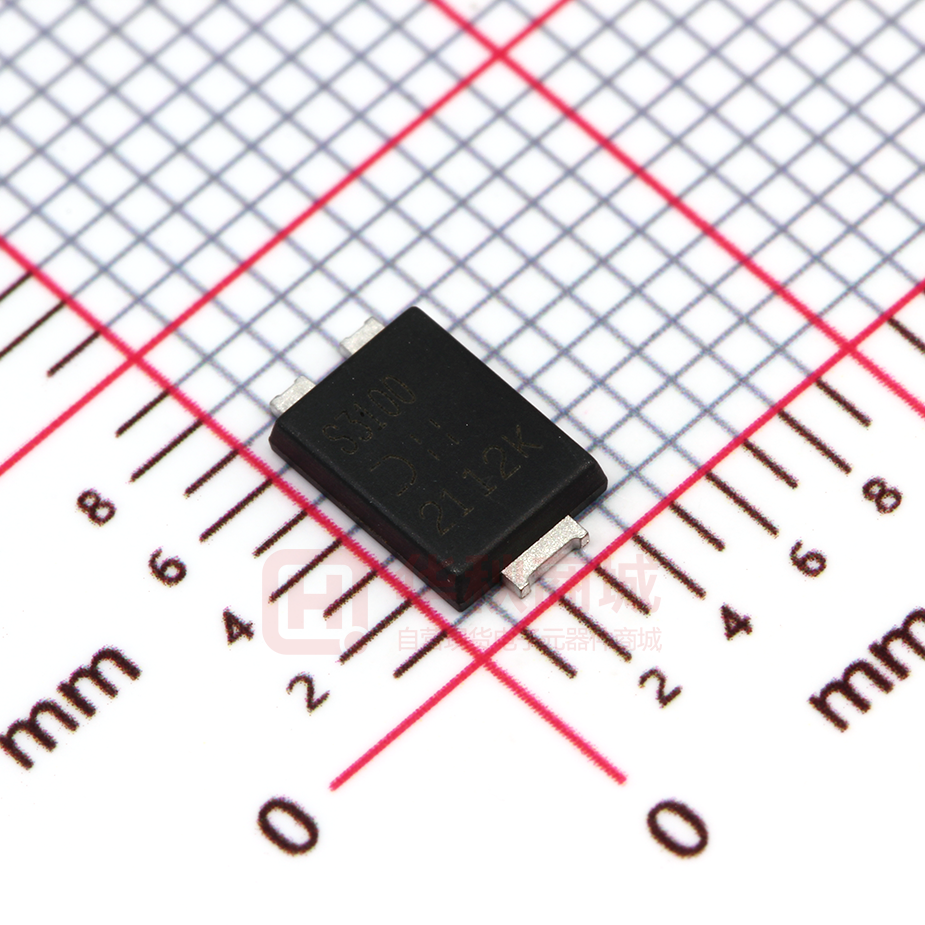

PDS3100-13

PDS3100 Green 3A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER PowerDI5 Features Mechanical Data • • • • • • • • • • Case: PowerDI 5 • Case Material: Molded Plastic, “Green” Molding Compound; UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish – Matte Tin Annealed over Copper Leadframe; Solderable per MIL-STD-202, Method 208 Polarity: See Diagram Weight: 0.093 grams (Approximate) Guard Ring Die Construction for Transient Protection Low Power Loss, High Efficiency Low Reverse Leakage Current Low Forward Voltage Drop High Forward Surge Current Capability Lead-Free Finish; RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability An Automotive-Compliant Part is Available Under Separate Datasheet (PDS3100Q) • • • • ® PowerDI5 LEFT PIN RIGHT PIN Note: Pins Left & Right must be electrically connected at the printed circuit board. Bottom View Top View BOTTOMSIDE HEAT SINK Ordering Information (Note 4) Part Number PDS3100-13 PDS3100-7 Notes: Case PowerDI5 PowerDI5 Packaging 5000/Tape & Reel 1500/Tape & Reel 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
