PDU540-13

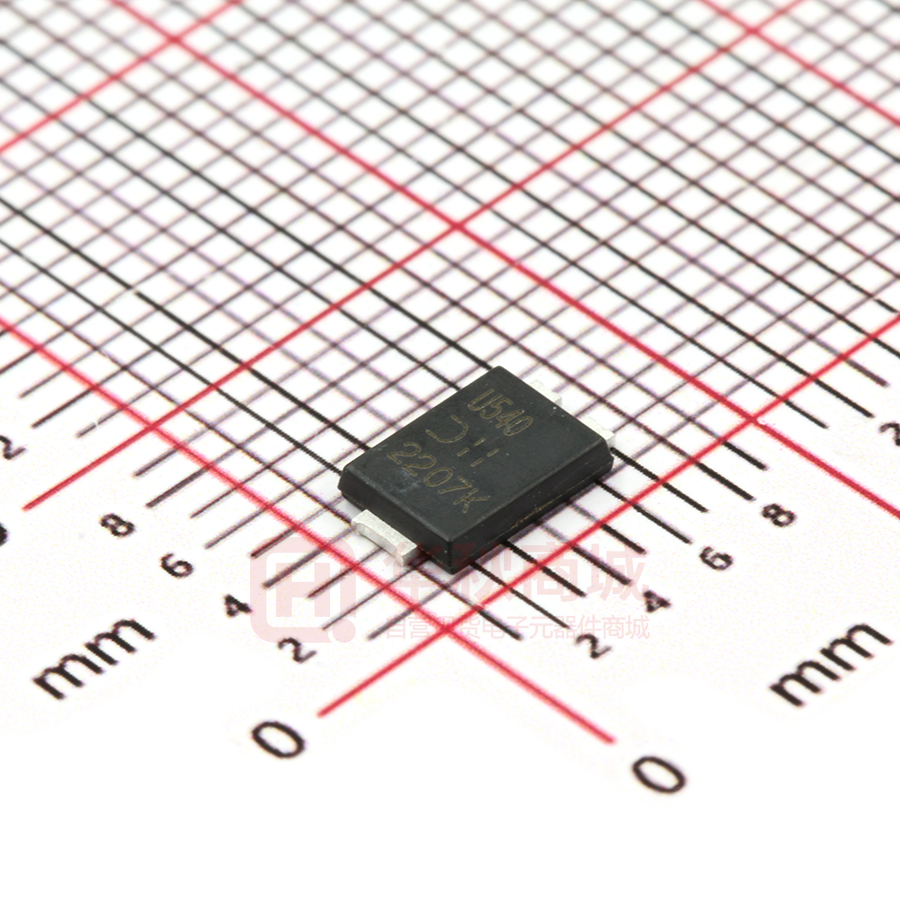

PDU540 Green 5A ULTRA-FAST RECOVERY RECTIFIER PowerDI NEW PRODUCT Product Summary (@TA = +25°C) Features and Benefits VRRM (V) IO (A) VF Max (V) IR Max (μA) 400 5 1.185 10        Glass Passivated Die Construction Ultra-Fast Recovery Time for High Efficiency High Maximum Junction Temperature For Use in High Frequency Inverters, Freewheeling and Polarity Protection Applications High Forward Surge Current Capability Lead-Free Finish; RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Description Mechanical Data PDU540, a 5.0A Glass Passivated Ultra-Fast Recovery Rectifier in our thermally efficient PowerDI5 package, offers ultra-fast recovery time for high efficiency, high forward surge current for use in high frequency inverters, freewheeling and polarity protection application.      Case: PowerDI5 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish – Matte Tin Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208 Weight: 0.096 grams (Approximate) LEFT PIN RIGHT PIN Top View Bottom View BOTTOMSIDE HEAT SINK Note: Pins Left & Right must be electrically connected at the printed circuit board. Ordering Information (Note 4) Part Number PDU540-13 Notes: Compliance Commercial Case PowerDI5 Packaging 5,000/Tape & Reel 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
