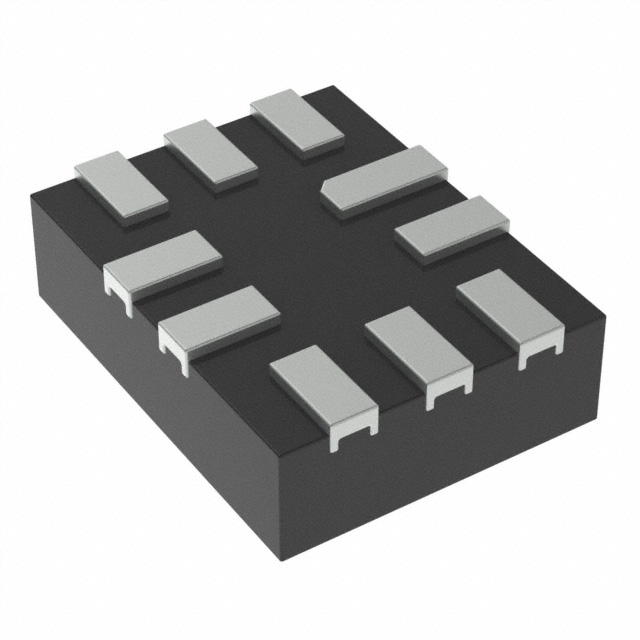

PI3A223ZMEX

PI3A223 Small Plastic Package, Dual SPDT Analog Switch Features Description         Block Diagram    Applications            Pin Description Pin Configuration (Top view) Pin# Name 1 2 3 4 5 6 7 8 9 10 VDD NO1 COM1 IN1 NC1 GND NC2 IN2 COM2 NO2 Description Positive Power Supply Data Port (Normally open) Common Output / Data Port Logic Control Data Port (Normally closed) Ground Data Port (Normally closed) Logic Control Common Output / Data Port Data Port (Normally open) Function Table Logic Input (INX) 0 1 Function NCX Connected to COMX NOX Connected to COMX Note: x = 1 or 2 PI3A223 Document Number DS40948 Rev 1-2 www.diodes.com 1 April 2018 © Diodes Incorporated PI3A223 Maximum Ratings Note: Storage Temperature………………………………….. -65℃ to +150℃ Ambient Temperature with Power Applied......................-40℃ to +85℃ Supply Voltage VDD………………………………………-0.5Vto +4.6V Control Input Voltage VINx………………………………….0Vto +4.6V DC Input Voltage VINPUT…………………………………-0.5Vto +4.6V Continuous Current NO_NC_COM_……………………..……±300mA Peak Current NO_NC_COM_ (pulsed at 1ms 50% duty cycle) ……………………….….. ±400mA Peak Current NO_NC_COM_ (pulsed at 1ms 10% duty cycle) ……………………….….. ±500mA ESD(HBM) ………………………………………………………….4kV Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability. The input and output negative voltage ratings may be exceeded if the input and output diode current ratings are observed. Control input must be held HIGH or LOW; it must not float. Recommended Operating Conditions Symbol VDD VIN VINPUT TA tr, tf Parameter Operating Voltage Control Input Voltage Switch Input Voltage Operating Temperature Input Rise and Fall Time Conditions - Min. 1.8 0 -0.3 -40 0 Typ. 25 - Max. 4.2 VDD 4.2 85 10 Unit V V V °C ns/V DC Electrical Characteristics +3.0V Supply (VDD = 2.7V to 3.6V, VIH=+1.6V, VIL=+0.4V, TA = –40°C to 85°C, unless otherwise noted. Typical values are at 3.0V and +25°C.) Parameter ANALOG SWITCH Symbol Analog Signal Range VNO, VNC, VCOM On-Resistance On-Resistance Match Between Channels On-Resistance Flatness Source Off Leakage Current Channel On Leakage Current RON ΔRON RONF IOFF (NO) or IOFF (NC) INC(ON), INO(ON), ICOM (ON) DIGITAL INPUTS Input Logic High VIH Input Logic Low VIL IN Input Leakage IIN Current DYNAMIC CHARACTERISTICS Turn-On Time tON Turn-Off Time tOFF Break-Before-Make PI3A223 Document Number DS40948 Rev 1-2 tD Test Conditions TEMP Min. Typ. Max. Units - -40 °C to 85 °C 0 - VDD V VDD = 2.7V, ICOM = 100mA, VNO or VNC =1V, Test Circuit 1 +25°C -40 °C to 85 °C +25°C -40 °C to 85 °C +25°C -40 °C to 85 °C - 0.55 0.55 0.05 0.05 0.1 0.1 0.9 1 0.22 0.25 0.22 0.26 Ω -40 °C to 85 °C - - 1 VDD = 2.7V, ICOM = 100mA, VNO or VNC =1V, Test Circuit 1 VDD = 2.7V, ICOM = 100mA, VNO or VNC = 1V, 2.5V, Test Circuit 1 VDD=3.6V, VNO or VNC = 3.3V/0.3V, VCOM = 0.3V/3.3V Ω Ω μA VDD = 3.6V, VNO or VNC = 3V/ 0.3V, VCOM = 3V/0.3V, or floating -40 °C to 85 °C - - 1 - -40 °C to 85 °C -40 °C to 85 °C 1.2 - - 0.5 VDD = 2.7V, VIN=0 or 2.7V -40 °C to 85 °C - - 1 +25°C - 16 - ns +25°C - 60 - ns +25°C - 10 - ns VIH=1.5V, VIL=0V, See Test Circuit Figure 2. VIH=1.5V, VIL=0V, See Test Circuit Figure 2. VIH=1.5V, VIL=0V, www.diodes.com 2 April 2018 © Diodes Incorporated V μA PI3A223 Parameter Delay COM-NC/NO and Symbol OISO NC-NO Isolations Channel-to-Channel Crosstalk XTALKD 3dB Bandwidth f3dB Charge Injection Select Input to Common I/O Q Test Conditions See Test Circuit Figure 3. TEMP Min. Typ. Max. Units VBIAS=1.5V, VIN=0dBm, VIH=1.5V, VIL=0V. See Test Circuit Figure 4 & Figure 5. 100kHz +25°C - -81 - 1MHz +25°C - -61 - 10MHz +25°C - -39 - VBIAS = 1.5V, VDD=0dBm, VIH=1.5V, VIL=0V See Test Circuit Figure 6. 100kHz +25°C - -108 - 1MHz +25°C - -110 - 10MHz +25°C - -90 - +25°C - 79 - MHz +25°C - 35 - pC VBIAS = 1.5V, VIN=0dBm, VIH=1.5V, VIL=0V. See Test Circuit Figure 7. VIN = GND, RS = 0, CL = 1nF, VIH=1.5V, VIL=0V See Test Circuit Figure 8. dB dB +4.2V Supply (VDD = 4.2V, TA = –40°C to 85°C, unless otherwise noted. Typical values are at 4.2V and +25°C.) Parameter ANALOG SWITCH Analog Signal Range On-Resistance On-Resistance Match Between Channels On-Resistance Flatness Source Off Leakage Current Channel On Leakage Current Symbol VNO, VNC, VCOM RON ΔRON RONF IOFF (NO) or IOFF (NC) INC(ON), INO(ON), ICOM (ON) DIGITAL INPUTS Input Logic High VIH Input Logic Low VIL IN Input Leakage IIN Current DYNAMIC CHARACTERISTICS Turn-On Time tON Turn-Off Time tOFF Break-Before-Make Delay COM-NC/NO and NC-NO Isolations Channel-to-channel Crosstalk tD OISO XTALK PI3A223 Document Number DS40948 Rev 1-2 Test Conditions TEMP Min. Typ. Max. Units - -40 °C to 85 °C 0 - VDD V VDD = 4.2V, ICOM = 100mA, VNO or VNC =1V, Test Circuit 1 +25°C -40 °C to 85 °C +25°C -40 °C to 85 °C +25°C -40 °C to 85 °C - 0.45 0.45 0.05 0.05 0.1 0.1 0.75 0.85 0.18 0.23 0.22 0.26 Ω -40 °C to 85 °C - - 1 VDD = 4.2V, ICOM = 100mA, VNO or VNC =1V, Test Circuit 1 VDD = 4.2V, ICOM = 100mA, VNO or VNC = 1V, 2.5V, Test Circuit 1 VDD= 4.2V, VNO or VNC = 3.3V/0.3V, VCOM = 0.3V/3V Ω Ω μA VDD = 4.2V, VNO or VNC = 3V/ 0.3V, VCOM = 3V/0.3V, or floating -40 °C to 85 °C - - 1 - -40 °C to 85 °C -40 °C to 85 °C 1.2 - - 0.5 VDD = 4.2V, VIN=0 or 4.2V -40 °C to 85 °C - - 1 +25°C - 13 - ns +25°C - 38 - ns +25°C - 8 - ns VIH=3V, VIL=0V, See Test Circuit Figure 2. VIH=3V, VIL=0V, See Test Circuit Figure 2. VIH=3V, VIL=0V, See Test Circuit Figure 3. VBIAS = 2.1V, VIN=0dBm, VIH=3V, VIL=0V. See Test Circuit Figure 4 & Figure 5. 100kHz +25°C - -83 - 1MHz +25°C - -61 - 10MHz +25°C - -39 - VBIAS = 2.1V, VIN=0dBm, VIH=3V, VIL=0V See Test Circuit 100kHz +25°C - -108 - 1MHz +25°C - -110 - V μA dB dB www.diodes.com 3 April 2018 © Diodes Incorporated PI3A223 Parameter Symbol Test Conditions TEMP Min. Typ. Max. +25°C - -90 - +25°C - 84 - MHz +25°C - 50 - pC - -40 °C to 85 °C 1.8 - 4.2 V VDD=4.2V, VIN=0V or VDD -40 °C to 85 °C - - 1 μA Min. - Typ. 20 20 55 55 Max. - Units Figure 6. 3dB Bandwidth f3dB Charge Injection Select Input to Q Common I/O POWER REQUIREMENTS Power Supply Range VDD Power Supply ICC Current 10MHz VBIAS = 2.1V, VIN=0dBm, VIH=3V, VIL=0V. See Test Circuit Figure 7. VIN = GND, RS = 0, CL = 1nF, VIH=3V, VIL=0V See Test Circuit Figure 8. Units Capacitance Parameter NC Off Capacitance NO Off Capacitance NC On Capacitance NO On Capacitance Symbol CNC (OFF) CNO (OFF) CNC (ON) CNO (ON) PI3A223 Document Number DS40948 Rev 1-2 Test Conditions f = 1MHz, See Test Circuit Figure 9. f = 1MHz, See Test Circuit Figure 9. f = 1MHz, See Test Circuit Figure 10. f = 1MHz, See Test Circuit Figure 10. www.diodes.com 4 April 2018 © Diodes Incorporated pF PI3A223 Test Circuits and Timing Diagrams Figure 1. On Resistance Notes: 1. Unused input (NC or NO) must be grounded. VDD VDD NO NC Figure 2. Switching Times VDD Figure 3. Break Before Make Interval Timing PI3A223 Document Number DS40948 Rev 1-2 www.diodes.com 5 April 2018 © Diodes Incorporated PI3A223 VDD VDD Figure 4. COM-NC/NO Isolation Figure 5. NC-NO Isolation PI3A223 Document Number DS40948 Rev 1-2 www.diodes.com 6 April 2018 © Diodes Incorporated PI3A223 VDD 10nF VDD Figure 6. Channel-to-Channel Crosstalk Figure 7. Bandwidth Figure 8. Charge Injection PI3A223 Document Number DS40948 Rev 1-2 www.diodes.com 7 April 2018 © Diodes Incorporated PI3A223 Figure 9. Channel Off Capacitance Figure 10. Channel On Capacitance Part Marking ZM Package 10 1 2 Document Number DS40948 Rev 1-2 8 GH YW 3 PI3A223 9 4 Shortened Part No 7 6 Shortened Date Code 5 www.diodes.com 8 April 2018 © Diodes Incorporated PI3A223 Packaging Mechanical 10-UQFN (ZM) Ordering Information Part Number Packaging Code Package Description PI3A223ZMEX ZM 10-Contact, Ultra-thin Quad Flat No-Lead (UQFN) Notes:  EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. All applicable RoHS exemptions applied.  See http://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, “Green” and Lead-free.  Thermal characteristics can be found on the company web site at www.diodes.com/design/support/packaging/  E = Pb-free and Green  X suffix = Tape/Reel PI3A223 Document Number DS40948 Rev 1-2 www.diodes.com 9 April 2018 © Diodes Incorporated PI3A223 IMPORTANT NOTICE DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION). Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated website, harmless against all damages. Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel. Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized application. Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings noted herein may also be covered by one or more United States, international or foreign trademarks. This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the final and determinative format released by Diodes Incorporated. LIFE SUPPORT Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express written approval of the Chief Executive Officer of Diodes Incorporated. As used herein: A. Life support devices or systems are devices or systems which: 1. are intended to implant into the body, or 2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the labeling can be reasonably expected to result in significant injury to the user. B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or to affect its safety or effectiveness. Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems. Copyright © 2016, Diodes Incorporated www.diodes.com PI3A223 Document Number DS40948 Rev 1-2 www.diodes.com 10 April 2018 © Diodes Incorporated
