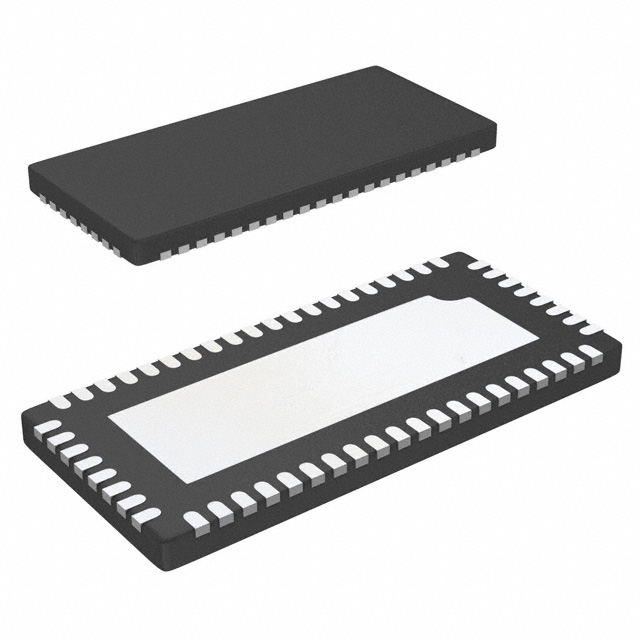

PI3HDMI201ZFEX

ADVANCE INFORMATION - COMPANY CONFIDENTIAL PI3HDMI201 2:1 Active HDMI™ Compatible Switch with Optimized Equalization for Enhanced Signal Integrity Features Description • • • • • • Pericom Semiconductor’s PI3HDMI201 2:1 active switch circuit is targeted for high-resolution video networks that are based on DVI/HDMI™ standards and TMDS signal processing. The PI3HDMI201 is an active 2 TMDS to 1 TMDS receiver switch with Hi-Z outputs. The device receives differential signals from selected video components and drives the video display unit. It provides three controllable output swings. The allowable output swings are 500mV, 750mV and 1000mV. This solution also provides a unique advanced pre-emphasis technique to increase rise and fall times which are reduced during transmission across long distances. Each complete HDMI/DVI channel also has slower speed, side band signals, that are required to be switched. Pericom’s solution provides a complete solution by integrating the side band switch together with the high speed switch in a single solution. Using Equalization at the input of each of the high speed channels, Pericom can successfully eliminate deterministic jitter caused by long cables from the source to the sink. The elimination of the deterministic jitter allows the user to use much longer cables (up to 25 meters). The maximum DVI/HDM Bandwidth of 2.5 Gbps provides 36bit DeepColor™ support, which is offered by HDM revision 1.3. Due to its active uni-directional feature, this switch is designed for usage only for the video receiver’s side. For consumer video networks, the device sits at the receiver’s side to switch between multiple video components, such as PC, DVD, STB, D-VHS, etc. The PI3HDMI201 also provides enhanced robust ESD/EOS protection of ±6kV, which is required by many consumer video networks today. The Optimized Equalization provides the user a single optimal setting that can provide HDMI compliance in regards to jitter for all cable lengths: 1meter to 20meters and color depths of 8bit/ch, or 12bit/ch. Pericom also offers the ability to fine tune the equalization settings in situations where cable length is known. For example, if 25meter cable length is required, Pericom's solution can be adjusted to 16dB EQ to accept 25meter cable length. • • • • • • • • • • • • • Supply voltage, VDD = 3.3V ±5% Each Port can support DVI or HDMI™ signals Supports both AC-coupled and DC-coupled inputs Supports DeepColor™ High Performance, up to 2.5 Gbps per channel Switching support for 3 side band signals (SCL, SDA and HPD) 5V Tolerance on all side band signals SCL, SDA, and HPD pins are the only pins that can support HOT INSERTION Integrated 50-Ohm (±10%) termination resistors at each high speed signal input TMDS input termination control on all high speed inputs HDCP reset circuitry for quick communication when switching from one port to another Configurable output swing control (500mV, 750mV, 1000mV) Configurable Pre-Emphasis levels (0dB, 1.5dB, 3.5dB, & 6.0dB) Configurable De-Emphasis (0dB, -3.5dB, -6.0dB, -9.5dB) Optimized Equalization Single default setting will support all cable lengths ESD spec on all input TMDS pins is ±6kV per IEC61000-4-2 Propagation delay ≤ 2ns High Impedance Outputs when disabled Packaging (Pb-free & Green): 56-contact TQFN (ZF56) All trademarks are property of their respective owners. 1 09-0017 PS8957B 07/29/09 ADVANCE INFORMATION - COMPANY CONFIDENTIAL PI3HDMI201 2:1 Active HDMI™ Compatible Switch with Optimized Equalization for Enhanced Signal Integrity GND SCLA SDAA HPDA OE SEL1 53 52 51 50 49 CLK-A 55 54 CLK+A 56 Pin Configuration (Top View) VDD 1 48 VDD D0-A 2 47 HPD_Sink D0+A 3 46 SDA_sink GND 4 45 SCL_sink D1-A 5 44 GND D1+A 6 43 CLK- VDD 7 42 CLK+ D2-A 8 41 VDD D2+A 9 40 D0- GND GND 10 39 D0+ CLK-B 11 38 GND CLK+B 12 37 D1- VDD 13 36 D1+ 29 OC_S2 28 20 EQ_S0 OC_S1 D2-B 27 30 SEL2 19 26 OC_S0 VDD 25 31 SCLB 18 EQ_S1 GND D1+B 24 D1-B 32 SDAB D2+ 17 HPDB GND 33 23 D2- 16 22 VDD 34 21 35 15 GND 14 D2+B D0-B D0+B Receiver Block Each input has integrated equalization that can eliminate deterministic jitter caused by 25meter 24AWG cables. All activity can be configured using pin strapping. The Rx block is designed to receive all relevant signals directly from the HDMITM connector without any additional circuitry, 3 High speed TMDS data, 1 pixel clock, 1 HPD signal, and DDC signals. TMDS channels have following termination scheme for Rx Sense support. AVdd R2 250K-Ohm R1 CLKx+/-, Dx+/- x = A or B All trademarks are property of their respective owners. 2 09-0017 PS8957B 07/29/09 ADVANCE INFORMATION - COMPANY CONFIDENTIAL PI3HDMI201 2:1 Active HDMI™ Compatible Switch with Optimized Equalization for Enhanced Signal Integrity Pin Description Pin # Pin Name I/O 3 6 9 56 D0+A D1+A D2+A CLK+A I Port A TMDS Positive inputs 15 18 21 12 D0+B D1+B D2+B CLK+B I Port B TMDS Positive inputs 2 5 8 55 D0-A D1-A D2-A CLK-A I Port A TMDS Negative inputs 14 17 20 11 D0-B D1-B D2-B CLK-B I Port B TMDS Negative inputs 4, 10, 16, 22, 32, 38, 44, 54 GND 51 HPDA O Port A HPD output 23 HPDB O Port B HPD output 47 HPD_Sink I Sink side hot plug detector input. 50 OE I Output Enable, Active LOW 53 SCLA I/O Port A DDC Clock 25 SCLB I/O Port B DDC Clock 45 SCL_Sink I/O Sink Side DDC Clock 52 SDAA I/O Port A DDC Data 24 SDAB I/O Port B DDC Data 46 SDA_Sink I/O Sink Side DDC Data 49 SEL1 I 1, 7, 13, 19, 35, 41, 48 VDD 39 36 33 42 D0+ D1+ D2+ CLK+ O TMDS positive outputs 40 37 34 43 D0D1D2CLK- O TMDS negative outputs 28 26 EQ_S0 EQ_S1 I Equalizer controls, Internal pull-ups are added to both. 31 30 29 OC_S0 OC_S1 OC_S2 I Output buffer controls Note: all 3 pins have internal pull-ups 27 SEL2 I Source Input Selector (See Truth Table) All trademarks are property of their respective owners. Description Ground Source Input Selector (See Truth Table) 3.3V Power Supply 3 09-0017 PS8957B 07/29/09 ADVANCE INFORMATION - COMPANY CONFIDENTIAL PI3HDMI201 2:1 Active HDMI™ Compatible Switch with Optimized Equalization for Enhanced Signal Integrity Switch Block Diagram CLK+A CLK-A R1 R2 R2 R1 R2 R2 R2 V DD R e c e iv e r with E Q V DD R e c e iv e r with E Q V DD R e c e iv e r with E Q V DD VDD R1 R1 R2 ... CLK+B R1 R2 R2 R e c e iv e r with E Q R2 R2 D0+A R1 R1 R1 EQ_S1 D0-A D1+A D1-A D2+A D2-A EQ_S0 R1 R e c e iv e r with E Q R1 OC_S0 CLK-B R2 R2 D0+B OC_S1 OC_S2 OC_S3 V DD R1 2-to-1 R e c e iv e r with E Q R1 MUX D0-B R2 R2 TDMS Drive D0- V DD TDMS Drive R1 R e c e iv e r with E Q D1+ D1- ... D1+B R1 D0+ D1-B R2 R2 D2+B V DD TDMS Drive R1 R1 R e c e iv e r with E Q D2+ D2- CLK+ D2-B TDMS Drive CLK- OE SEL1 SEL2 HPDA HPD_SINK Control Logic HPDB SCLA SDAA SCL_SINK SDA_SINK SCLB SDAB All trademarks are property of their respective owners. 4 09-0017 PS8957B 07/29/09 ADVANCE INFORMATION - COMPANY CONFIDENTIAL PI3HDMI201 2:1 Active HDMI™ Compatible Switch with Optimized Equalization for Enhanced Signal Integrity Truth Table OE SEL1 SEL2 0 1 X 0 0 1 0 0 0 1 X X Function for TMDS output HPDA HPDB HPD_sink L L HPD_sink L L Follow SEL1 and SEL2 Follow SEL1 and SEL2 Port A is active & TMDS Rx Termination on Port B goes to 250K-Ohm Port B is active, & TMDS Rx Termination on Port A goes to 250K-Ohm All TMDS outputs & TMDS inputs are Hi-Z, SCL/SDA (Port A & B) are off All TMDS outputs are Hi-Z OC Setting Value Logic Table Input Control Pins OC_S2 OC_S1 1 1 1 Setting Value Vswing (mV) Pre-emphasis (dB) 1 500 0 1 0 750 0 1 0 1 1000 0 1 0 0 600 0 0 1 1 500 0 0 1 0 500 1.5 0 0 1 500 3.5 0 0 0 500 6 (1) (1) OC_S0 (1) Note: 1. Integrated pull-ups EQ Setting Value Logic Table for high speed data bits (TMDS CLK input is left at 3dB default always) EQ_S1(1) 0 0 1 EQ_S0(1) 0 1 0 1 1 Setting Value 15dB on all high speed data inputs 3dB on all high speed data inputs 8dB on all high speed data inputs Optimized Equalization on all high speed data inputs (Default setting which can support all cable lengths from 1meter to 20meters) Notes: 1) Integrated internal pull-ups All trademarks are property of their respective owners. 5 09-0017 PS8957B 07/29/09 ADVANCE INFORMATION - COMPANY CONFIDENTIAL PI3HDMI201 2:1 Active HDMI™ Compatible Switch with Optimized Equalization for Enhanced Signal Integrity Maximum Ratings (Above which useful life may be impaired. For user guidelines, not tested.) Storage Temperature .................................................... –65°C to +150°C Supply Voltage to Ground Potential................................–0.5V to +4.0V DC Input Voltage ...............................................................–0.5V to VDD DC Output Current....................................................................... 120mA Power Dissipation ........................................................................... 1.0W Note: Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability. Recommended Operating Conditions Symbol VDD TA Parameter Min. Typ. Max. Units Supply Voltage 3.135 3.3 3.465 V 0 70 °C 150 1560 mVp-p 2 VDD + 0.01 V Operating free-air temperature TMDS Differential Pins (DX±A, DX±B, CLK±A, CLK±B) VID Receiver peak-to-peak differential input voltage VIC Input common mode voltage VDD TMDS output termination voltage RT 3.135 3.3 3.465 V Termination resistance 45 50 55 Ohm Signaling rate 0 2.5 Gbps Control Pins (OC_Sx, EQ_Sx, SEL, OE) VIH LVTTL High-level input voltage 2 VDD VIL LVTTL Low-level input voltage GND 0.8 GND 5.5 V DDC Pins (SCL, SCL_SINK, SDA, SDA_SINK) VI(DDC) Input voltage V Status Pins (HPD_SINK) VIH LVTTL High-level input voltage 2 5.3 VIL LVTTL Low-level input voltage GND 0.8 All trademarks are property of their respective owners. 6 09-0017 V PS8957B 07/29/09 ADVANCE INFORMATION - COMPANY CONFIDENTIAL PI3HDMI201 2:1 Active HDMI™ Compatible Switch with Optimized Equalization for Enhanced Signal Integrity TMDS Compliance Test Results HDMITM 1.3 Spec Pericom Product Spec Termination Supply Voltage, VDD 3.3V ≤ 5% 3.30 ± 5% Terminal Resistance 50-Ohm ± 10% 45 to 55-Ohm Single-ended high level output voltage, VH VDD ± 10mV VDD ±10mV Single-ended low level output voltage, VL ( VDD - 600mV) ≤ VL ≤ ( VDD - 400mV) ( VDD - 600mV) ≤ VL ≤ ( VDD - 400mV) Single-ended output swing voltage, Vswing 400mV ≤ Vswing ≤ 600mV 400mV ≤ Vswing ≤ 600mV Single-ended standby (off) output voltage, Voff VDD ± 10mV VDD ± 10mV Risetime/Falltime (20%-80%) 75ps ≤ Risetime/Falltime ≤ 0.4 Tbit (75ps ≤ tr/tf ≤ 242ps) @ 1.65 Gbps 240ps Intra-Pair Skew at Transmitter Connector, max 0.15 Tbit (90.9ps @ 1.65 Gbps) 60ps max Inter-Pair Skew at Transmitter Connector, max 0.2 Tpixel (1.2ns @ 1.65 Gbps) 100ps max Clock Jitter, max 0.25 Tbit (151.5ps @ 1.65 Gbps) 82ps max Input Differential Voltage Level, Vdiff 150 ≤ Vdiff ≤ 1200mV 150mV ≤ VDIFF ≤ 1200mV Input Common Mode Voltage Level, VICM ( VDD - 300mV) ≤ Vicm ≤ ( VDD-37.5mV) Or VDD ±10% ( VDD - 300mV) ≤ Vicm ≤ ( VDD-37.5mV) Or VDD ±10% Item Operating Conditions Source DC Characteristics at TP1 Transmitter AC Characteristics at TP1 Sink Operating DC Characteristics at TP2 Sink DC Characteristics When Source Disabled or Disconnected at TP2 Differential Voltage Level All trademarks are property of their respective owners. VDD ± 10mV 7 VDD ±10mV 09-0017 PS8957B 07/29/09 ADVANCE INFORMATION - COMPANY CONFIDENTIAL PI3HDMI201 2:1 Active HDMI™ Compatible Switch with Optimized Equalization for Enhanced Signal Integrity Electrical Characteristics (over recommended operating conditions unless otherwise noted) Symbol Parameter ICC Supply Current PD Power Dissipation ICCQ Standby Current Test Conditions Min. VIH = VDD, VIL = VDD - 0.4V, RT = 50-Ohm, VDD = 3.3V, OC_SX = LOW, x = 0, 1, 2 OE = HIGH, SEL1 = Low, SEL2 = Low, VDD=3.3V Typ.(1) Max. Units 120 mA 400 mW 8 mA TMDS Differential Pins (DX±A, DX±B, DX±, CLK±A, CLK±B, CLK±) VOH Single-ended high-level output voltage VDD10 VDD + 10 VOL Single-ended low-level output voltage VDD - 600 VDD - 400 400 600 Vswing Single-ended output swing voltage VOD(O) Overshoot of output differential voltage VDD = 3.3V, RT = 50-Ohm Pre-emphasis/De-emphasis = 0dB mV 6% 15% VOD(U) Undershoot of output differential voltage 12% 25% ΔVOC(SS) Change in steady-state common-mode output voltage between logic states 0.5 5 mV 12 mA |I(OS)| Short circuit output current 2x Vswing VODE(SS) Steady state output differential voltage 560 840 VODE(PP) OC_Sx = GND, Dx±AB = 250 Mbps HDMITM data pattern, Peak-to-peak output differential voltage X = 0, 1, 2 CLK±A, B = 25 MHz clock 800 1200 Single-ended input voltage under high impedance input or open input II = 10μA VDD - 10 VDD + 10 mV Input termination resistance VIN = 2.9V 45 55 Ohm VI(open) RINT 50 mVp-p DDC I/O Pins (SCL, SCL_SINK, SDA, SDA_SINK) VI = 5.5V -50 50 VI = VDD -20 20 |Ilkg| Input leakage current CIO Input/output capacitance VI = 0V RON Switch resistance IO = 3mA, VO = 0.4V Switch output voltage VI = 3.3V, II = 100μA VPASS 7.5 1.5 (2) μA pF 25 50 2.0 2.5 (3) Ohm V Status Pins (HPD) VOH(TTL) TTL High-level output voltage IOH = -4mA VOL(TTL) TTL Low-level output voltage IOL = 4mA 2.4 V 0.4 V (Table Continued) All trademarks are property of their respective owners. 8 09-0017 PS8957B 07/29/09 ADVANCE INFORMATION - COMPANY CONFIDENTIAL PI3HDMI201 2:1 Active HDMI™ Compatible Switch with Optimized Equalization for Enhanced Signal Integrity Electrical Characteristics (Continued) Symbol Parameter Test Conditions Min. Typ.(1) Max. Units Control Pins (SEL, OE) |IIH| High-level digital input current |IIL| Low-level digital input current VIH= 2.0V or VDD -10 10 -10 10 VIH = 5.3V -50 50 VIH = 2.0V or VDD -10 10 VIL = GND or 0.8V -10 10 VIL = GND or 0.8V μA Status Pins (HPD_SINK) |IIH| High-level digital input current |IIL| Low-level digital input current μA Notes: 1. All typical values are at 25°C and with a 3.3V supply. 2. The value is tested in full temperature range at 3.0V. 3. The value is tested in full temperature range at 3.6V. All trademarks are property of their respective owners. 9 09-0017 PS8957B 07/29/09 ADVANCE INFORMATION - COMPANY CONFIDENTIAL PI3HDMI201 2:1 Active HDMI™ Compatible Switch with Optimized Equalization for Enhanced Signal Integrity Switching Characteristics (over recommended operating conditions unless otherwise noted) Symbol Parameter Test Conditions Min. Typ.(1) Max. Units TMDS Differential Pins (Dx±, CLK±) tpd Propagation delay 2000 tr Differential output signal rise time (20% - 80%) tf Differential output signal fall time (20% - 80%) tsk(p) Pulse skew tsk(D) Intra-pair differential skew tsk(o) Inter-pair differential skew tjit(pp) Peak-to-peak output jitter from CLK± residual jitter tjit(pp) Peak-to-peak output jitter from Dx± residual jitter VDD = 3.3V, RT = 50-Ohm, pre-emphasis/de-emphasis = 0dB 75 240 75 240 10 50 23 50 100 (2) pre-emphasis/de-emphasis = 0dB, Dx±A, B = 1.65 Gbps HDMITM data pattern, x = 0, 1, 2 CLK±A, B = 165 MHz clock de-emphasis = -3.5dB, Dx±A, B = 250 Mbps HDMITM data pattern, x = 0, 1, 2 CLK±A, B = 25 MHz clock 15 30 18 50 tDE De-emphasis duration tSX Select to switch output 10 ten Enable time 200 tdis Disable time 10 ps 240 ns DDC I/O Pins (SCL, SCL_SINK, SDA, SDA_SINK) tpd(DDC) Propagation delay from SCLn to SCL_SINK or SDAn to SDA_SINK or SDA_SINK to SDAn CL = 10pF 0.4 2.5 2 6.0 ns Control and Status Pins (SEL, HPD_SINK, HPD) tpd(HPD) tsx(HPD) Propagation delay (from HPD_SINK to the active port of HPD) Switch time (from port select to the latest valid status of HPD) CL = 10pF ns 3 6.5 Notes: 1. All typical values are at 25°C and with a 3.3V supply. 2. tsk(o) is the magnitude of the difference in propagation delay times between any specified terminals of channel 2 to 4 of a device when inputs are tied together. Application Information Supply Voltage All VDD pins are recommended to have a 0.1μF capacitor tied from VDD to GND to filter supply noise TMDS inputs Standard TMDS terminations have already been integrated into Pericom’s PI3HDMI201 device. Therefore, external terminations are not required. Any unused port must be left floating and not tied to GND. All trademarks are property of their respective owners. 10 09-0017 PS8957B 07/29/09 ADVANCE INFORMATION - COMPANY CONFIDENTIAL PI3HDMI201 2:1 Active HDMI™ Compatible Switch with Optimized Equalization for Enhanced Signal Integrity TMDS output oscillation elimination The TMDS inputs do not incorporate a squelch circuit. Therefore, we recommend the input to be externally biased to prevent output oscillation. One pin will be pulled high to VDD with the other grounded through a 1.5KOhm resistor as shown. VDD RINT RINT TMDS Receiver ss TMDS Driver RT AVDD ss RT 1.5Kohm TMDS Input Fail-Safe Recommendation All trademarks are property of their respective owners. 11 09-0017 PS8957B 07/29/09 ADVANCE INFORMATION - COMPANY CONFIDENTIAL PI3HDMI201 2:1 Active HDMI™ Compatible Switch with Optimized Equalization for Enhanced Signal Integrity Recommended Power Supply Decoupling Circuit Figure 1 is the recommended power supply decoupling circuit configuration. It is recommended to put 0.1μF decoupling capacitors on each VDD pins of our part, there are four 0.1μF decoupling capacitors are put in Figure 1 with an assumption of only four VDD pins on our part, if there is more or less VDD pins on our Pericom parts, the number of 0.1μF decoupling capacitors should be adjusted according to the actual number of VDD pins. On top of 0.1μF decoupling capacitors on each VDD pins, it is recommended to put a 10μF decoupling capacitor near our part’s VDD, it is for stabilizing the power supply for our part. Ferrite bead is also recommended for isolating the power supply for our part and other power supplies in other parts of the circuit. But, it is optional and depends on the power supply conditions of other circuits. 10μF Ferrite Bead From main power supply 0.1μF V DD 0.1μF V DD P e r ic o m P a r t 0.1μF V DD 0.1μF V DD Figure 1 Recommended Power Supply Decoupling Circuit Diagram All trademarks are property of their respective owners. 12 09-0017 PS8957B 07/29/09 ADVANCE INFORMATION - COMPANY CONFIDENTIAL PI3HDMI201 2:1 Active HDMI™ Compatible Switch with Optimized Equalization for Enhanced Signal Integrity Requirements on the Decoupling Capacitors There is no special requirement on the material of the capacitors. Ceramic capacitors are generally being used with typically materials of X5R or X7R. Layout and Decoupling CapacitorPlacement Consideration i. Each 0.1μF decoupling capacitor should be placed as close as possible to each VDD pin. ii. VDD and GND planes should be used to provide a low impedance path for power and ground. iii. Via holes should be placed to connect to VDD and GND planes directly. iv. Trace should be as wide as possible v. Trace should be as short as possible. vi. The placement of decoupling capacitor and the way of routing trace should consider the power flowing criteria. vii. 10μF capacitor should also be placed closed to our part and should be placed in the middle location of 0.1μF capacitors. viii. Avoid the large current circuit placed close to our part; especially when it is shared the same VDD and GND planes. Since large current flowing on our VDD or GND planes will generate a potential variation on the VDD or GND of our part. V DD P la ne Bypass noise Power Flow 0 .1 uF G N D P la ne P e r ic o m P a r t Figure 2 Layout and Decoupling Capacitor Placement Diagram All trademarks are property of their respective owners. 13 09-0017 PS8957B 07/29/09 ADVANCE INFORMATION - COMPANY CONFIDENTIAL PI3HDMI201 2:1 Active HDMI™ Compatible Switch with Optimized Equalization for Enhanced Signal Integrity Package Mechanical: 56-pin, Low Profile Quad Flat Package (ZF56) 1 DATE: 05/15/08 DESCRIPTION: 56-contact, Thin Fine Pitch Quad Flat No-lead (TQFN) PACKAGE CODE: ZF56 REVISION: C DOCUMENT CONTROL #: PD-2024 08-0208 Ordering Information Ordering Code Package Code PI3HDMI201ZFE ZF Package Description 56-pin, Pb-free & Green TQFN Notes: • Thermal characteristics can be found on the company web site at www.pericom.com/packaging/ • E = Pb-free and Green • Adding an X Suffix = Tape/Reel • HDMI & DeepColor are trademarks of Silicon Image Pericom Semiconductor Corporation • 1-800-435-2336 • www.pericom.com All trademarks are property of their respective owners. 14 09-0017 PS8957B 07/29/09
