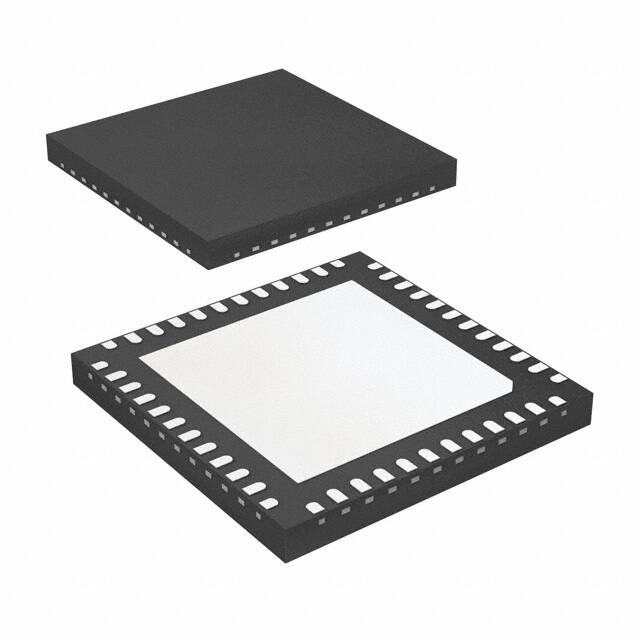

PI6CG188Q
8-Output PCIe Gen 4 Clock Generator for Automotive Applications
Features
Description
ÎÎ1.8V Supply Voltage
The PI6CG188Q is an 8-output very-low-power PCIe Gen1/Gen2/
Gen3/Gen4 clock generator. It uses 25MHz crystal or CMOS
reference as an input to generate the 100MHz low-power
differential HCSL outputs with on-chip terminations. The on-chip
termination can save 32 external resistors and make layout easier.
An additional buffered reference output is provided to serve as a
low-noise reference for other circuitry.
ÎÎCrystal/CMOS Input: 25MHz
ÎÎ8
Differential Low-Power HCSL Outputs with On-Chip
Termination
ÎÎIndividual Output Enable
ÎÎReference CMOS Output
ÎÎProgrammable
Output
Slew Rate and Output Amplitude for Each
The device uses Diodes' proprietary PLL design to achieve verylow jitter that meets PCIe Gen1/Gen2/Gen3/Gen4 requirements.
It also provides various options, such as different slew rate and
amplitude, through strapping pins or SMBUS, so users can
configure the device easily for optimized performance for their
individual boards. The device also supports selectable spreadspectrum options to reduce EMI for Automotive applications.
ÎÎDifferential Outputs Blocked until PLL is Locked
ÎÎSelectable 0%, -0.25%, or -0.5% Spread on Differential Outputs
ÎÎStrapping pins or SMBus for Configuration
ÎÎ3.3V Tolerant SMBus Interface Support
ÎÎVery-Low-Jitter Outputs
àà Differential Cycle-to-Cycle Jitter
