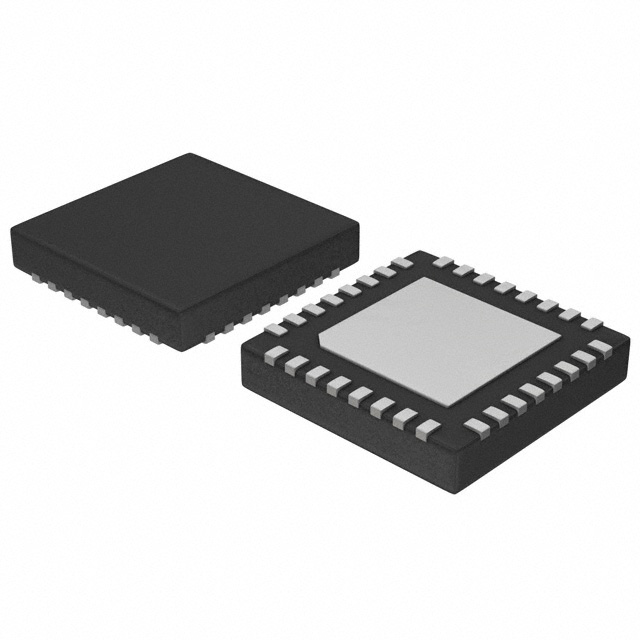

Pb Lead-free Green A product Line of Diodes Incorporated PI6CG33401C 3.3V Very-Low-Power 4-Output PCIe Clock Generator With On-Chip Termination Features Description ÎÎ3.3V Supply Voltage The PI6CG33401C is a 4-output very-low-power PCIe Gen1/Gen2/ Gen3/Gen4/Gen 5 clock generator. It uses 25MHz crystal or CMOS reference as an input to generate the 100MHz low-power differential HCSL outputs with on-chip terminations. The on-chip termination can save 16 external resistors and make layout easier. An additional buffered reference output is provided to serve as a low-noise reference for other circuitry. ÎÎCrystal/CMOS Input: 25MHz ÎÎFour Differential Low Power HCSL Outputs with On-Chip Termination ÎÎDefault ZOUT = 100Ω ÎÎIndividual Output Enable ÎÎReference CMOS Output ÎÎProgrammable Output Slew Rate and Output Amplitude for Each It uses Diodes' proprietary PLL design to achieve very-low jitter that meets PCIe Gen1/Gen2/Gen3/Gen4/Gen5 requirements. It also provides various options such as different slew rate and amplitude through SMBUS, so users can configure the device easily to get the optimized performance for their individual boards. The device also supports selectable spread-spectrum options to reduce EMI for various applications. ÎÎDifferential Outputs Blocked until PLL is Locked ÎÎSelectable 0%, -0.25%, or -0.5% Spread on Differential Outputs ÎÎStrapping pins or SMBus for Configuration ÎÎDifferential Output-To-Output Skew
