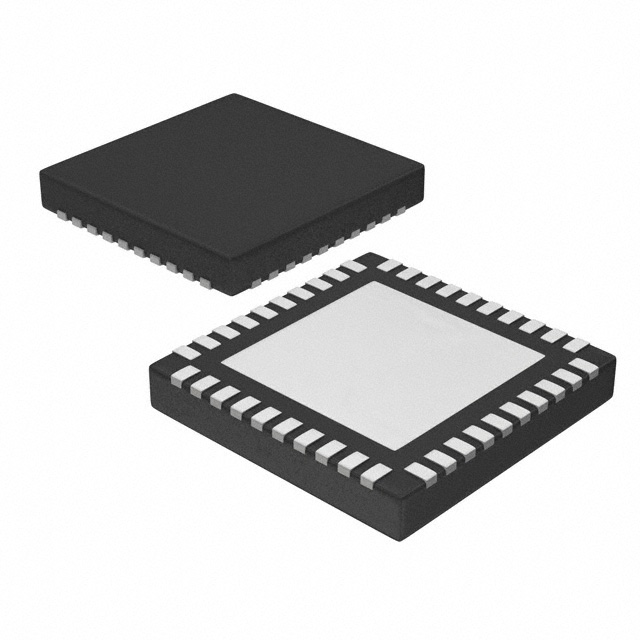

PI6CG33601CZLAIEX

Pb Lead-free Green A product Line of Diodes Incorporated PI6CG33601C 3.3V Very Low Power 6-Output PCIe Clock Generator With On-chip Termination Features Description ÎÎ3.3V Supply Voltage The PI6CG33601C is a 6-output very low power PCIe Gen1/Gen2/ Gen3/Gen4/Gen5 clock generator. It uses 25MHz crystal or CMOS reference as an input to generate the 100MHz low power differential HCSL outputs with on-chip terminations. The on-chip termination can save 24 external resistors and make layout easier. An additional buffered reference output is provided to serve as a low noise reference for other circuitry. ÎÎCrystal/CMOS input: 25 MHz ÎÎ6 Differential low power HCSL outputs with on-chip termination ÎÎDefault ZOUT = 100Ω ÎÎIndividual output enable ÎÎReference CMOS output ÎÎProgrammable slew rate and output amplitude for each output ÎÎDifferential outputs blocked until PLL is locked ÎÎSelectable 0%, -0.25% or -0.5% spread on differential outputs ÎÎStrapping pins or SMBus for configuration ÎÎDifferential Output-To-Output Skew
