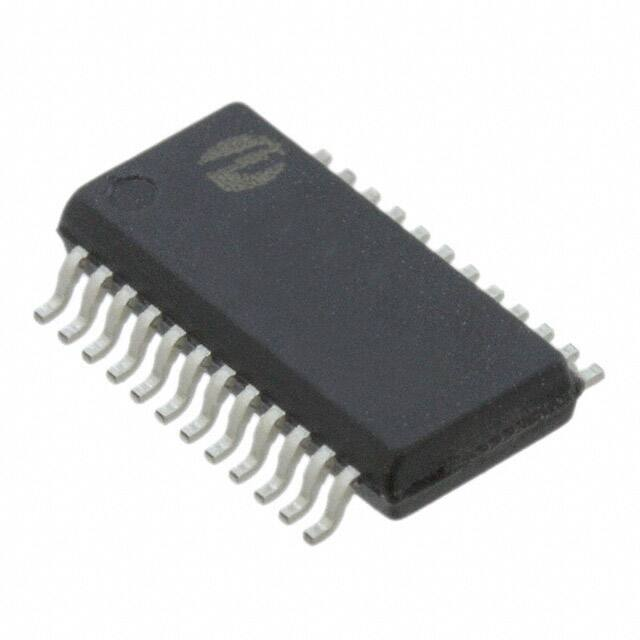

PI74FCT828ATQ

PI74FCT827/828T (25Ω Ω Series) P174FCT2827/2828T 10-BIT BUFFERS 12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012123456789012 PI74FCT827T, PI74FCT828T (25Ω Ω Series) PI74FCT2827T Ω Series) PI74FCT2828T (25Ω 12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012123456789012 12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012123456789012 Fast CMOS 10-Bit Buffers Product Features Product Description • PI74FCT827/828/2827/2828T are pin compatible with bipolar FAST™ Series at a higher speed and lower power consumption • 25Ω series resistor on all outputs (FCT2XXX only) • TTL input and output levels • Low ground bounce outputs • Extremely low static power • Hysteresis on all inputs • Industrial operating temperature range: –40°C to +85°C • Packages available: – 24-pin 300-mil wide plastic DIP (P) – 24-pin 150-mil wide plastic QSOP (Q) – 24-pin 150-mil wide plastic TQSOP (R) – 24-pin 300-mil wide plastic SOIC (S) Pericom Semiconductor’s PI74FCT series of logic circuits are produced in the Company’s advanced 0.8 micron CMOS technology, achieving industry leading speed grades. All PI74FCT2XXX devices have a built-in 25-ohm series resistor on all outputs to reduce noise because of reflections, thus eliminating the need for an external terminating resistor. The PI74FCT827/828T and the PI74FCT2827/2828T are 10-bit wide bus drivers providing high-performance bus interface buffering for wide address/data paths or buses carrying parity. The 10-bit buffers have NAND-ed output enables for maximum control flexibility. They are designed for high-capacitance load drive capability, while providing low-capacitance bus loading at both inputs and outputs. The PI74FCT827/2827T is a non-inverting of the PI74FCT828/2828T. Device models available upon request. Logic Block Diagram Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7 Y8 Y9 D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 NOTE: PI74FCT827 is shown. 1 OE1 OE2 PS2029B 10/27/98 PI74FCT827/828T (25Ω Ω Series) P174FCT2827/2828T 10-BIT BUFFERS 12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012123456789012 Product Pin Configuration Product Pin Description OE 1 24 Vcc D0 2 23 Y0 D1 3 22 Y1 D2 4 21 Y2 20 Y3 19 Y4 18 Y5 24-PIN P24 Q24 R24 S24 D3 5 D4 6 D5 7 D6 8 17 Y6 D7 9 16 Y7 D8 10 15 Y8 D9 11 14 Y9 GND 12 13 OE2 PI74FCT827/2827T Truth Table (Non-Inverting)(1) Function Inputs OE1 OE2 Description Output Enable Input (Active LOW) 10-bit Data Inputs 10-bit Data Outputs Ground Power PI74FCT828/2828T Truth Table (Inverting)(1) DN Outputs YN Transparent L L L L Three-State L H X L X H H X X H Z Z 1. Pin Name OEN D0-D9 Y0-Y9 GND VCC Inputs Function Outputs OE1 OE2 DN YN Transparent L L L H Three-State L H X L X H H X X L Z Z H = High Voltage Level L = Low Voltage Level X = Don’t Care Z = High Impedance 2 PS2029B 10/27/98 PI74FCT827/828T (25Ω Ω Series) P174FCT2827/2828T 10-BIT BUFFERS 12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012123456789012 Maximum Ratings (Above which the useful life may be impaired. For user guidelines, not tested.) Storage Temperature ................................................................. –65°C to +150°C Ambient Temperature with Power Applied .................................. -40°C to +85°C Supply Voltage to Ground Potential (Inputs & Vcc Only) .......... –0.5V to +7.0V Supply Voltage to Ground Potential (Outputs & D/O Only) ....... –0.5V to +7.0V DC Input Voltage ......................................................................... –0.5V to +7.0V DC Output Current .................................................................................... 120mA Power Dissipation ......................................................................................... 0.5W Note: Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability. DC Electrical Characteristics (Over the Operating Range, TA = –40°C to +85°C, VCC = 5.0V ± 5%) Parameters Description Test Conditions(1) Min. Typ(2) Max. Units VOH Output HIGH Voltage VCC = Min., VIN = VIH or VIL IOH = –15.0mA 2.4 3.0 V VOL Output LOW Current VCC = Min., VIN = VIH or VIL IOL = 48mA 0.3 0.50 V VOL Output LOW Current VCC = Min., VIN = VIH or VIL IOL = 12mA (25Ω Series) 0.3 0.50 V VIH Input HIGH Voltage Guaranteed Logic HIGH Level VIL Input LOW Voltage Guaranteed Logic LOW Level IIH Input HIGH Current VCC = Max. IIL Input LOW Current IOZH High Impedance IOZL Output Current VIK Clamp Diode Voltage VCC = Min., IIN = –18mA IOFF Power Down Disable VCC = GND, VOUT = 4.5V IOS Short Circuit Current VCC = Max.(3), VOUT = GND VH Input Hysteresis 2.0 V 0.8 V VIN = VCC 1 µA VCC = Max. VIN = GND –1 µA VCC = MAX. VOUT = 2.7V 1 µA VOUT = 0.5V –1 µA –0.7 –1.2 V — — 100 µA –60 –120 mA 200 mV Capacitance (TA = 25°C, f = 1 MHz) Parameters(4) Description Test Conditions Typ Max. Units CIN Input Capacitance VIN = 0V 6 10 pF COUT Output Capacitance VOUT = 0V 8 12 pF Notes: 1. For Max. or Min. conditions, use appropriate value specified under Electrical Characteristics for the applicable device type. 2. Typical values are at Vcc = 5.0V, +25°C ambient and maximum loading. 3. Not more than one output should be shorted at one time. Duration of the test should not exceed one second. 4. This parameter is determined by device characterization but is not production tested. 3 PS2029B 10/27/98 PI74FCT827/828T (25Ω Ω Series) P174FCT2827/2828T 10-BIT BUFFERS 12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012123456789012 Power Supply Characteristics Test Conditions(1) Parameters Description Min. Typ(2) Max. Units ICC Quiescent Power Supply Current VCC = Max. VIN = GND or VCC 0.1 500 µA ∆ICC Supply Current per Input @ TTL HIGH VCC = Max. VIN = 3.4V(3) 0.5 2.0 mA ICCD Supply Current per Input per MHz(4) VCC = Max., Outputs Open OE1 = OE2 = GND One Input Toggling 50% Duty Cycle VIN = VCC VIN = GND 0.15 0.25 mA/ MHz IC Total Power Supply Current(6) VCC = Max., Outputs Open fCP = 10 MHZ 50% Duty Cycle OE1 = OE2 = GND fI = 5 MHZ One Bit Toggling VCC = Max., Outputs Open fCP = 10 MHZ 50% Duty Cycle OE1 = OE2 = GND Eight Bits Toggling fI = 2.5 MHZ 50% Duty Cycle VIN = VCC VIN = GND 1.5 3.5(5) mA VIN = 3.4V VIN = GND 1.8 4.5(5) VIN = VCC VIN = GND 3.0 6.0(5) VIN = 3.4V VIN = GND 5.0 14.0(5) Notes: 1. For Max. or Min. conditions, use appropriate value specified under Electrical Characteristics for the applicable device. 2. Typical values are at Vcc = 5.0V, +25°C ambient. 3. Per TTL driven input (VIN = 3.4V); all other inputs at Vcc or GND. 4. This parameter is not directly testable, but is derived for use in Total Power Supply Calculations. 5. Values for these conditions are examples of the Icc formula. These limits are guaranteed but not tested. 6. IC =IQUIESCENT + IINPUTS + IDYNAMIC IC = ICC + ∆ICC DHNT + ICCD (fCP/2 + fINI) ICC = Quiescent Current ∆ICC = Power Supply Current for a TTL High Input (VIN = 3.4V) DH = Duty Cycle for TTL Inputs High NT = Number of TTL Inputs at DH ICCD = Dynamic Current Caused by an Input Transition Pair (HLH or LHL) fCP = Clock Frequency for Register Devices (Zero for Non-Register Devices) fI = Input Frequency NI = Number of Inputs at fI All currents are in milliamps and all frequencies are in megahertz. 4 PS2029B 10/27/98 PI74FCT827/828T (25Ω Ω Series) P174FCT2827/2828T 10-BIT BUFFERS 12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012123456789012 PI74FCT827/2827T (non-inverting) Switching Characteristics over Operating Range 827AT/2827AT 827BT/2827BT Com. Parameters tPLH tPHL tPZH tPZL tPHZ tPLZ 827CT/2827CT Com. 827DT Com. Com. Description Conditions(1) Min. Max. Min. Max. Min. Max. Propagation Delay DN to YN CL = 50pF RL = 500Ω CL = 300pF(3) RL = 500Ω CL = 50pF RL = 500Ω CL = 300pF(3) RL = 500Ω CL = 5pF(3) RL = 500Ω CL = 50pF RL = 500Ω 1.5 6.5 1.5 5.0 1.5 4.4 1.5 3.8 1.5 15.0 1.5 13.0 1.5 10.0 1.5 7.5 1.5 9.5 1.5 8.0 1.5 7.0 1.5 5.0 1.5 23.0 1.5 15.0 1.5 14.0 1.5 9.0 1.5 8.5 1.5 6.0 1.5 5.7 1.5 4.3 1.5 10.0 1.5 7.0 1.5 6.0 1.5 4.3 Output Enable Time OEN to YN Output Disable Time(3) OEN to YN Min. Max. Units ns PI74FCT828/2828T (inverting) Switching Characteristics over Operating Range Parameters tPLH tPHL tPZH tPZL tPHZ tPLZ (1) 828AT/2828AT 828BT/2828BT 828CT Com. Com. Com. Description Conditions Min. Max. Min. Max. Min. Max. Units Propagation Delay DN to YN CL = 50 pF RL = 500Ω CL = 300 pF(3) RL = 500Ω CL = 50 pF RL = 500Ω CL = 300 pF(3) RL = 500Ω CL = 5 pF(3) RL = 500Ω CL = 50 pF RL = 500Ω 1.5 6.5 1.5 5.5 1.5 4.4 ns 1.5 15.0 1.5 13.0 1.5 10.0 ns 1.5 9.5 1.5 8.0 1.5 7.0 ns 1.5 23.0 1.5 15.0 1.5 14.0 ns 1.5 8.5 1.5 6.0 1.5 5.7 ns 1.5 10.0 1.5 7.0 1.5 6.0 ns Output Enable Time OEN to YN Output Disable Time(3) OEN to YN Notes: 1. See test circuit and waveforms. 2. Minimum limits are guaranteed but not tested on Propagation Delays. 3. This parameter is guaranteed but not production tested. Pericom Semiconductor Corporation 2380 Bering Drive • San Jose, CA 95131 • 1-800-435-2336 • Fax (408) 435-1100 • http://www.pericom.com 5 PS2029B 10/27/98
