SBR1045D1-13

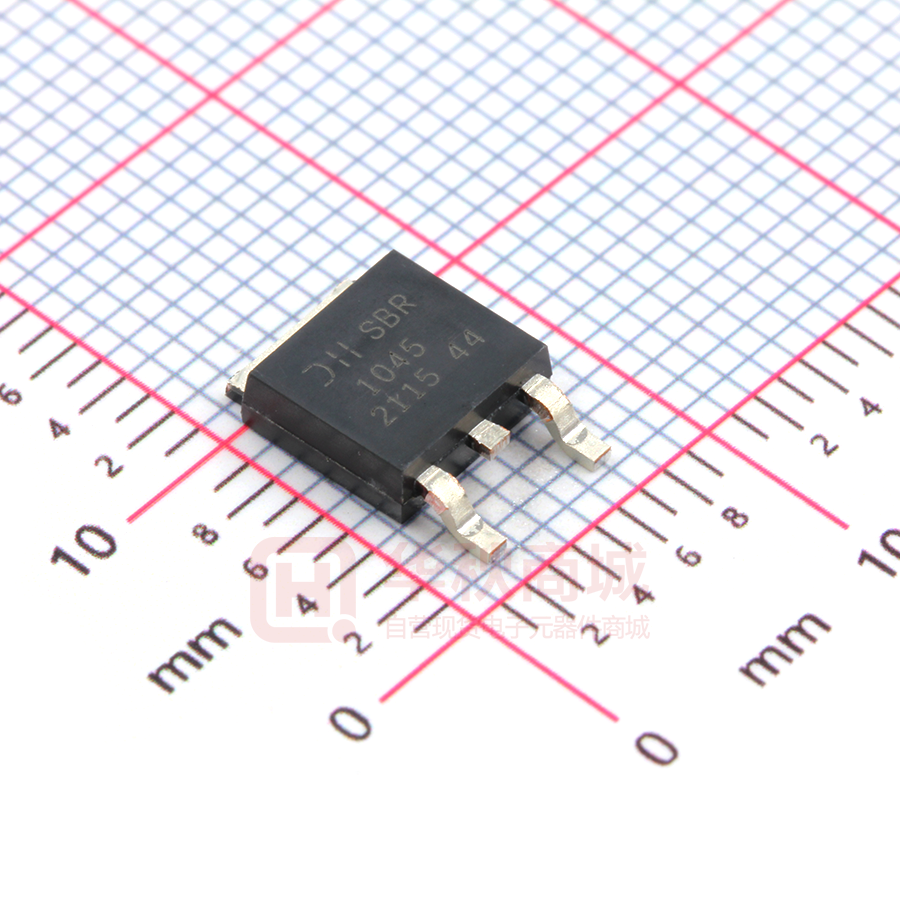

SBR1045D1 10A SBR® SUPER BARRIER RECTIFIER Features Mechanical Data • • • • • • • • • Low Forward Voltage Drop Excellent High Temperature Stability Patented Super Barrier Rectifier Technology Soft, Fast Switching Capability Lead Free Finish, RoHS Compliant (Note 1) “Green” Molding Compound (No Br, Sb) Qualified to AEC-Q101 Standards for High Reliability Case: TO252 (DPAK) Case Material: Molded Plastic, UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Matte Tin Finish annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208 Weight: 0.33 grams (approximate) • • • 3 Top View Polarity Ordering Information (Note 2) Part Number SBR1045D1-13 SBR1045D1Q-13 Notes: Qualification Commercial Automotive Case TO252 (DPAK) TO252 (DPAK) Packaging 2500/Tape & Reel, 13-inch 2500/Tape & Reel, 13-inch 1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes. 2. For packaging details, go to our website at http://www.diodes.com. Marking Information SBR 1045 YYWW AB SBR1045 = Product Type Marking Code AB = Foundry and Assembly Code YYWW = Date Code Marking YY = Last two digits of year (ex: 08 = 2008) WW = Week (01 - 53) SBR is a registered trademark of Diodes Incorporated. SBR1045D1 Document number: DS31374 Rev. 7 - 2 1 of 5 www.diodes.com June 2011 © Diodes Incorporated SBR1045D1 Maximum Ratings @TA = 25°C unless otherwise specified Single phase, half wave, 60Hz, resistive or inductive load. For capacitance load, derate current by 20%. Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Output Current @ TC = 140ºC Non-Repetitive Peak Forward Surge Current 8.3ms Single Half Sine-Wave Superimposed on Rated Load Repetitive Peak Avalanche Power (1μs, 25ºC) Symbol VRRM VRWM VRM VR(RMS) IO Value Unit 45 V 32 10 V A IFSM 90 A PARM 5000 W Symbol Value Unit RθJA RθJC TJ, TSTG 29 3 ºC/W -65 to +150 ºC Thermal Characteristics Characteristic Maximum Thermal Resistance Thermal Resistance Junction to Ambient (Note 3) Thermal Resistance Junction to Case (Note 3) Operating and Storage Temperature Range Electrical Characteristics @TA = 25°C unless otherwise specified Characteristic Reverse Breakdown Voltage (Note 4) Symbol V(BR)R Min 45 Typ - Max - Unit V Forward Voltage Drop (per leg) VF - 0.42 0.37 0.50 0.48 0.41 0.58 0.56 V Leakage Current (Note 4) IR - 50 12 500 40 μA mA Total Capacitance CT - 400 - pF Notes: Test Condition IR = 0.45mA IF = 5A, TJ = 25ºC IF = 5A, TJ = 125ºC IF = 10A, TJ = 25ºC IF = 10A, TJ = 125ºC VR = 45V, TJ = 25ºC VR = 45V, TJ = 125ºC VR = 5V, f = 1MHz TJ = 25ºC 3. Device mounted on polymide substrate, 240mm2 Copper pad, double-sided PC Board. 4. Short duration pulse test used to minimize self-heating effect. 5. Device mounted on polymide substrate, 2” * 2” Copper pad, double-sided PC Board with minimum recommended pad layout. SBR is a registered trademark of Diodes Incorporated. SBR1045D1 Document number: DS31374 Rev. 7 - 2 2 of 5 www.diodes.com June 2011 © Diodes Incorporated SBR1045D1 IF, INSTANTANEOUS FORWARD CURRENT (A) 5.0 PD, POWER DISSIPATION (W) 4.5 4.0 3.5 3.0 2.5 2.0 1.5 1.0 0.5 0 2 4 6 8 10 IF(AV), AVERAGE FORWARD CURRENT (A) Fig. 1 Forward Power Dissipation 100,000 10 TA = 150°C 1 T A = 125°C 0.1 0.01 TA = 85°C TA = 25°C 0.001 TA = -55°C 0.0001 0 200 400 600 800 VF, INSTANTANEOUS FORWARD VOLTAGE (mV) Fig. 2 Typical Forward Characteristics 10,000 TA = 150°C 10,000 TA = 125°C T A = 85°C 1,000 CT, TOTAL CAPACITANCE (pF) IR, INSTANTANEOUS REVERSE CURRENT (uA) 0 100 1,000 100 TA = 25°C 10 1 TA = -55°C 0.1 100 0.1 0 5 10 15 20 25 30 35 40 45 VR, INSTANTANEOUS REVERSE VOLTAGE (V) Fig. 3 Typical Reverse Characteristics 7 DC 6 150 TJ = 150°C RθJA = 44°C/W (Note 5) IAV Duty = IPK TA, DERATED AMBIENT TEMPERATURE (°C) IF(AV), AVERAGE FORWARD CURRENT (A) 8 125 IAV IPK = 2 5 100 IAV IPK = 3.33 4 IAV IPK = 10 3 2 IAV IPK = 20 1 0 25 50 75 100 125 TA, AMBIENT TEMPERATURE (°C) Fig. 5 Forward Current Derating Curve 150 SBR is a registered trademark of Diodes Incorporated. SBR1045D1 Document number: DS31374 Rev. 7 - 2 1 10 100 VR, DC REVERSE VOLTAGE (V) Fig. 4 Total Capacitance vs. Reverse Voltage 3 of 5 www.diodes.com 75 50 25 0 0 5 10 15 20 25 30 35 40 VR, DC REVERSE VOLTAGE (V) Fig. 6 Operating Temperature Derating 45 June 2011 © Diodes Incorporated SBR1045D1 PARM, MAXIMUM AVALANCHE POWER (W) 100,000 10,000 1,000 100 10 1 0.01 0.1 1 10 100 TP, PULSE DURATION (µS) Fig. 7 Maximum Avalanche Power Curve 1,000 Package Outline Dimensions E TO252 Dim Min Max Typ A 2.19 2.39 2.29 A1 0.00 0.13 0.08 A2 0.97 1.17 1.07 b 0.64 0.88 0.783 b2 0.76 1.14 0.95 b3 5.21 5.46 5.33 c2 0.45 0.58 0.531 D 6.00 6.20 6.10 D1 5.21 − − e 2.286 − − E 6.45 6.70 6.58 E1 4.32 − − H 9.40 10.41 9.91 L 1.40 1.78 1.59 L3 0.88 1.27 1.08 L4 0.64 1.02 0.83 a 0° 10° − All Dimensions in mm A b3 c2 L3 E1 A2 D H L4 A1 L e 2X b2 3X b a Suggested Pad Layout X2 Dimensions Z X1 X2 Y1 Y2 C E1 Y2 C Z Y1 X1 E1 SBR is a registered trademark of Diodes Incorporated. SBR1045D1 Document number: DS31374 Rev. 7 - 2 Value (in mm) 11.6 1.5 7.0 2.5 7.0 6.9 2.3 4 of 5 www.diodes.com June 2011 © Diodes Incorporated SBR1045D1 IMPORTANT NOTICE DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION). Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated website, harmless against all damages. Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel. Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized application. Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings noted herein may also be covered by one or more United States, international or foreign trademarks. LIFE SUPPORT Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express written approval of the Chief Executive Officer of Diodes Incorporated. As used herein: A. Life support devices or systems are devices or systems which: 1. are intended to implant into the body, or 2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the labeling can be reasonably expected to result in significant injury to the user. B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or to affect its safety or effectiveness. Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems. Copyright © 2011, Diodes Incorporated www.diodes.com SBR is a registered trademark of Diodes Incorporated. SBR1045D1 Document number: DS31374 Rev. 7 - 2 5 of 5 www.diodes.com June 2011 © Diodes Incorporated
