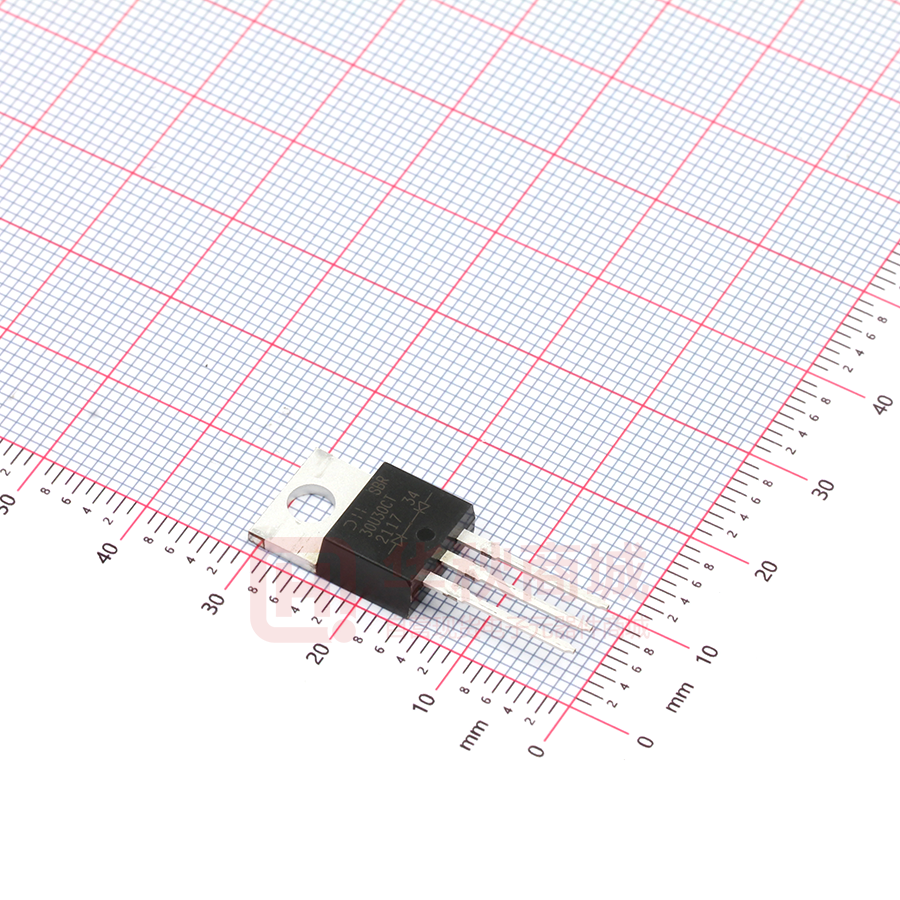

SBR30U30CT

SBR30U30CT 30A SBR® Super Barrier Rectifier NEW P ROD RO D U UC CT Features • • • • • • • • Mechanical Data • Ultra Low Forward Voltage Drop Excellent High Temperature Stability Superior Reverse Avalanche Capability Patented Super Barrier Rectifier Technology Soft, Fast Switching Capability 150°C Operating Junction Temperature Plastic TO-220AB package Lead Free Finish, RoHS Compliant (Note 3) • • • • Case Material: Molded Plastic, UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020C Terminals: Matte Tin Finish annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208 Marking Information: See Page 3 Ordering Information: See Page 3 Maximum Ratings @ TA = 25ºC unless otherwise specified Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Output Current @ TC = 140ºC Non-Repetitive Peak Forward Surge Current 8.3ms Single Half Sine-Wave Superimposed on Rated Load Non-Repetitive Avalanche Energy (TJ = 25ºC, IAS = 20A, L = 8.5 mH) Repetitive Peak Avalanche Power (1µs, 25ºC) Maximum Thermal Resistance Thermal Resistance Junction to Ambient (Note 1) Thermal Resistance Junction to Case Operating and Storage Temperature Range Symbol Value Unit VRRM VRWM VRM 30 V VR(RMS) 21 V IO 30 A IFSM 280 A EAS 800 mJ PARM 9800 W RθJA 17 2 ºC/W RθJC Tj, TSTG -65 to +150 ºC Electrical Characteristics @ TA = 25ºC unless otherwise specified Characteristic Reverse Breakdown Voltage (Note 2) Symbol Min Typ Max Unit V(BR)R 30 - - V - 0.41 0.50 0.34 — 0.45 0.54 0.37 0.5 V 0.33 40 1.5 100 mA Forward Voltage Drop (per leg) Leakage Current (Note 2) Notes: VF IR - Test Condition IR = 1.5mA IF = 15A, Tj = 25ºC IF = 30A, Tj = 25ºC IF = 15A, Tj = 125ºC IF = 30A, Tj = 125ºC VR = 30V, Tj = 25ºC VR = 30V, Tj = 125ºC 1. Test Device on Heatsink (Black Aluminum, 45mm * 20mm * 12mm) 2. Short duration pulse test used to minimize self-heating effect. 3. RoHS revision 13.2.2003. High temperature solder exemption applied, see EU Directive Annex Note 7. __________ SBR is a registered trademark of Diodes Incorporated. SBR30U30 Rev. 4 - 2 1 of 3 www.diodes.com January 2008 © Diodes Incorporated NEW PRODUCT SBR30U30CT 100,000 PARM, MAXIMUM AVALANCHE POWER (W) PARM, AVALANCHE PEAK PULSE POWER DERATING IN PERCENTAGE (%) 120 100 10,000 80 60 40 20 0 0 1,000 100 10 1 0.01 0.1 1 10 100 1,000 TP, PULSE DURATION (uS) Fig. 4 Maximum Avalanche Power Curve, Per Element 25 50 75 100 125 150 175 TJ, JUNCTION TEMPERATURE (°C) Fig. 3 Pulse Derating Curve, Per Element 30 9 RθJA = RθJC Total Device PF(AV), AVERAGE FORWARD POWER DISSIPATION (W) IF, DC FORWARD CURRENT (A) 8 25 20 15 RθJA = RθJC Per Element 10 7 6 5 4 3 2 5 0 25 RθJA = 17°C/W Per Element Note 1 50 75 100 125 1 0 150 0 175 TA, AMBIENT TEMPERATURE (°C) Fig. 5 DC Forward Current Derating SBR30U30 Rev. 4 - 2 2 of 3 www.diodes.com 5 10 15 20 IF(AV), AVERAGE FORWARD CURRENT (A) Fig. 6 Forward Power Dissipation January 2008 © Diodes Incorporated SBR30U30CT Package Outline Drawing A E TO-220AB F DIM. Q A b b1 c D D1 E e e1 F J1 L L1 ØP Q NEW PRODUCT + ØP D D1 PIN 2 1 3 L1 b1 L c b e e J1 e1 PIN 1 PIN 3 PIN 2 CASE MIN. MAX. 4.47 4.67 0.71 0.91 1.17 1.37 0.31 0.53 14.65 15.35 8.50 8.90 10.01 10.31 2.54 typ 4.98 5.18 1.17 1.37 2.52 2.82 13.40 13.80 3.56 3.96 3.735 3.935 2.59 2.89 All Dimensions in Millimeters Marking, Polarity, Weight & Ordering Information Case Style Polarity Marking Weight SBR30U30CT Case t SBR 2.1g 30U30CT YYWW AB TO-220AB Common Anode Cathode Anode Ordering Information Date Code Other Marking Information SBR30U30CT 50 pieces/tube YY = Last two digits of year, ex = 07 = 2007 WW = Week (01-52) A = Foundry Code B = Assembly Code IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. SBR30U30 Rev. 4 - 2 3 of 3 www.diodes.com January 2008 © Diodes Incorporated
