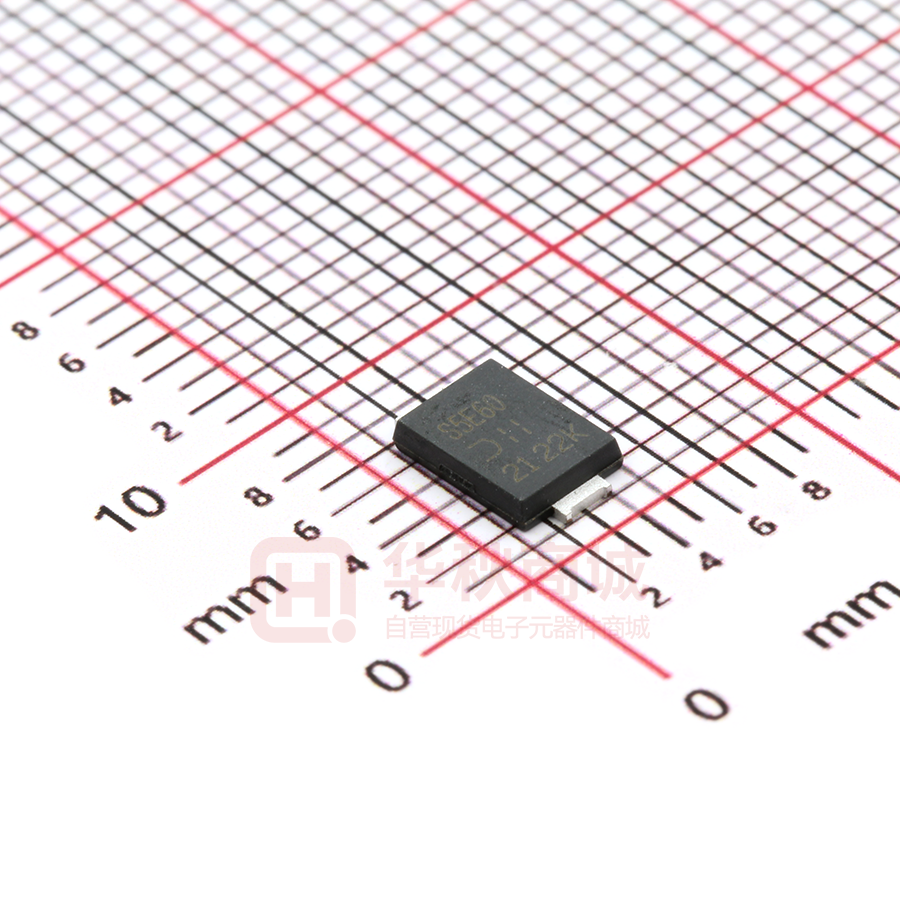

SBR5E60P5-13

SBR3U60P5 Green 3A SBR SUPER BARRIER RECTIFIER PowerDI5 NEWPRODUCT PRODUCT NEW Product Summary (@ TA = +25°C) Features and Benefits VRRM (V) IO (A) VF Max (V) @ +25°C IR Max (mA) @ +25°C 60 3 0.60 0.06 • • • • • • • Description & Applications Packaged in the compact thermally efficient PowerDI5 package, the SBR3U60P5 provides low VF and low reverse leakage at high temperatures. It is ideal for use in the following applications: • • • • Very Low Forward Voltage Drop Excellent High Temperature Stability ® Patented SBR technology provides a superior avalanche capability than Schottky diodes ensuring more rugged and reliable end applications. Lead-Free Finish; RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability An Automotive-Compliant Part is Available Under Separate Datasheet (SBR3U60P5Q) Mechanical Data Bridge Diodes Freewheeling Diodes Blocking Diodes Reverse Protection Diodes • • • • • Case: PowerDI5 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminal Connections: See Diagram Below Weight: 0.093 grams (Approximate) PowerDI5 LEFT PIN RIGHT PIN Top View Bottom View BOTTOMSIDE HEAT SINK Note: Pins Left & Right must be electrically connected at the printed circuit board. Ordering Information (Note 4) Part Number SBR3U60P5-13 SBR3U60P5-13D (Note 5) SBR3U60P5-7 (Note 5) SBR3U60P5-7D (Note 5) Notes: Compliance Commercial Commercial Commercial Commercial Case PowerDI5 PowerDI5 PowerDI5 PowerDI5 Packaging 5,000/Tape & Reel 5,000/Tape & Reel 1,500/Tape & Reel 1,500/Tape & Reel 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
