NOT RECOMMENDED FOR NEW DESIGN
CONTACT US
SBRT2U45LP
2A TrenchSBR
TRENCH SUPER BARRIER RECTIFIER
Product Summary
VRRM (V)
IO (A)
45
2
Features and Benefits
VF(MAX) (V)
@ +25°C
0.55
IR(MAX) (mA)
@ +25°C
0.1
Description and Applications
The SBRT2U45LP provides very low VF and excellent reverse
leakage stability at high temperatures. It is ideal for use as bypass
diode and rectifier, freewheel diode or blocking diode in applications
such as:
Solar Panels
Blocking Diode
Bypass Diode
Boost Diode
Recirculating Diode
Patented TrenchSBR® Technology
Provides Superior
Avalanche Capability Versus Schottky Diodes, Ensuring More
Rugged and Reliable End Applications
Reduced Ultra-low Forward Voltage Drop (VF); Better Efficiency
and Cooler Operation
Reduced High Temperature Reverse Leakage; Increased
Reliability Against Thermal Runaway Failure in High
Temperature Operation
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
For automotive applications requiring specific change
control (i.e.: parts qualified to AEC-Q100/101/200, PPAP
capable, and manufactured in IATF 16949 certified
facilities), please refer to the related automotive grade (Qsuffix) part. A listing can be found at
https://www.diodes.com/products/automotive/automotiveproducts/.
This part is qualified to JEDEC standards (as references in
AEC-Q) for High Reliability.
https://www.diodes.com/quality/product-definitions/
Mechanical Data
Case: X1-DFN1411-3
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Polarity: See Below
Weight: 2.35 mg (Approximate)

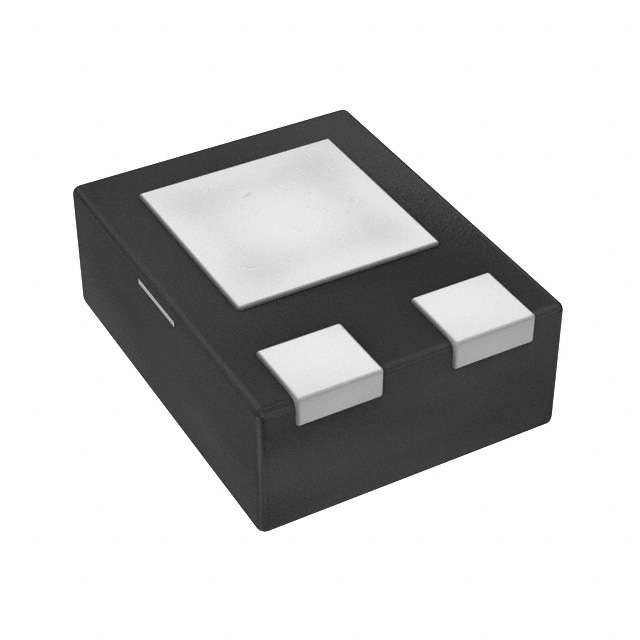

X1-DFN1411-3
2
1
3
Top View
Bottom View
Top View
Internal Schematic
Ordering Information (Note 4)
Part Number
SBRT2U45LP-7
Notes:
Case
X1-DFN1411-3
Packaging
3000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
