SD101AWS – SD101CWS
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Features
Mechanical Data
•
•
•
•
•
•
•
•
•
Low Forward Voltage Drop
Guard Ring Construction for Transient Protection
Negligible Reverse Recovery Time
Low Capacitance
Ultra-small Surface Mount Package
Lead Free/RoHS Compliant Version (Note 1)
“Green” Device (Note 2)
•
•
•
•

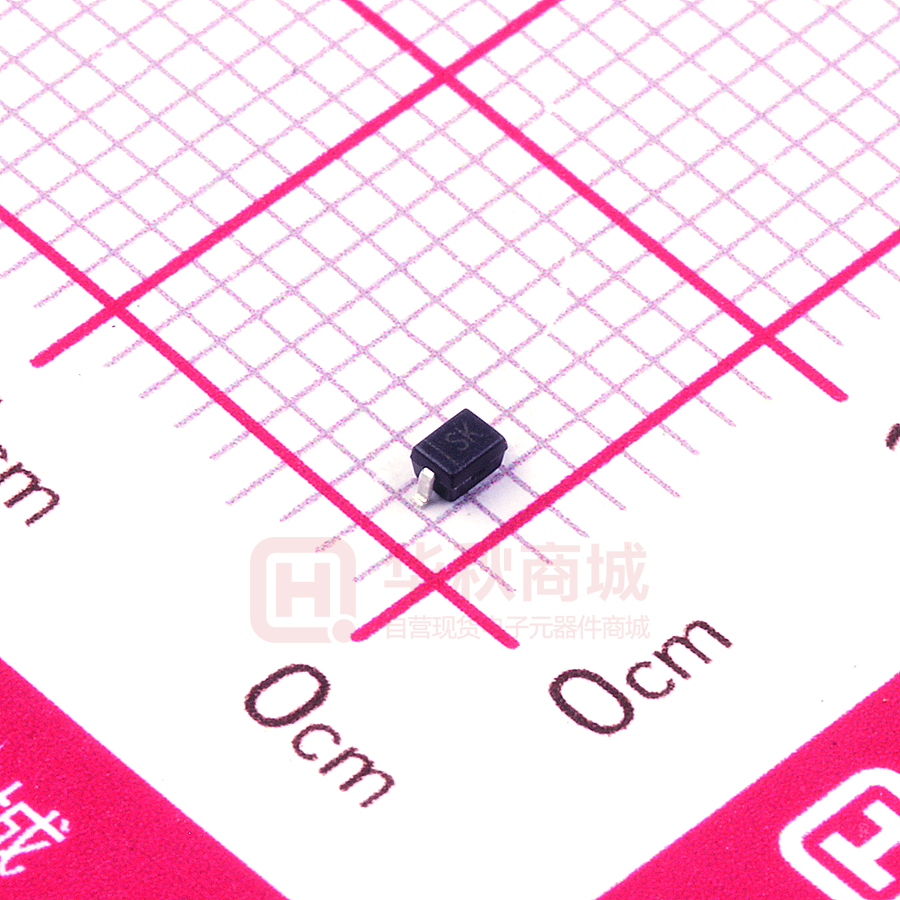

Case: SOD323
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Polarity: Cathode Band
Leads: Matte Tin Finish annealed over Alloy 42 leadframe (Lead
Free Plating). Solderable per MIL-STD-202, Method 208
Weight: 0.004 grams (approximate)
Top View
Ordering Information (Note 3)
Part Number
SD101AWS-7-F
SD101BWS-7-F
SD101CWS-7-F
Notes:
Case
SOD323
SOD323
SOD323
Packaging
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
1. No purposefully added lead.
2. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/
3. For packaging details, go to our website at http://www.diodes.com.
Marking Information
XX
SD101AWS – SD101CWS
Document number: DS30078 Rev. 12 - 2
xx = Product Type Marking Code
S1 or SK = SD101AWS
S2 or SK = SD101BWS
S3 or SC or SK = SD101CWS
1 of 4
www.diodes.com
January 2012
© Diodes Incorporated
SD101AWS – SD101CWS
Maximum Ratings @TA = 25°C unless otherwise specified
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Symbol
VRRM
VRWM
VR
VR(RMS)
IFM
RMS Reverse Voltage
Forward Continuous Current (Note 4)
Non-Repetitive Peak Forward Surge Current
SD101AWS
SD101BWS
SD101CWS
Unit
60
50
40
V
42
28
V
mA
IFSM
35
15
50
2.0
Symbol
PD
RθJA
TJ, TSTG
Value
200
625
-65 to +125
@ t ≤ 1.0s
@ t = 10μs
mA
Thermal Characteristics
Characteristic
Power Dissipation (Note 4)
Thermal Resistance, Junction to Ambient Air (Note 4)
Operating and Storage Temperature Range
Electrical Characteristics
@TA = 25°C unless otherwise specified
Characteristic
Reverse Breakdown Voltage (Note 5)
Forward Voltage Drop
Peak Reverse Current (Note 5)
Total Capacitance
Reverse Recovery Time
Notes:
Unit
mW
°C/W
°C
Symbol
SD101AWS
SD101BWS
SD101CWS
SD101AWS
SD101BWS
SD101CWS
SD101AWS
SD101BWS
SD101CWS
SD101AWS
SD101BWS
SD101CWS
SD101AWS
SD101BWS
SD101CWS
V(BR)R
VFM
IRM
CT
trr
Min
60
50
40
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
Typ
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
Max
⎯
⎯
⎯
0.41
0.40
0.39
1.00
0.95
0.90
200
200
200
2.0
2.1
2.2
Unit
⎯
⎯
1.0
ns
V
V
nA
pF
Test Conditions
IR = 10μA
IR = 10μA
IR = 10μA
IF = 1.0mA
IF = 1.0mA
IF = 1.0mA
IF = 15mA
IF = 15mA
IF = 15mA
VR = 50V
VR = 40V
VR = 30V
VR = 0V, f = 1.0MHz
VR = 0V, f = 1.0MHz
VR = 0V, f = 1.0MHz
IF = IR = 5.0mA,
Irr = 0.1 x IR, RL = 100Ω
4. Part mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com.
5. Short duration pulse test used to minimize self-heating effect.
SD101AWS – SD101CWS
Document number: DS30078 Rev. 12 - 2
2 of 4
www.diodes.com
January 2012
© Diodes Incorporated
100
IR, INSTANTANEOUS REVERSE CURRENT (nA)
IF, INSTANTANEOUS FORWARD CURRENT (mA)
SD101AWS – SD101CWS
T A = 125ºC
TA = 75ºC
TA = 25ºC
10
1.0
TA = 0ºC
0.1
T A = -40ºC
0
10,000
1,000
100
10
1
0.1
0.2 0.4 0.6
0.8 1.0 1.2 1.4 1.6
VF, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 1 Typical Forward Characteristics
0
1.8
10
40
20
30
50
60
VR, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 2 Typical Reverse Characteristics
250
1.6
PD, POWER DISSIPATION (mW)
CT, TOTAL CAPACITANCE (pF)
f = 1.0MHz
1.4
1.2
1.0
0.8
0.6
0.4
200
150
100
50
0.2
0
0
0
5
10
20
15
25
35
30
0
40
40
80
120
160
200
TA, AMBIENT TEMPERATURE (°C)
Fig. 4 Power Derating Curve
VR, DC REVERSE VOLTAGE (V)
Fig. 3 Total Capacitance vs. Reverse Voltage
Package Outline Dimensions
C
H
A
B
M
K
L
SD101AWS – SD101CWS
Document number: DS30078 Rev. 12 - 2
J
3 of 4
www.diodes.com
SOD323
Dim
Min
Max
A
0.25
0.35
B
1.20
1.40
C
2.30
2.70
H
1.60
1.80
J
0.00
0.10
K
1.0
1.1
L
0.20
0.40
M
0.10
0.15
0°
8°
α
All Dimensions in mm
January 2012
© Diodes Incorporated
SD101AWS – SD101CWS
Suggested Pad Layout
C
Dimensions Value (in mm)
Z
3.75
G
1.05
X
0.65
Y
1.35
C
2.40
X
Y
G
Z
