SD103AW - SD103CW
SCHOTTKY BARRIER DIODE
Product Summary (@TA = +25°C)
Features and Benefits
Name
VRRM (V)
IO (A)
VF Max (V)
IR Max (µA)
SD103AW
40
0.2
0.60
5.0A@30V
SD103BW
30
0.2
0.60
5.0A@20V
SD103CW
20
0.2
0.60
5.0A@10V
Low Forward Voltage Drop (VF)
Better Efficiency and Cooler Operation
Guard Ring Construction for Transient Protection
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Description
Mechanical Data
These are 0.2A, 20V/30V/40V Schottky rectifier packaged in SOD123
package.
Applications
Providing low VF and low reserve leakage, this device is ideal for use
in general rectification applications such as:
Case: SOD123
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe.
Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.01 grams (Approximate)
Low Voltage Rectification
High-Efficiency DC-DC Conversion
Switch Mode Power Supply
Inverse Polarity Protection

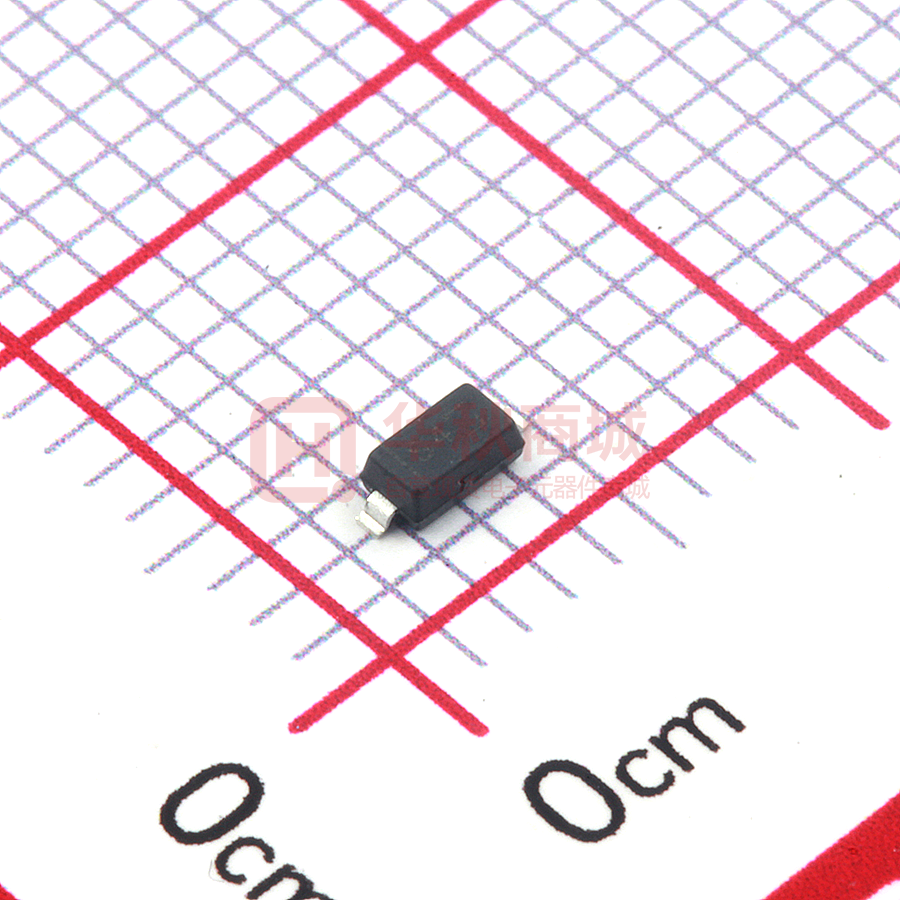

SOD123
Top View
Ordering Information (Note 4)
Part Number
SD103AW-7-F
SD103BW-7-F
SD103CW-7-F
SD103CW-13-F
Notes:
Case
SOD123
SOD123
SOD123
SOD123
Packaging
3000/Tape and Reel
3000/Tape and Reel
3000/Tape and Reel
10,000/Tape and Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
