SD103AWS - SD103CWS
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Product Summary
Features and Benefits
VR(V)
IFM (mA)
VF MAX (V)
@ 20mA, +25°C
IR MAX (µA)
@ VR, +25°C
20
30
40
350
0.37
5.0
Mechanical Data
Description and Applications
This Schottky Barrier Rectifier has been designed to meet the
stringent requirements of Automotive Applications. It is ideally suited
to use as a:
Low Forward Voltage Drop
Guard Ring Construction for Transient Protection
Negligible Reverse Recovery Time
Low Reverse Capacitance
Ultra-Small Surface Mount Package
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Polarity Protection Diode
Re-circulating Diode
Switching Diode

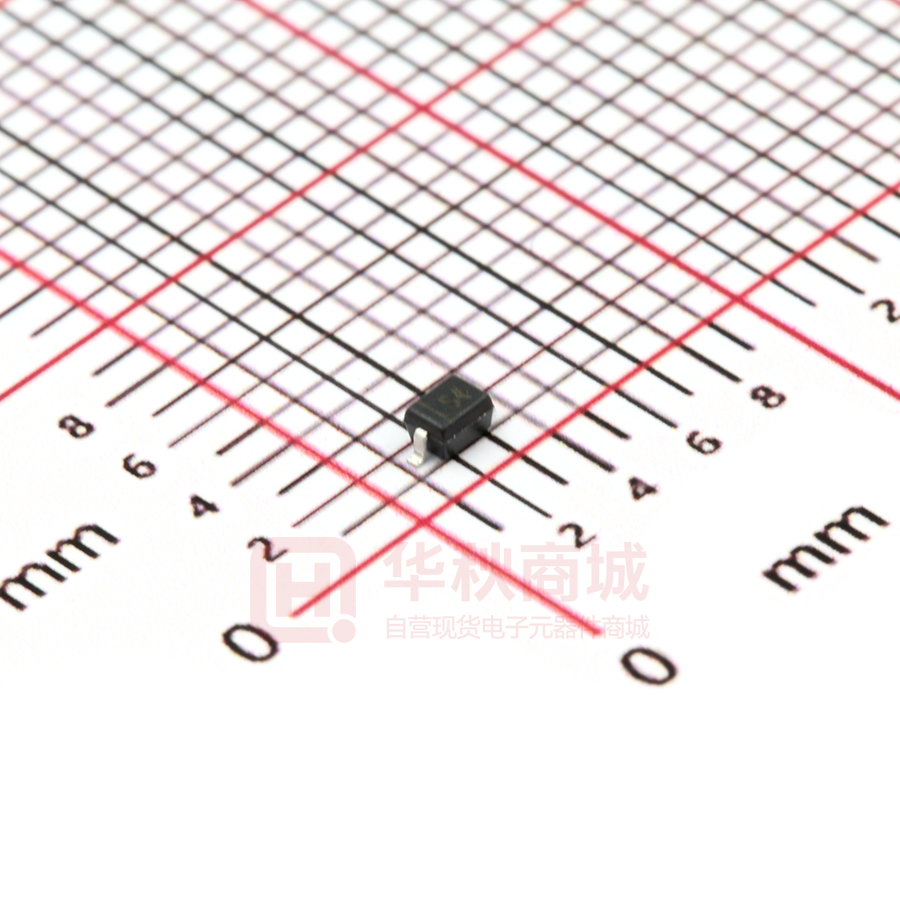

Case: SOD323
Case Material: Molded Plastic.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Leads: Solderable per MIL-STD-202, Method 208
Lead-free Plating (Matte Tin Finish Annealed over
Alloy 42 Leadframe).
Polarity: Cathode Band
Weight: 0.004 grams (Approximate)
Top View
Ordering Information (Note 5)
Part Number
SD103AWS-7-F
SD103AWSQ-7-F
SD103BWS-7-F
SD103CWS-7-F
SD103BWSQ-7-F
Notes:
Compliance
AEC-Q101
Automotive
AEC-Q101
AEC-Q101
Automotive
Case
SOD-323
SOD-323
SOD-323
SOD-323
SOD-323
Packaging
3,000/Tape & Reel
3,000/Tape & Reel
3,000/Tape & Reel
3,000/Tape & Reel
3,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
