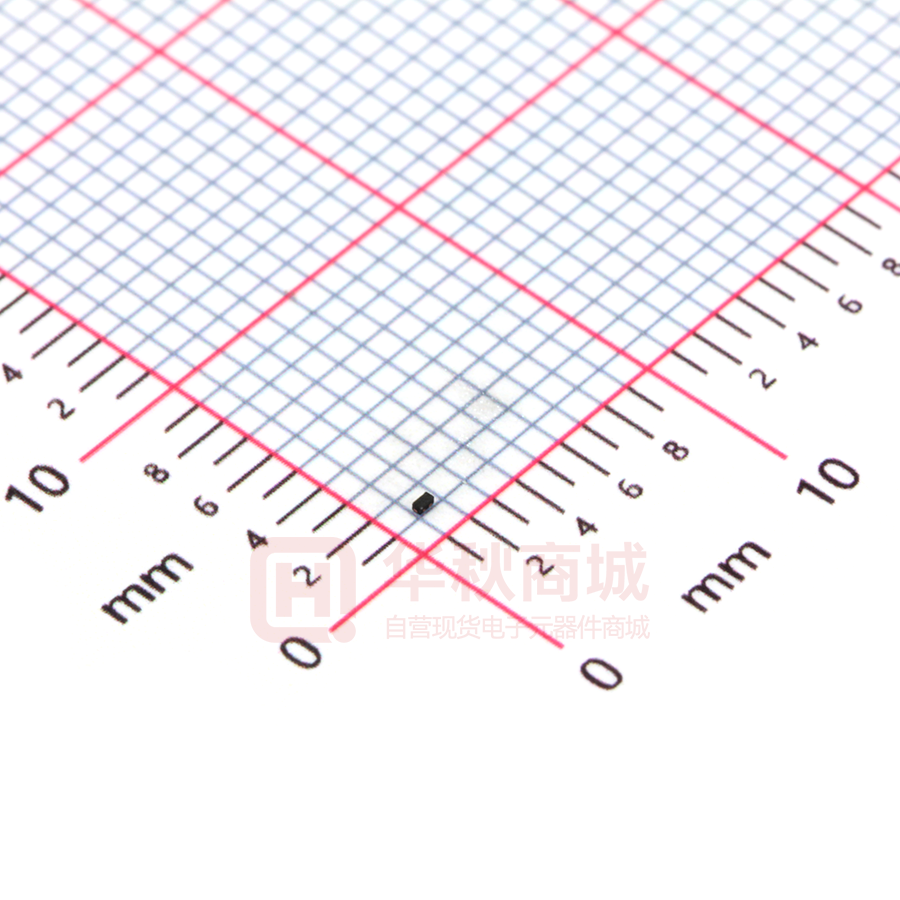

SDM02U30LP3-7B

SDM02U30LP3 ULTRA-SMALL SURFACE MOUNT SCHOTTKY DIODE Product Summary ADVANCE INFORMATION VRRM (V) 30 IO (mA) 100 Features VF Max (V) 0.37 IR Max (μA) 7 Description The DIODES™ SDM02U30LP3 is a Schottky barrier diode optimized for ultra low-forward voltage drop and low reverse leakage current. Encapsulated in the ultra-small X3-DFN0603-2 with footprint of 0.18mm2 and ultra-low package profile, this device is designed for saving PCB space in portable electronic devices.     0.18mm2 Footprint – 70% Smaller Than DFN1006/SOD923 Off Board Profile of 0.35mm – 30% Thinner Than The DFN1006 Low Forward Voltage of 0.37V (Max) – Minimises Power Dissipation Losses Low Leakage – Maximises Battery Power Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) An Automotive-Compliant Part is Available Under Separate Datasheet (SDM02U30LP3Q) Mechanical Data Applications           Reverse voltage and current protections Blocking diodes Clamping protections LCD and key pad backlighting Freewheeling diodes     Package: X3-DFN0603-2 Package Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminal Connections: Cathode Bar Terminals: Finish Matte Tin Finish over Copper Leadframe (Lead Free Plating). Solderable per MIL-STD-202, Method 208 Weight: 0.2mg (Approximate) X3-DFN0603-2 Bottom View Top View Ordering Information (Note 4) Notes: Part Number Package SDM02U30LP3-7B X3-DFN0603-2 Packing Qty. 10,000 Carrier Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
