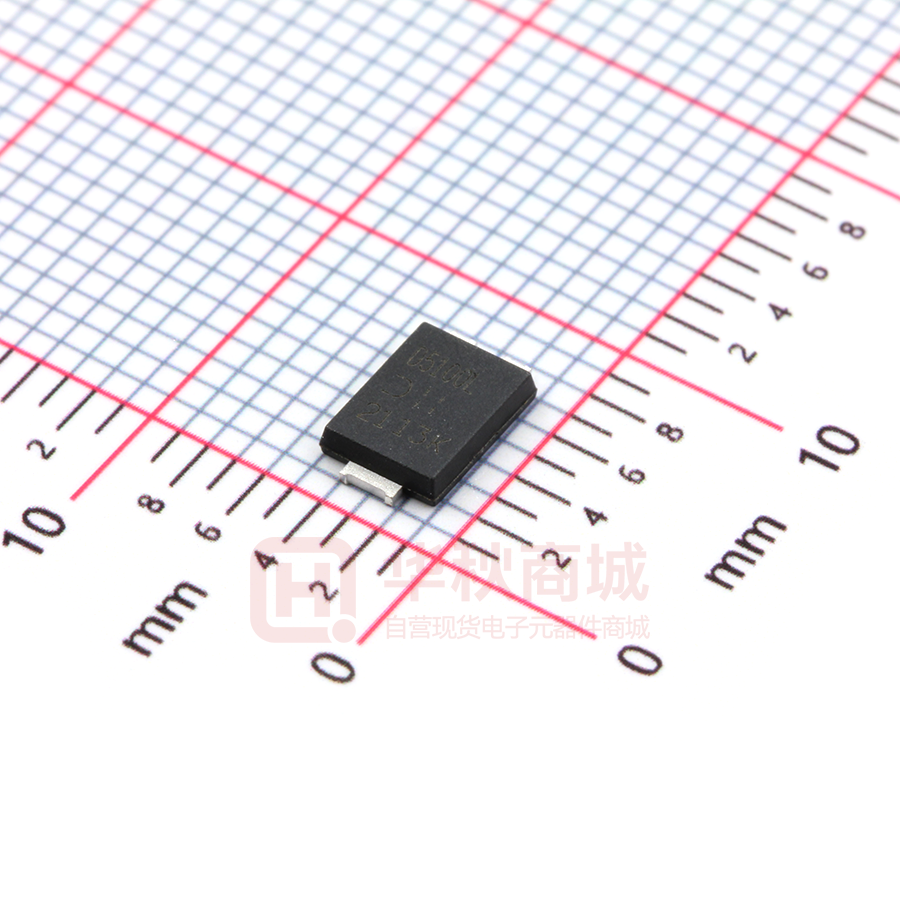

SDT5100LP5-13

SDT5100LP5 Green 5A TRENCH SCHOTTKY BARRIER RECTIFIER PowerDI5 PRODUCT NEW INFORMATION ADVANCED Product Summary (@ TA = +25°C) Features and Benefits VRRM (V) IO (A) VF(MAX) (V) IR(MAX) (µA) 100 5 0.82 4 Description and Applications ® Packaged in the compact thermally efficient PowerDI 5 package, the       Low Forward Voltage Drop Excellent High Temperature Stability Soft, Fast Switching Capability +150°C Operating Junction Temperature Lead-Free Finish; RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) SDT5100LP5 provides very low VF and excellent reverse leakage stability at high temperatures. It is ideal for use as a rectifier, freewheel diode or blocking diode in:   Mechanical Data   DC-DC Converters AC-DC Adaptors    Case: PowerDI5 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminal Connections: See Diagram Below Weight: 0.093 grams (Approximate) PowerDI5 Pin 2 Pin 3 Pin 3 Pin 1 Pin 2 Top View Pin 1 Bottom View Ordering Information (Note 4) Notes: Part Number Reel Size (Inches) Tape Width (mm) Packaging SDT5100LP5-7 SDT5100LP5-7D SDT5100LP5-13 7 7 13 16 12 16 1,500/Tape & Reel 1,500/Tape & Reel 5,000/Tape & Reel SDT5100LP5-13D 13 12 5,000/Tape & Reel 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
