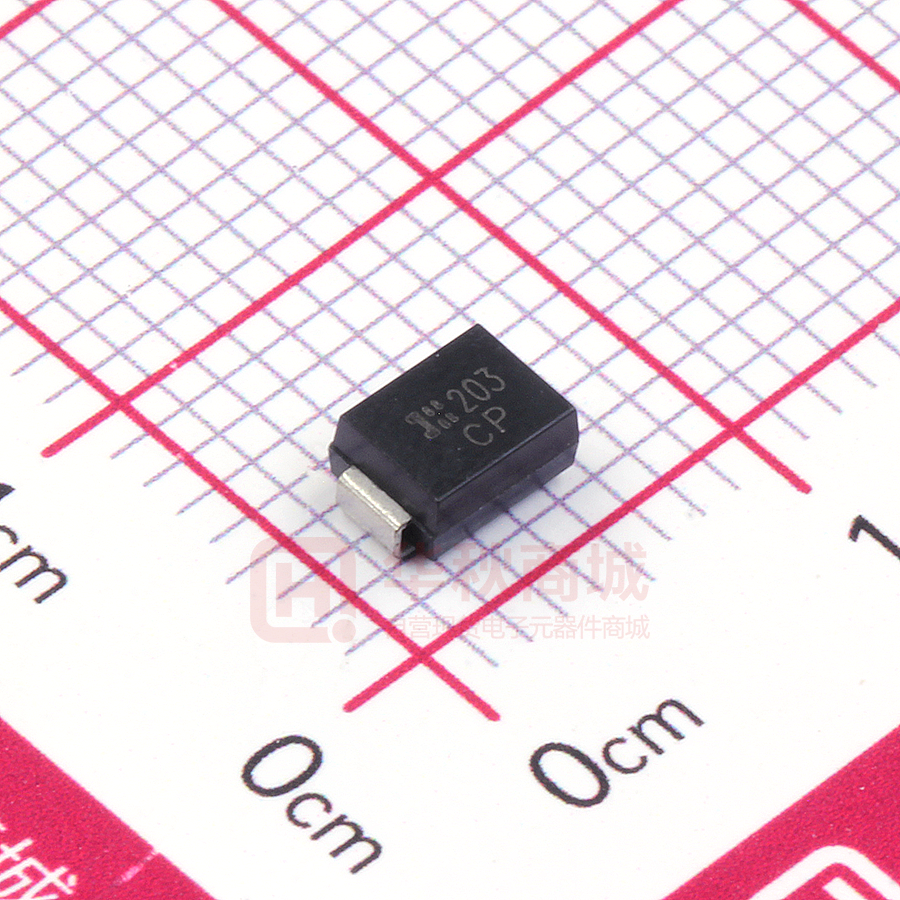

SMBJ36CAQ-13-F

厂商：
BCDSEMI(美台)
封装：
SMB(DO-214AA)
描述：
ESD抑制器/TVS二极管 VRWM=36V VBR(min)=40V VC=58.1V@IPP=10.3A SMB

数据手册：

下载SMBJ36CAQ-13-F.pdf

立即购买

详情介绍
数据手册
价格&库存

SMBJ36CAQ-13-F 数据手册

SMBJ12(C)AQ – SMBJ100(C)AQ Green 600W SURFACE MOUNT AUTOMOTIVE TRANSIENT VOLTAGE SUPPRESSOR NEW PRODUCT Product Summary (@TA = +25°C) Features and Benefits PPK IFSM (A) VRWM (V) PM(AV) • 600W Peak Pulse Power Dissipation 600W 100 12-100 5W • 12V - 100V Standoff Voltages • Glass Passivated Die Construction • Unidirectional and Bidirectional Versions Available • Excellent Clamping Capability • Lead-Free Finish; RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) • Qualified to AEC-Q101 Standards for High Reliability • PPAP Capable (Note 4) Description and Applications Mechanical Data Suitable to protect sensitive automotive circuits against surges defined in ISO7637-2 and against electrostatic discharges according to ISO10605. • • • • Compliance with the following standards: • ISO10605, C = 150pF, R = 330Ω: 30kV (Air Discharge) 30kV (Contact Discharge) • ISO7637-2 (Note 6) Pulse 1: Vs = -150V Pulse 2a: Vs = +112V Pulse 3a: VS= -220V Pulse 3b: VS= +150V • Case: SMB Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Lead Free Plating (Matte Tin Finish). Solderable per MIL-STD-202, Method 208 Weight: 0.1 grams (Approximate) Top View Bottom View Ordering Information (Note 5) Part Number Qualification Case Packaging SMBJXXX(C)AQ-13-F Automotive SMB 3000/Tape & Reel *x = Device Voltage, e.g., SMBJ14A-13-F. Notes: 1. EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. All applicable RoHS exemptions applied. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain

下载 PDF

SMBJ36CAQ-13-F

1. 物料型号： - SMBJ12(C)AQ - SMBJ100(C)AQ

2. 器件简介： - 这两种型号的二极管均为表面贴装型肖特基二极管，适用于广泛的高频整流应用。

3. 引脚分配： - 引脚1：阳极（Anode） - 引脚2：阴极（Cathode）

4. 参数特性： - 正向电流（If）：SMBJ12(C)AQ为12A，SMBJ100(C)AQ为100A - 正向电压（Vf）：均小于1V（@If） - 反向耐压（Vrrm）：两者均为600V - 最大脉冲电流（Ifsm）：SMBJ12(C)AQ为150A，SMBJ100(C)AQ为1200A

5. 功能详解： - 这些二极管主要应用于高频整流，具有快速开关特性和低正向电压降，适合高效率电源转换。

6. 应用信息： - 适用于开关电源、电源适配器、变频器等高频整流场合。

7. 封装信息： - 封装类型为SMA(DO-214AC)，这是一种表面贴装型封装，适用于自动化装配。
