PSE Technology Corporation
SPECIFICATION FOR APPROVAL
CUSTOMER
100.000000 MHz
NOMINAL FREQUENCY
HOLDER TYPE

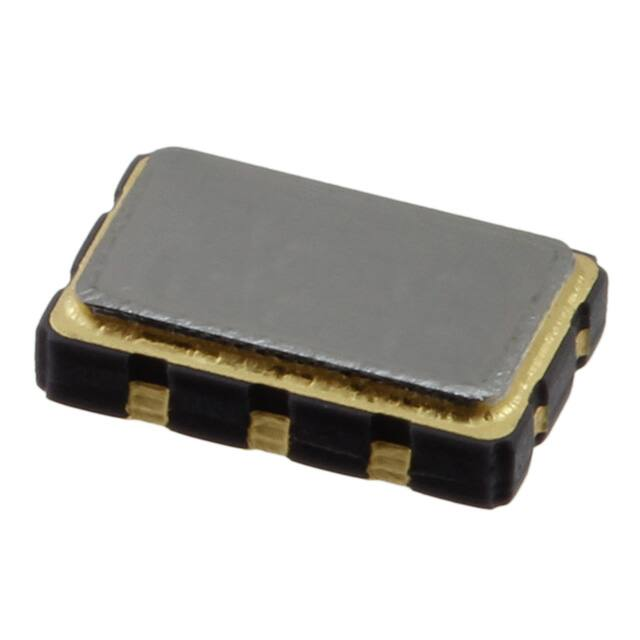

TYPE SQ SEAM SEALED CRYSTAL CLOCK OSCILLATOR
SPEC. NO. ( P/N )
SQA000002
CUSTOMER P/N
0
April 19, 2011
ISSUE DATE
A
VERSION
APPROVED
PREPARED
APPROVED BY CUSTOMER:
QA
AVL Status
Please return one copy with approval to PSE-TW
PSE Technology Corporation
*RoHS Exemption
No.2, Tzu-Chiang 5th Rd, Chung Li Industrial Park,
Chung Li City, Taoyuan County, Taiwan (R.O.C.)
TEL: 886-3-451-8888
FAX: 886-3-461-3865
http://www.saronix-ecera.com.tw
*HF-Halogen Free
E0-R-4-014 Rev. E
*REACH Compliant
Page i
TYPE SQ SEAM SEALED CRYSTAL CLOCK OSCILLATOR
SQA000002
VER. A
19-Apr-11
VERSION HISTORY
Version
No.
Version
Date
A
Apr.19,2011
E0-R-4-014 Rev. E
Customer Receipt
Date
Supplier Receipt
Date
Description
Notes
Initial Release
Page ii
TYPE SQ SEAM SEALED CRYSTAL CLOCK OSCILLATOR
SQA000002
VER. A
19-Apr-11
ELECTRICAL SPECIFICATIONS
SRe Part Number :
SQA000002
Item
Symbol
Specifications
Units
Nominal Frequency
Fo
100.000000
MHz
Frequency Stability
FT
± 50
ppm
Operating Temperature Range
TR
-40 to +85
℃
Supply Voltage
VCC
+2.5 ± 10.0%
V
Logic Type
LT
HCSL
Supply Current, Output Enabled
ICC/OE
40
mA
Max.
Supply Current, Output Disabled
ICC/OD
10
mA
Max.
Duty Cycle (Symmetry)
DC/SY
45 / 55
%
Measured 50% of Waveform
TR/TF
700
ps
Max. measured from Vol=0.175V to
Voh=0.525V
Output Voltage "0" Level
VOL
-0.150
V
Min. 0.0V Typ.
Output Voltage "1" Level
VOH
0.900
V
Max. 0.660V Min. 0.700V Typ.
Rise / Fall Time
Output Load
Rs=33Ω, Rp=50Ω,CL=2pF
Output Phase Jitter-PCIe Gen2
Jitter, Phase
2.5
Notes
**See note
Typ. In HCSL termination
ps RMS Max.
RMS(1-σ)
1
ps
Max. 12KHz ~ 20MHz Frequency Band
Pk-Pk
40
ps
Max. 100,000 Random Periods
-55°C to +125°C
℃
Jitter, Peak to Peak
Storage Temperature Range
※ This product doesn't include harmful substance that stipulated by SONY SS-00259 Level 1 and S-AT2-001 Level 1 standard. RoHS Compliant (Pb - Free).
**Stability includes all combinations of Operating Temperature, Load changes, rated Input (Supply) Voltage changes, Initial
Calibration Tolerance (25°C), Aging (5 years at 40°C Average Effective Ambient Temperature), Shock and Vibration.
OUTPUT ENABLE / DISABLE
Parameter
Input Voltage (Pin1), Output Enable
Input Voltage (Pin1), Output Disable (low power standby)
Min.
Typ.
Max.
0.7VDD
Units
V Or Open
0.3VDD
V Output is Hi-Z
Output Disable Delay
200
ns
Output Enable Delay
2
ms
E0-R-4-014 Rev. E
Notes
Page 1
TYPE SQ SEAM SEALED CRYSTAL CLOCK OSCILLATOR
SQA000002
VER. A
19-Apr-11
TEST CIRCUIT
33Ω
33Ω
OUTPUT WAVEFORM
E0-R-4-014 Rev. E
Page 2
TYPE SQ SEAM SEALED CRYSTAL CLOCK OSCILLATOR
SQA000002
VER. A
19-Apr-11
RELIABILITY SPECIFICATIONS
ENVIRONMENTAL:
a) THERMAL SHOCK: MIL-STD-883, Method 1011, Condition A
b) MOISTURE RESISTANCE: MIL-STD-883, Method 1004
c) VIBRATION: MIL-STD-883, Method 2007, Condition A
d) RESISTANCE TO SOLDERING HEAT: J-STD-020D Table 5-2 Pb-free devices
(except 2 cycles max)
e) HAZARDOUS SUBSTANCE: RoHS Compliant by Exemption
MECHANICAL:
a) SHOCK: MIL-STD-883, Method 2002, Condition B
b) SOLDERABILITY: JESD22-B102-D Method 2 (Preconditioning E)
c) TERMINAL STRENGTH: MIL-STD-883, Method 2004, Test Condition D
d) GROSS LEAK: MIL-STD-883, Method 1014, Condition C
e) FINE LEAK: MIL-STD-883, Method 1014, Condition A2, R1=2x10-8 atm cc/s
f) SOLVENT RESISTANCE: MIL-STD-202, Method 215
SUGGESTED IR REFLOW PROFILE
*As per IPC-JEDEC J-STD-020D
For soldering reflow profile and reliability test ratings go to: http://www.pericom.com/pdf/sre/reflow.pdf
E0-R-4-014 Rev. E
Page 3
TYPE SQ SEAM SEALED CRYSTAL CLOCK OSCILLATOR
SQA000002
VER. A
19-Apr-11
MARKING
Logo
Frequency Code
SRe10A H
E h ywwv
Dot denotes Pin#1
Date & Factory Code
E
h
y
ww
v
PIN #1 Connection
Model Series
Year Code (last
digit of year)
Week Code
Factory Code
MECHANICAL DRAWINGS ( Scale:None. Dimensions are in mm.)
Recommended Land Pattern*
E0-R-4-014 Rev. E
Pin
Function
1
OE
2
NC
3
VEE
4
OUTPUT
5
OUTPUT N
6
VCC
Page 4
TYPE SQ SEAM SEALED CRYSTAL CLOCK OSCILLATOR
SQA000002
VER. A
19-Apr-11
TAPE&REEL
1. 230mm minimum leafer which consist of carrier and/or tape followed by a minimum of
160mm of empty carrier tape sealed with cover tape.
2. 160mm minimum trailer of empty carrier tape sealed with cover tape.
E0-R-4-014 Rev. E
Page 5
TYPE SQ SEAM SEALED CRYSTAL CLOCK OSCILLATOR
SQA000002
VER. A
19-Apr-11
PACKING
Begin
Close
Start
End
500pcs-Product Tape
Inner Packing Carton
Blue Qualified Label
Storeroom Label
Storeroom Label
Storeroom Label
Deliver Packing Carton
(L29*W24*H30)
Green Qualified Label
E0-R-4-014 Rev. E
Page 6
