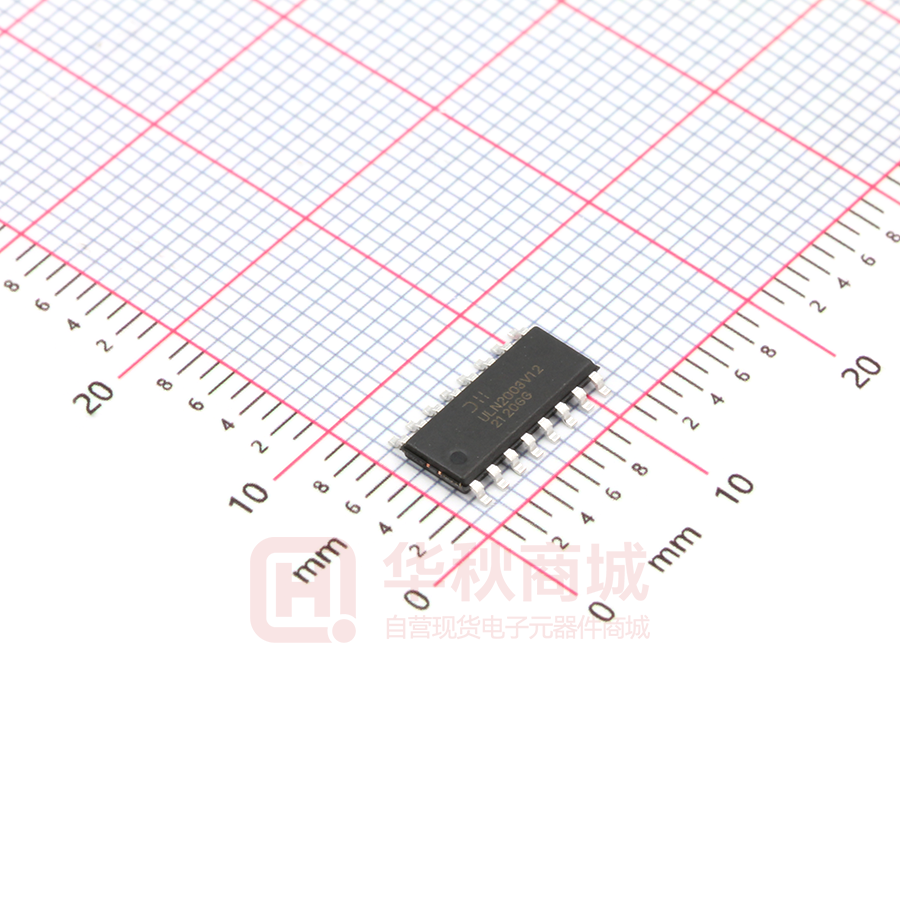

ULN2003V12S16-13

ULN2003V12, ULN2003F12 Multi-Channel Relay and Inductive Load Sink Driver Description Pin Assignments The ULN2003V12 and ULN2003F12 are multi-channel sink drivers comprised of 7-channel and 4-channel output stages respectively. The ULN2003V12 sink driver features 7 low output impedance drivers that minimize on-chip power dissipation and an actual low power upgrade version for popular ULN2003A family in real applications. When driving a typical 12V relay coil, a ULN2003V12 will dissipate 12 times lower power compared to ULN2003A. ULN2003F12 is a lower power variant benefiting from fewer channel integration and a better fit for applications requiring only 4-channel drivers, such as driving low voltage stepping motors, etc. ( Top View ) IN1 1 The ULN2003V12 and ULN2003F12 both support 3.3V to 5V CMOS logic input interface, thus making it compatible to a wide range of micro-controllers and other logic interfaces, and also feature an improved input interface that minimizes the input DC current drawn from the external drivers. The input RC snubber circuit integrated at ULN2003V12 and ULN2003F12 improves the performance in noisy operating conditions, and the internal pull-down resistor at input stage helps allow input logic to be tri-stated. IN2 2 IN3 3 16 OUT1 15 OUT2 14 OUT3 IN4 4 13 OUT4 IN5 5 12 OUT5 11 OUT6 10 OUT7 IN6 6 IN7 7 GND 8 COM 9 SO-16 / TSSOP-16 (Top View) As shown in the Functional Diagram, each output of the ULN2003V12 and ULN2003F12 features an internal free-wheeling diode connected in a common-cathode configuration at the COM pin which provides flexibility of increasing current sink capability through combining several adjacent channels in parallel. Under typical conditions the ULN2003V12 can support up to 1.0A of load current when all 7channels are connected in parallel. IN1 1 10 OUT1 IN2 2 9 OUT2 IN3 3 8 OUT3 IN4 4 7 OUT4 GND 5 6 COM U-DFN3030-10 Features Applications • • • • • • • • • • • • • • 4- and 7-Channel High Current Sink Drivers Supports up to 20V Output Pull-up Voltage Low Output VOL of 0.6V (Typical) with • 100mA (Typ.) Current Sink per Channel at 3.3V Logic Input • 140mA (Typ.) Current Sink per Channel at 5.0V Logic Input Compatible to 3.3V and 5.0V Micro-Controllers and Logic Interface Internal Free-wheeling Diodes for Inductive Kick-back Protection Input Pull-down Resistors Allows Tri-Stating the Input Driver Input RC-Snubber to Eliminate Spurious Operation in Noisy Environments ESD: 4kV HBM, 1kV CDM Available in 16-Pin SOIC, 16-Pin TSSOP and 10-Pin DFN3030 packages Available in “Green” Molding Compound (No Br, Sb)  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3) Notes: Inputs Compatible with Popular Logic Types Relay Driver Applications Stepping Motor Applications Logic Level Shifter 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
