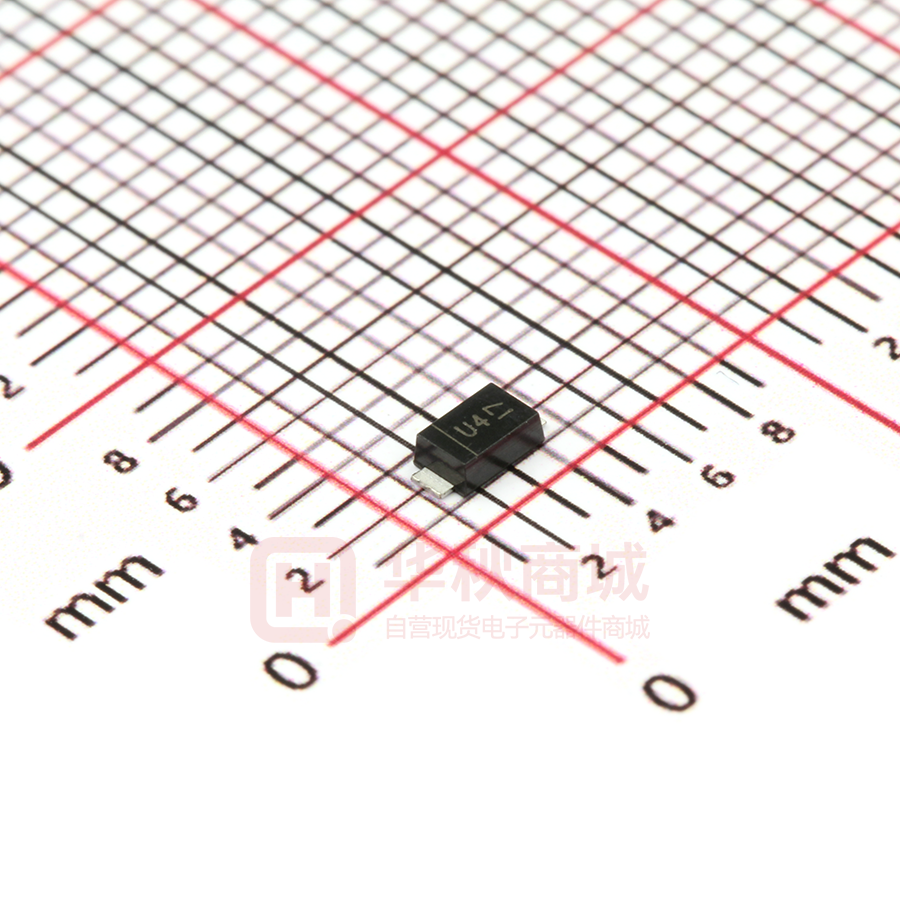

US1GWF-7

US1GWF Green 1.0A SURFACE MOUNT ULTRA-FAST RECTIFIER Product Summary (@ TA = +25°C) Features and Benefits VRRM (V) IO (A) VF Max (V) IR Max (µA) 400 1 1.25 1 NEW PRODUCT Description The US1GWF is a rectifier packaged in the SOD123F (Standard) package and is suited as a boost diode in power factor correction circuitry. For use in secondary rectification and freewheeling for ultrafast switching speed AC-AC and DC-DC converters in hightemperature conditions for consumer applications.         Low Profile, Small Form Factor Package Very Low Leakage Current Glass Passivate Die Construction Enhanced Ultrafast Recovery Times for High Efficiency Low Forward Voltage, Low Power Loss Lead-Free Finish & RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability Applications Mechanical Data       Flat Panel Display Switching Power Supplies/Chargers LED Lighting Freewheeling Diode     Case: SOD123F (Standard) Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Matte Tin Finish Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208 Polarity: Cathode Band Weight: 0.016 grams (Approximate) SOD123F (Standard) Schematic View Top View Ordering Information (Note 4) Part Number US1GWF-7 Notes: Qualification AEC-Q101 Case SOD123F (Standard) Packaging 3,000/Tape & Reel 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
