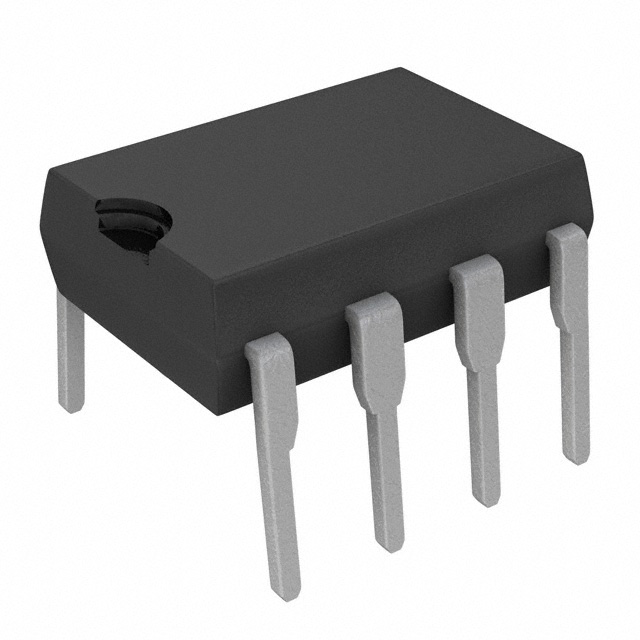

ZXBM5409Q-N-U

ZXBM5409Q BRUSHED DC MOTOR DRIVER WITH SERVO CONTROL Description Pin Assignments The ZXBM5409Q is a protected H-bridge driver designed specifically for manual automotive headlight-beam control and industrial servo control applications with DC-brush motor loads. The integrated fullbridge driver output stage is composed of high-current, low-RDSON H- (Top View) FB 1 8 REF HYST 2 7 RANGE OUT1 3 6 GND VDD 4 5 OUT2 bridge MOSFETs to maximize efficiency. To simplify the circuit design and minimize external components, the device integrates voltage and temperature-compensated internal references, amplifiers, and output H-bridge power switches with low RDSON. For system flexibility, the servo control forward and reverse hysteresis, deadband, and angle amplification are easily programmable by external resistors. PDIP-8 (Type A1) To help protect the motor coil, the ZXBM5409Q provides fault condition protection, such as RANGE input short to GND, short-tosupply voltage, or broken wires, by stopping the motor and disconnecting the output stage. In case of supply undervoltage and overvoltage, the device shuts down the output drive to help prevent overvoltage stress on the coil. The overcurrent protection monitors the output current and shuts down the outputs stage with periodic retry to help protect the coil from device burnout. Overtemperature shutdown provides thermal protection for the device. The ZXBM5409Q is available in industry standard PDIP-8 (Type A1) package and is qualified to AEC-Q100 Grade 1 and is automotive compliant supporting PPAPs. Features Applications • • • • • • • • • • • Servo DC Motor Drive Wide Operating Voltage Range: 8V to 18V Built-In H-Bridge with Low RDSON Resistance Automotive Headlight Position Servo Motor 8V/12V/18V Servo DC Motors Output Drive Current Capability of 0.8A (Peak Current of 1.6A) Fault Protection—RANGE Short to GND, Supply or Broken Wires Overvoltage and Undervoltage Shutdown Overcurrent Protection Thermal Protection Green Moulding in PDIP-8 (Type A1) • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) • Qualified to AEC-Q100 Standards for High Reliability • PPAP Capable (Note 4) Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
