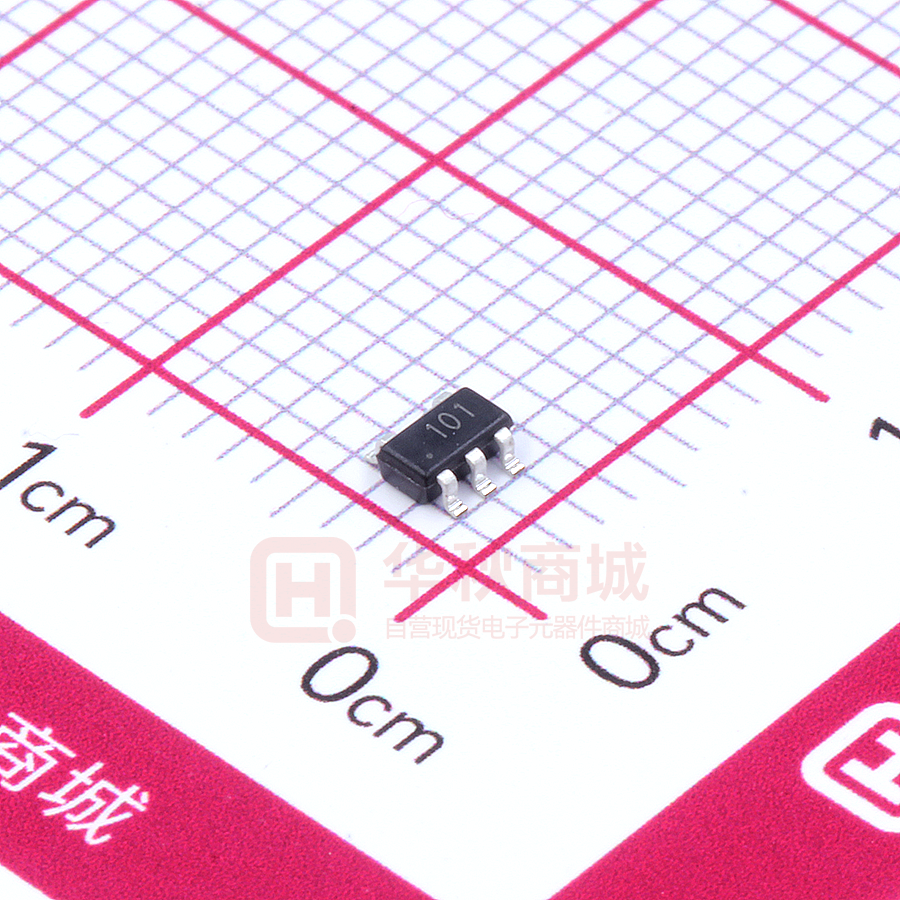

ZXCT1010E5TA

A Product Line of Diodes Incorporated ZXCT1010 ENHANCED HIGH-SIDE CURRENT MONITOR Description Pin Assignments The ZXCT1010 is a high side current sense monitor. Using this SOT25 Package Suffix - E5 device eliminates the need to disrupt the ground plane when sensing a load current. NC 1 It is an enhanced version of the ZXCT1009 offering reduced typical 5 VSENSE - output offset and improved accuracy at low sense voltage. GND 2 The wide input voltage range of 20V down to as low as 2.5V make it suitable for a range of applications. A minimum operating current of IOUT 3 just 4µA, combined with its SOT25 package make suitable for portable battery equipment. 4 VSENSE + Top View Features • Low cost, accurate high-side current sensing Applications • Output voltage scaling • Battery chargers • Up to 2.5V sense voltage • Smart battery packs • 2.5V to 20V supply voltage range • DC motor control • 300nA typical offset current • Over current monitor • 3.5µA quiescent current • Power management • 1% typical accuracy • Programmable current source • SOT25 package • Totally Lead-Free & Fully RoHS Compliant(Note 1 & 2) • Halogen and Antimony Free. “Green” Device(Note 3) Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
