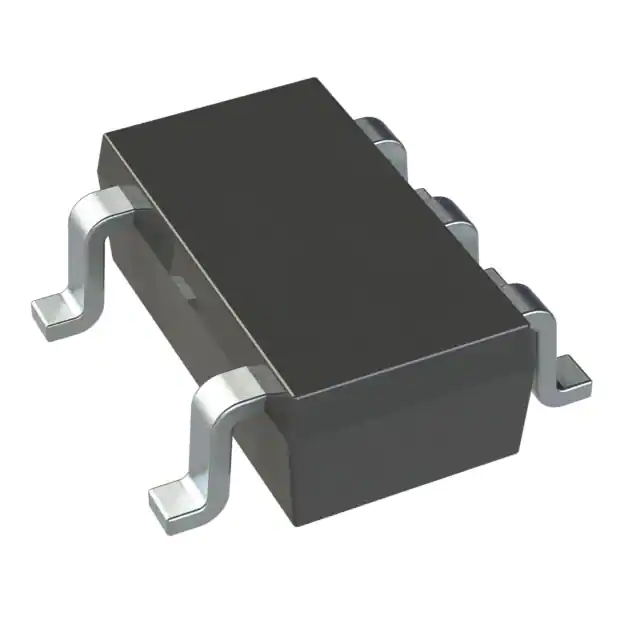

ZXCT1080QE5TA

A Product Line of Diodes Incorporated ZXCT1080Q/ ZXCT1081Q AUTOMOTIVE GRADE 60/40V HIGH-SIDE CURRENT MONITOR Description Pin Assignments The ZXCT1080Q and ZXCT1081Q are high side current sense monitors with a voltage output and a fixed gain of 10. Using this VCC device eliminates the need to disrupt the ground plane when sensing a load current. 1 5 S- GND 2 The wide input voltage range of 60V and 40V, respectively, down to as low as 3V make it suitable for a range of automotive applications OUT 3 with 60V and 40V load dump withstand capabilities. 74 S+ The separate supply pin (VCC) allows the device to continue functioning under short circuit conditions. The ZXCT1080Q and ZXCT1081Q have an extended ambient operating temperature range of -40°C to 125°C enabling it to be used in a wide range of automotive applications including. The ZXCT1080Q and ZXCT1081Q have been qualified to AEC-Q100 Grade 1 and are Automotive Grade supporting PPAPs. Features Applications   Accurate high-side current sensing ZXCT1080Q : 3V to 60V continuous high side voltage  Battery management  ZXCT1081Q : 3V to 40V continuous high side voltage  Over-current measurement  -40°C to +125°C temperature range  Output voltage scaling x10  4.5V to 12V VCC range    Automotive current measurement  Low quiescent current:  80μA supply pin  27μA IS+ Green Molding in SOT25  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3) Automotive Grade  Qualified to AEC-Q100 Standards for High Reliability  PPAP Capable (Note 4) Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
