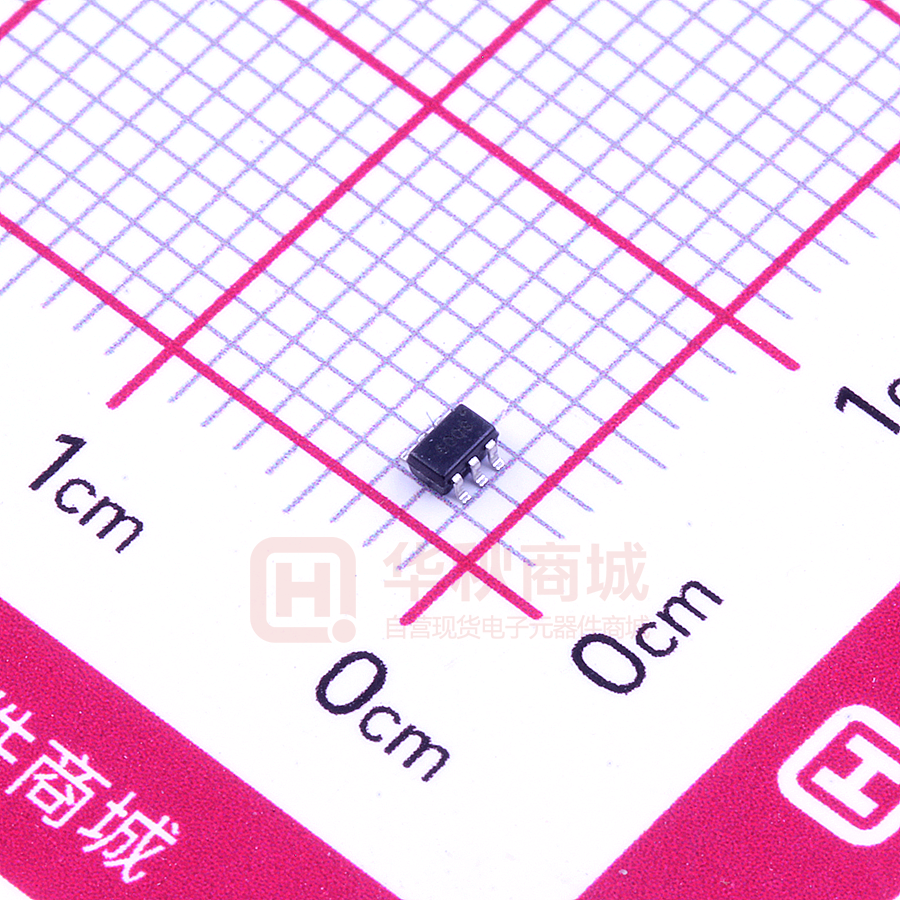

ZXGD3009DYTA

ZXGD3009DY 40V 1A GATE DRIVER IN SOT363 Description Features ZXGD3009DY is a high-speed, non-inverting single gate driver for switching MOSFETs. It can transfer up to 1A peak source/sink current into the gate for effective charging and discharging of the capacitive load.   This gate driver ensures rapid switching of the MOSFET to minimize power losses and distortion in high current switching applications. It can typically drive 500mA into the low gate impedance with just 10mA input from a controller. The turn-on and turn-off switching behavior of the MOSFET can be individually tailored to suit an application. In particular, by defining the switching characteristics appropriately, EMI and cross conduction problems can be reduced.        High-Gain Buffer with Typically 500mA Output from 10mA Input Emitter-Follower that is Rugged to Latch-Up/Shoot-Through Issues Wide Supply Voltage to Minimize On-Losses Separate Source and Sink Outputs for Independent Control of MOSFET Turn-On and Turn-Off Times Optimized Pin-Out to Simplify PCB Layout and Reduce Parasitic Trace Inductances Near-Zero Quiescent Supply Current Qualified to AEC-Q101 Standards for High Reliability Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Applications Mechanical Data Power MOSFET Gate Driving in:  Power Supplies  DC-DC Converters  Amplifier Output Stages      Case: SOT363 Case material: Molded Plastic, ―Green‖ Molding Compound. UL Flammability Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish - Matte Tin Plated Leads. Solderable per MIL-STD-202, Method 208 Weight: 0.018 grams (Approximate) SOT363 VCC SOURCE Not Internally Connected IN SINK VEE Internal Device Schematic Top View Pin-Out Top View Pin Name Pin Function VCC Supply Voltage High IN Driver Input VEE Supply Voltage Low SOURCE Source Current Output * SINK Sink Current Output * * Typically connect SOURCE & SINK together Ordering Information (Note 4) Part Number ZXGD3009DYTA Notes: Compliance AEC-Q101 Marking 3009 Reel Size (inches) 7 Tape Width (mm) 8 Quantity Per Reel 3,000 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green‖ products are defined as those which contain
