A Product Line of
Diodes Incorporated
ZXMN10A07F
100V N-CHANNEL ENHANCEMENT MODE MOSFET IN SOT23 PACKAGE
Product Summary
Features
BVDSS
RDS(ON) Max
100V
700mΩ @ VGS = 10V
900mΩ @ VGS = 6V
•
•
•
•
•
•
•
ID
TA = +25°C
(Note 6)
0.76A
0.67A
Low On-Resistance
Low Threshold
Fast Switching Speed
Low Gate Drive
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Description
This MOSFET has been designed to minimize the on-state resistance
(RDS(on)) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Applications
•
•
•
•
Mechanical Data
•
•
•
•
•
DC-DC Converters
Power Management Functions
Motor Control
Disconnect switches

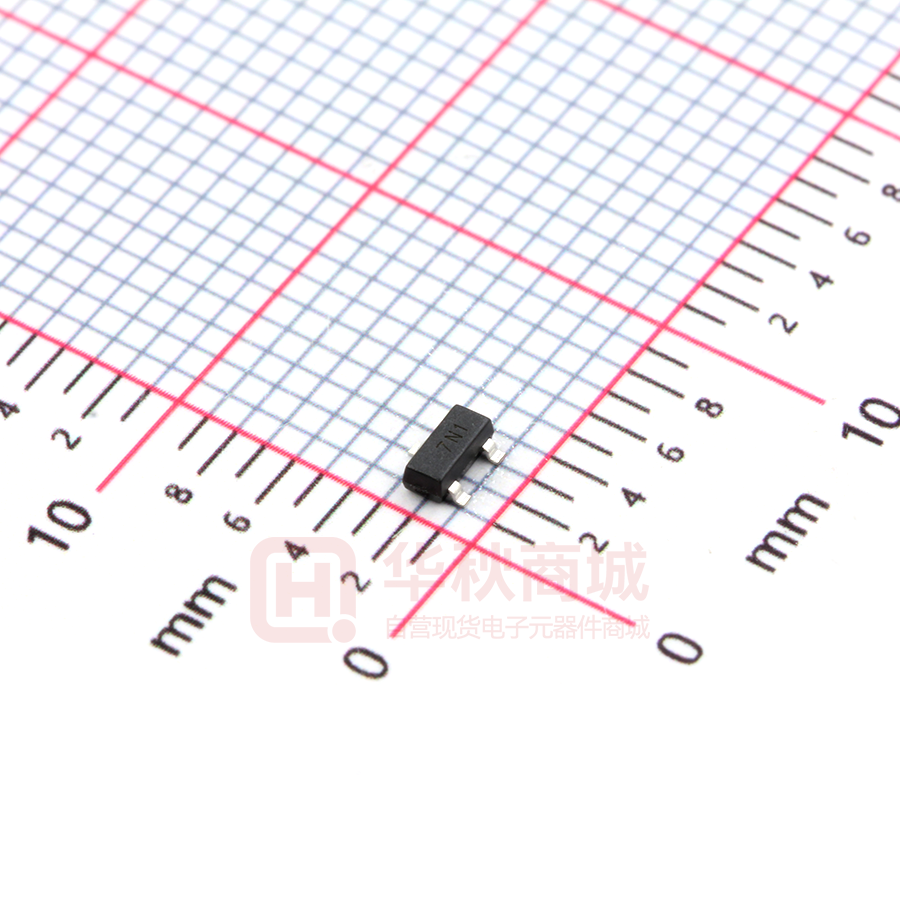

Case: SOT23
Case Material: Molded Plastic, “Green” Molding Compound.
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish
Weight: 0.008 grams (approximate)
UL
D
SOT23
S
G
D
S
Device Symbol
Top View
G
Top View
Pin-Out
Ordering Information (Note 4)
Part Number
ZXMN10A07FTA
Notes:
Marking
7N1
Reel size (inches)
7
Tape width (mm)
8
Quantity per reel
3,000
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen and Antimony free,"Green" and Lead-Free.
3. Halogen and Antimony free "Green” products are defined as those which contain
