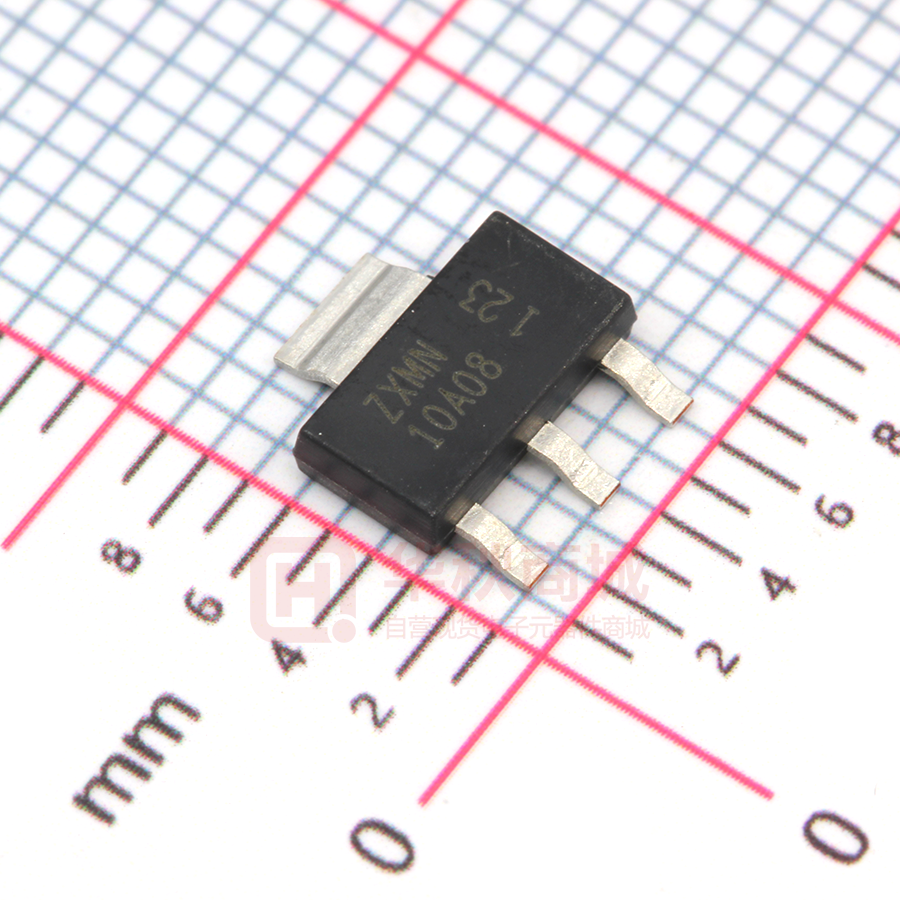

ZXMN10A08GTA

ZXMN10A08G Green 100V SOT223 N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary Mechanical Data ID V(BR)DSS RDS(on) TA = 25°C 250mΩ @ VGS= 10V 2.9A 300mΩ @ VGS= 6V 2.6A 100V • • • Case: SOT223 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Matte Tin Finish Weight: 0.112 grams (Approximate) Description Features and Benefits • • • • • • • • Low On-Resistance Fast Switching Speed Low Threshold Lead-Free Finish; RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability This new generation trench MOSFET from Zetex features a unique structure, combining the benefits of low on-resistance and fast switching, making it ideal for high-efficiency, power management applications. Applications • • • • DC-DC Converters Power Management Functions Disconnect Switches Motor Control SOT223 D G S Top View Pin Out - Top View Equivalent Circuit Ordering Information (Note 4) Part Number ZXMN10A08GTA Notes: Marking ZXMN10A08 Reel size (inches) 7 Tape width (mm) 12 Quantity per reel 1,000 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
